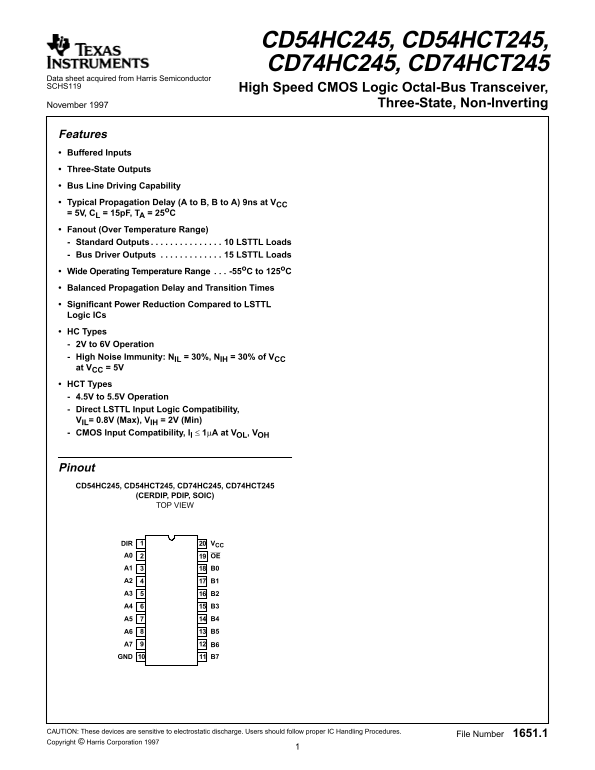

Page 1 Text Content
CD54HC245, CD54HCT245, CD74HC245, CD74HCT245
Data sheet acquired from Harris Semiconductor SCHS119 High Speed CMOS Logic Octal-Bus Transceiver,
November 1997 Three-State, Non-Inverting
Features Buffered Inputs [ /Title Three-State Outputs
(CD54 Bus Line Driving Capability HC245
Typical Propagation Delay (A to B, B to A) 9ns at VCC = 5V, CL = 15p F, TA = 25o C
Fanout (Over Temperature Range)
HCT24
Standard Outputs . . . . . . . . . . . . . . . 10 LSTTL Loads
5, Bus Driver Outputs . . . . . . . . . . . . . 15 LSTTL Loads CD74
Wide Operating Temperature Range . . . -55o C to 125o C
HC245
Balanced Propagation Delay and Transition Times Significant Power Reduction Compared to LSTTL
Logic ICs
HCT24
HC Types
2V to 6V Operation
/Sub-
High Noise Immunity: NIL = 30%, NIH = 30% of VCC
at VCC = 5V
(High
HCT Types
Speed
4.5V to 5.5V Operation Direct LSTTL Input Logic Compatibility, VIL= 0.8V (Max), VIH = 2V (Min) CMOS Input Compatibility, Il 1µA at VOL, VOH
Pinout CD54HC245, CD54HCT245, CD74HC245, CD74HCT245
(CERDIP, PDIP, SOIC) TOP VIEW
1DIR VCC A0 OE A1 B0 A2 B1 A3 B2 A4 B3
A7 B6 GND B7
CAUTION: These devices are sensitive to electrostatic discharge. Users should follow proper IC Handling Procedures.
File Number 1651.1
Copyright © Harris Corporation 1997
