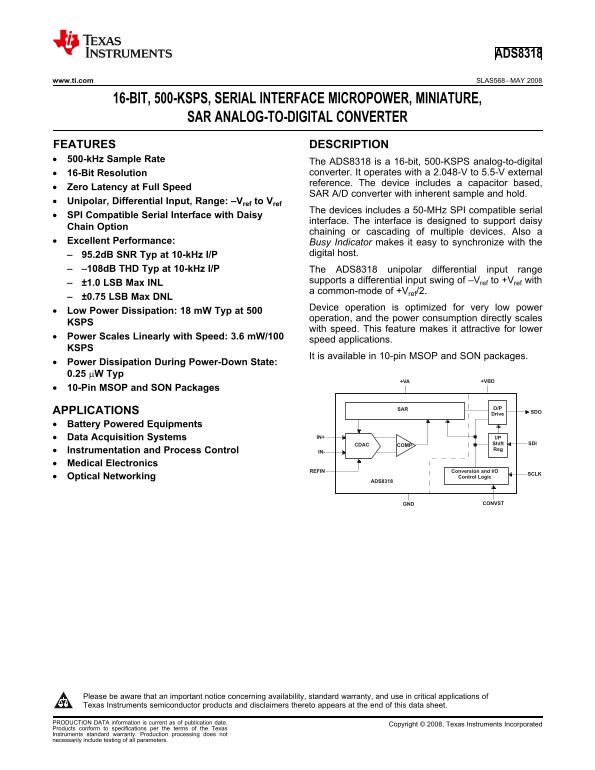

Texas Instruments - ADS8318 16-BIT, 500-KSPS, SERIAL INTERFACEMicroPower, Miniature, SAR Analog-to-Digital Converter Data Sheet User Manual
Summary
This advanced 16-bit SAR ADC is a high-speed, low-power analog-to-digital converter featuring 500 KSPS and differential input capability. Designed for critical applications like data acquisition, medical electronics, and process control, it ensures superior performance with minimal power draw. The manual provides comprehensive technical specifications, interface details, absolute ratings, and ordering information needed to integrate this reliable device into battery-powered and industrial systems.
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 31 |
| File Size | 1.70 MB |
| Published | May 31, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How can I connect multiple ADS8318 units?
The SPI interface supports a daisy chain configuration, allowing for easy option chaining or cascading of several devices.
What is the typical Signal-to-Noise Ratio (SNR) at 10 kHz?
The device offers a typical SNR of 95.2dB when measured with a 10-kHz differential input.
Is this ADC suitable for battery-powered applications?
Yes, it has low power dissipation, generating about 18 mW typical at 500 KSPS, and the consumption scales linearly with speed.
How should I store the ADS8318 to prevent damage?
Because of its limited built-in ESD protection, leads must be shorted or the device placed in conductive foam during handling and storage.
