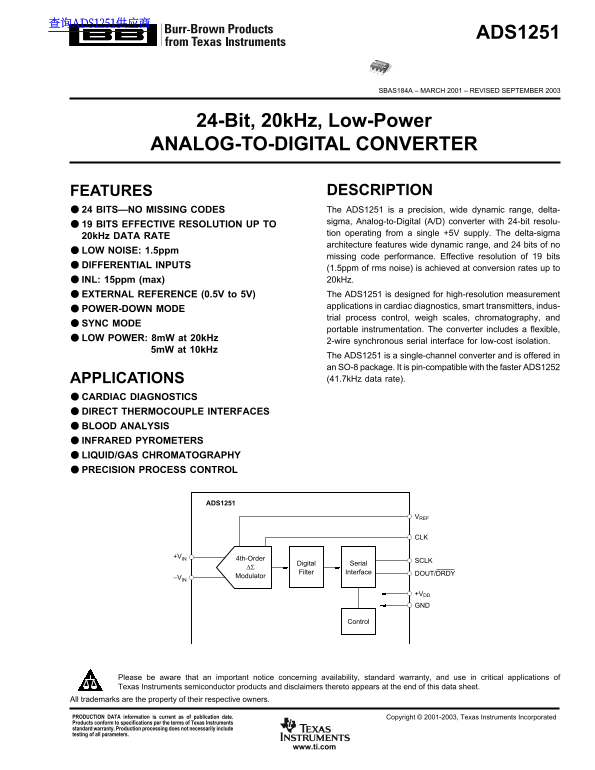

24-Bit, 20k Hz, Low-Power ANALOG-TO-DIGITAL CONVERTER
FEATURES DESCRIPTION 24 BITS—NO MISSING CODES The ADS1251 is a precision, wide dynamic range, delta- sigma, Analog-to-Digital (A/D) converter with 24-bit resolu-
19 BITS EFFECTIVE RESOLUTION UP TO
tion operating from a single +5V supply. The delta-sigma
20k Hz DATA RATE
architecture features wide dynamic range, and 24 bits of no
LOW NOISE: 1.5ppm
missing code performance. Effective resolution of 19 bits
DIFFERENTIAL INPUTS
(1.5ppm of rms noise) is achieved at conversion rates up to INL: 15ppm (max) 20k Hz. EXTERNAL REFERENCE (0.5V to 5V) The ADS1251 is designed for high-resolution measurement applications in cardiac diagnostics, smart transmitters, indus-
POWER-DOWN MODE
trial process control, weigh scales, chromatography, and
SYNC MODE
portable instrumentation. The converter includes a flexible,
LOW POWER: 8m W at 20k Hz
2-wire synchronous serial interface for low-cost isolation.
5m W at 10k Hz
The ADS1251 is a single-channel converter and is offered in an SO-8 package. It is pin-compatible with the faster ADS1252 (41.7k Hz data rate).APPLICATIONS
CARDIAC DIAGNOSTICS DIRECT THERMOCOUPLE INTERFACES BLOOD ANALYSIS INFRARED PYROMETERS LIQUID/GAS CHROMATOGRAPHY PRECISION PROCESS CONTROL
ADS1251
4th-Order
Digital Serial
Filter Interface DOUT/DRDY
–VIN Modulator
+VDD GND
Control
