The ADS1244 is a high-resolution, 24-bit delta-sigma Analog-to-Digital Converter (ADC) designed for demanding measurements in space-constrained environments. This resource provides comprehensive details on its advanced functionality, including excellent low-power consumption and robust rejection of both 50Hz and 60Hz signals via a simple serial interface. It is perfectly suited for engineers developing portable medical equipment, handheld scientific instrumentation, or multichannel processing systems that integrate easily with microcontrollers.

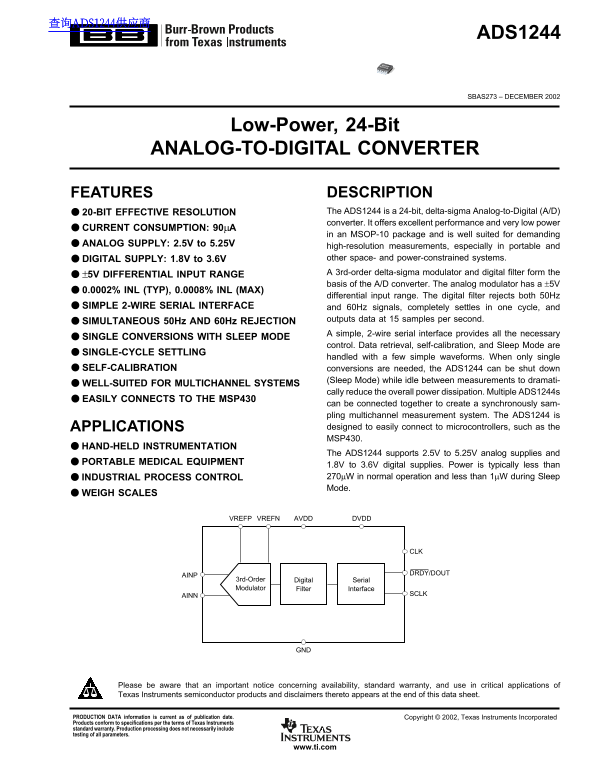

Page 1 Text Content
查询ADS1244供应商
ADS1244
ADS1244
SBAS273 – DECEMBER 2002
Low-Power, 24-Bit
ANALOG-TO-DIGITAL CONVERTER
FEATURES DESCRIPTION 20-BIT EFFECTIVE RESOLUTION The ADS1244 is a 24-bit, delta-sigma Analog-to-Digital (A/D) converter. It offers excellent performance and very low power
CURRENT CONSUMPTION: 90µA
in an MSOP-10 package and is well suited for demanding
ANALOG SUPPLY: 2.5V to 5.25V
high-resolution measurements, especially in portable and DIGITAL SUPPLY: 1.8V to 3.6V other space- and power-constrained systems. ±5V DIFFERENTIAL INPUT RANGE A 3rd-order delta-sigma modulator and digital filter form the basis of the A/D converter. The analog modulator has a ±5V
0.0002% INL (TYP), 0.0008% INL (MAX)
differential input range. The digital filter rejects both 50Hz
SIMPLE 2-WIRE SERIAL INTERFACE and 60Hz signals, completely settles in one cycle, and
outputs data at 15 samples per second.
SIMULTANEOUS 50Hz AND 60Hz REJECTION
A simple, 2-wire serial interface provides all the necessary
SINGLE CONVERSIONS WITH SLEEP MODE
control. Data retrieval, self-calibration, and Sleep Mode are
SINGLE-CYCLE SETTLING
handled with a few simple waveforms. When only single
SELF-CALIBRATION conversions are needed, the ADS1244 can be shut down
(Sleep Mode) while idle between measurements to dramati-
WELL-SUITED FOR MULTICHANNEL SYSTEMS
cally reduce the overall power dissipation. Multiple ADS1244s
EASILY CONNECTS TO THE MSP430
can be connected together to create a synchronously sam- pling multichannel measurement system. The ADS1244 is APPLICATIONS designed to easily connect to microcontrollers, such as the MSP430.
HAND-HELD INSTRUMENTATION
The ADS1244 supports 2.5V to 5.25V analog supplies and
PORTABLE MEDICAL EQUIPMENT
1.8V to 3.6V digital supplies. Power is typically less than INDUSTRIAL PROCESS CONTROL 270µW in normal operation and less than 1µW during Sleep Mode.
WEIGH SCALES
VREFP VREFN AVDD DVDD
DRDY/DOUT
3rd-Order Digital Serial Modulator Filter Interface
AINN SCLK
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date. Copyright © 2002, Texas Instruments Incorporated Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.
www.ti.com
Page Summary Contents For Texas Instruments ADS1244 Low-Power, 24-Bit Analog-to-Digital Converter Data Sheet User Manual
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 19 |
| File Size | 285.81 KB |
| Published | June 20, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What types of systems is the ADS1244 ideally suited for?
It is well-suited for demanding applications in portable medical equipment and industrial process control where low power consumption is crucial.
Does the converter reject household AC mains frequencies (50Hz or 60Hz)?
Yes, the digital filter rejects both 50Hz and 60Hz signals simultaneously, settling completely within one cycle.
How can I reduce power dissipation when measuring intermittently?
Utilize Sleep Mode for single-cycle settling when only single self-calibration conversions are needed between measurements.
What microcontrollers or system architecture is the ADS1244 compatible with?
The device easily connects to microcontrollers like the MSP430 and can connect multiple units for multichannel measurement systems.
