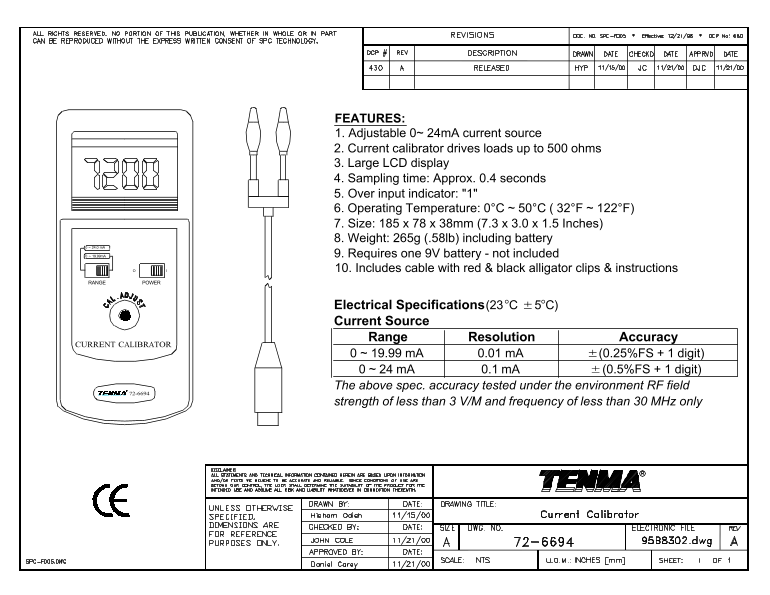

FEATURES: 1. Adjustable 0~ 24m A current source 2. Current calibrator drives loads up to 500 ohms 3. Large LCD display 4. Sampling time: Approx. 0.4 seconds 5. Over input indicator: "1" 6. Operating Temperature: 0°C ~ 50°C ( 32°F ~ 122°F) 7. Size: 185 x 78 x 38mm (7.3 x 3.0 x 1.5 Inches) 8. Weight: 265g (.58lb) including battery
0 ~ 19.99m A 9. Requires one 9V battery - not included
10. Includes cable with red & black alligator clips & instructions
RANGE POWER
Electrical Specifications (23 °C ±5°C) Current Source Range Resolution Accuracy
CURRENT CALIBRATOR
0 ~ 19.99 m A 0.01 m A ±(0.25%FS + 1 digit) 0 ~ 24 m A 0.1 m A ±(0.5%FS + 1 digit) The above spec. accuracy tested under the environment RF field
strength of less than 3 V/M and frequency of less than 30 MHz only
