SU RG E PROTEC TI E DE CE

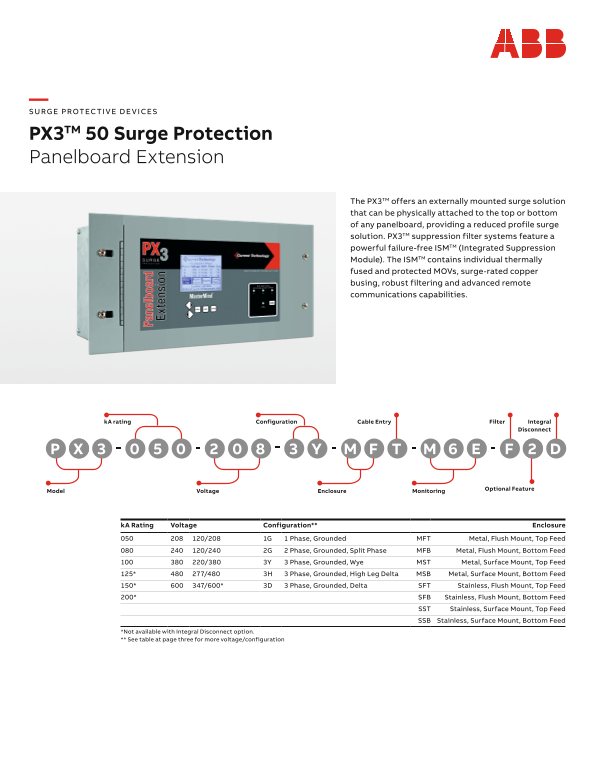

PX3TM 50 Surge Protection Panelboard Extension
The PX3TM offers an externally mounted surge solution that can be physically attached to the top or bottom of any panelboard, providing a reduced profile surge solution. PX3TM suppression filter systems feature a powerful failure-free ISMTM (Integrated Suppression Module). The ISMTM contains individual thermally fused and protected MOVs, surge-rated copper busing, robust filtering and advanced remote communications capabilities.
Configurationk A rating Cable Entry Filter Integral
Disconnect
TP 2M
Optional Feature Enclosure
Model Voltage Monitoring
k A Rating Voltage Configuration** Enclosure
120/208 1G 1 Phase, Grounded MFT Metal, Flush Mount, Top Feed 120/240 2G 2 Phase, Grounded, Split Phase MFB Metal, Flush Mount, Bottom Feed 220/380 3Y 3 Phase, Grounded, Wye MST Metal, Surface Mount, Top Feed
125* 277/480 3H 3 Phase, Grounded, High Leg Delta MSB Metal, Surface Mount, Bottom Feed 150* 347/600* 3D 3 Phase, Grounded, Delta SFT Stainless, Flush Mount, Top Feed 200* SFB Stainless, Flush Mount, Bottom Feed
SST Stainless, Surface Mount, Top Feed SSB Stainless, Surface Mount, Bottom Feed
*Not available with Integral Disconnect option. ** See table at page three for more voltage/configuration
