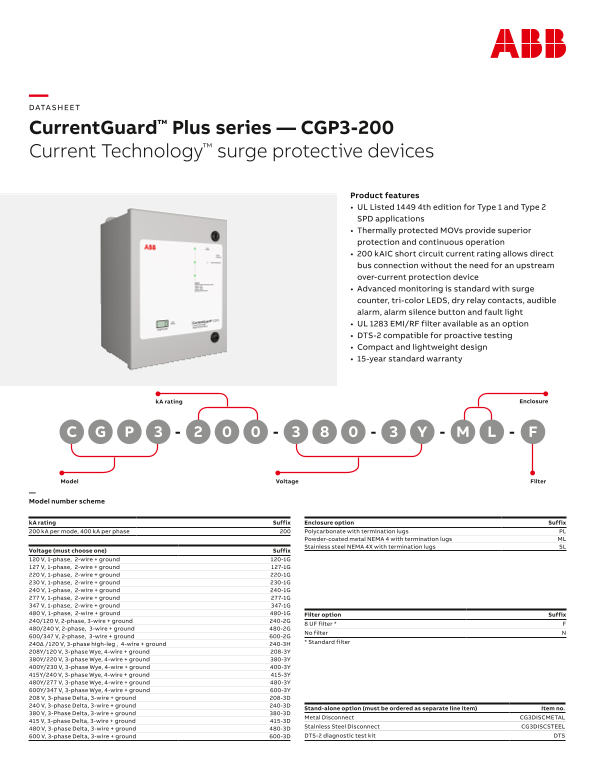

Current Guard™ Plus series — CGP3-200 Current Technology™ surge protective devices
Product features • UL Listed 1449 4th edition for Type 1 and Type 2 SPD applications • Thermally protected MOVs provide superior protection and continuous operation • 200 k AIC short circuit current rating allows direct bus connection without the need for an upstream over-current protection device • Advanced monitoring is standard with surge counter, tri-color LEDS, dry relay contacts, audible alarm, alarm silence button and fault light • UL 1283 EMI/RF filter available as an option • DTS-2 compatible for proactive testing • Compact and lightweight design • 15-year standard warranty
k A rating Enclosure
Y002GC M- F-3
Model Voltage Filter
Model number scheme
k A rating Suffix Enclosure option Suffix 200 k A per mode, 400 k A per phase Polycarbonate with termination lugs PL
Powder-coated metal NEMA 4 with termination lugs ML Stainless steel NEMA 4X with termination lugs SL
Voltage (must choose one) Suffix 120 V, 1-phase, 2-wire + ground 120-1G 127 V, 1-phase, 2-wire + ground 127-1G 220 V, 1-phase, 2-wire + ground 220-1G 230 V, 1-phase, 2-wire + ground 230-1G 240 V, 1-phase, 2-wire + ground 240-1G 277 V, 1-phase, 2-wire + ground 277-1G 347 V, 1-phase, 2-wire + ground 347-1G 480 V, 1-phase, 2-wire + ground 480-1G Filter option Suffix 240/120 V, 2-phase, 3-wire + ground 240-2G
8 UF filter * F
480/240 V, 2-phase, 3-wire + ground 480-2G
No filter
600/347 V, 2-phase, 3-wire + ground 600-2G
* Standard filter
240Δ /120 V, 3-phase high-leg , 4-wire + ground 240-3H 208Y/120 V, 3-phase Wye, 4-wire + ground 208-3Y 380Y/220 V, 3-phase Wye, 4-wire + ground 380-3Y 400Y/230 V, 3-phase Wye, 4-wire + ground 400-3Y 415Y/240 V, 3-phase Wye, 4-wire + ground 415-3Y 480Y/277 V, 3-phase Wye, 4-wire + ground 480-3Y 600Y/347 V, 3-phase Wye, 4-wire + ground 600-3Y 208 V, 3-phase Delta, 3-wire + ground 208-3D 240 V, 3-phase Delta, 3-wire + ground 240-3D
Stand-alone option (must be ordered as separate line item) Item no.
380 V, 3-Phase Delta, 3-wire + ground 380-3D
Metal Disconnect CG3DISCMETAL
415 V, 3-phase Delta, 3-wire + ground 415-3D
Stainless Steel Disconnect CG3DISCSTEEL
480 V, 3-phase Delta, 3-wire + ground 480-3D
600 V, 3-phase Delta, 3-wire + ground 600-3D DTS-2 diagnostic test kit DTS
