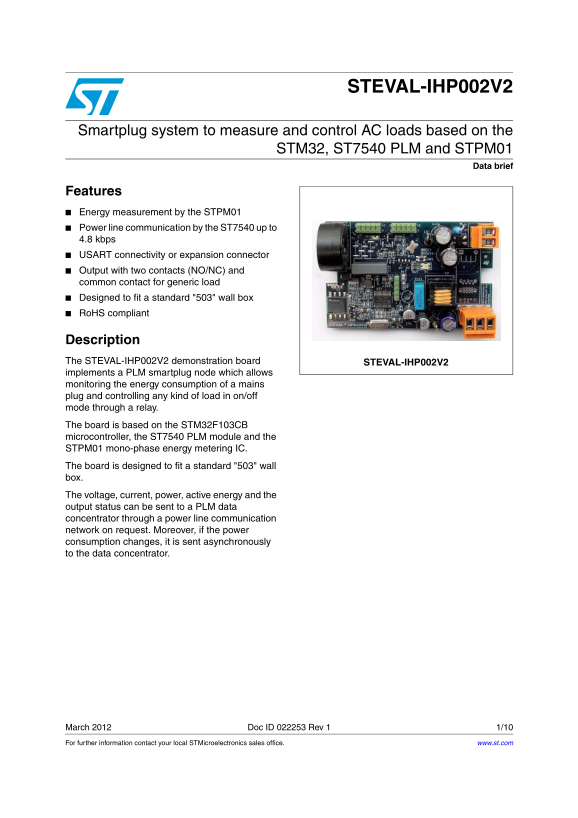

ST STEVAL-IHP002V2 Smartplug System User Manual - STM32 Based AC Load Measurement & Control
Summary
This smartplug demonstration board is designed for implementing advanced load management and energy monitoring systems. Utilizing an STM32 microcontroller, it features integrated power line communication (PLC) via the ST7540 module for transmitting real-time data, including voltage, current, and active energy consumption. The unit can control external AC loads using a relay contactor. This manual provides comprehensive technical schematics details for developers creating smart grid or industrial automation solutions who require precise energy metering and robust remote connectivity in a standard wall box format.
Manual Details
| Brand | Measurement |
|---|---|
| Pages | 10 |
| File Size | 282.02 KB |
| Published | June 03, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What features does the STEVAL-IHP002V2 monitor and control?
It monitors energy consumption (voltage, current, power, active energy) and controls any load in on/off mode via a relay.
How is communication handled to an external data concentrator?
Data can be sent via a power line communication network through the ST7540 module, or asynchronously when consumption changes.
What physical dimensions does this board fit into?
The board is specifically designed to fit a standard "503" wall box.
Can I expand connectivity beyond PLM?
Yes, it features both USART connectivity and an expansion connector for other interfaces.
