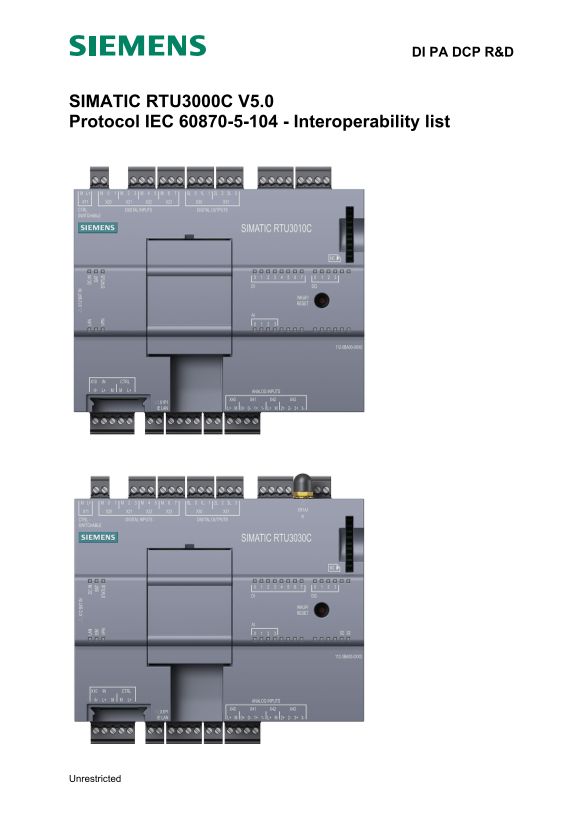

DI PA DCP R&D

SIMATIC RTU3000C V5.0 Protocol IEC 60870-5-104 - Interoperability list

Unrestricted

Page Summary Contents For Siemens SIMATIC RTU3000C V5.0 - IEC 60870-5-104 Protocol, V5.0 interoperability list for SIMATIC RTU3000C V5.0

Page 1 DI PA DCP R&D SIMATIC RTU3000C V5.0 Protocol IEC 60870-5-104 - Interoperability list Unrestricted
Page 2 Interoperability list DI PA DCP R&D Unrestricted SIMATIC RTU3000C IEC 60870-5-104 V5.0 Page 2 of 15 ©SIEMENS AG 2022
Page 3 Interoperability list DI PA DCP R&D Index 1 IEC870-5-104 ................................................................................................................................... 4 1.1 G...
Page 4 Interoperability list DI PA DCP R&D 1 IEC870-5-104 This documentation is used to match the functionality required/demanded for communication of PCS7 Telecontrol with PLC, RTU or IED devices based ...
Page 5 Interoperability list DI PA DCP R&D 1.4 Physical layer (network-specific parameters; mark each supported interface and data rates “X“) Transmission rate Automatic detection of transmission rate (M...
Page 6 Interoperability list DI PA DCP R&D 1.6 Application layer Transmission mode for application data Mode 1 (least significant octet first), as defined in IEC 870-5-4, chapter 4.10, is used exclusivel...
Page 7 Interoperability list DI PA DCP R&D <18> := Packed start events of protection equipment with time tag M_EP_TB_1 <19> := Packed output circuit information of protection equipment with t...
Page 8 Interoperability list DI PA DCP R&D System information in monitoring direction (station-specific parameters; mark “X“ if supported <70> := End of initialization M_EI_NA_1 System information ...
Page 9 Interoperability list DI PA DCP R&D Type Identifier and Cause of Transmission assignments (station-specific parameters) Empty box = combination of Type Identifier and Transmission Assignments are ...
Page 10 Interoperability list DI PA DCP R&D Type Cause of transmission Identification 1 2 3 4 5 6 7 8 9 10 11 12 13 up to up to 44 45 46 47 <58> C_SC_TA_1 <59> C_DC_TA_1 <60> C_RC_TA_1 &...
Page 11 Interoperability list DI PA DCP R&D 1.7 Basic application functions Station initialization (station-specific parameters; mark “X“ if function is supported Remote initialization Cyclic data transmi...
Page 12 Interoperability list DI PA DCP R&D Station interrogation (station-specific parameter; mark “X“ if function is supported in standard direction, or “R“ if supported in reverse direction, or “B“ if ...
Page 13 Interoperability list DI PA DCP R&D Transmission of integrated totals (station- or object-specific parameter; mark “X“ if function is supported in standard direction, or ”R“ if supported in revers...
Page 14 Interoperability list DI PA DCP R&D File transfer (station-specific parameter, mark each supported function ‘X’) File transfer in monitor direction Transparent file Transmission of disturbance dat...
Page 15 Interoperability list DI PA DCP R&D Maximum number of outstanding I format APDUs k and latest acknowledge APDUs (w) Parameter Default Value Remarks Selected value (Default) k 12 APDUs Maximum diff...
