SHARP LQ104S1DG61 Data Sheet

Summary

Discover this high-performance color TFT-LCD module, designed for general multimedia and consumer electronic applications. Featuring a bright 26" (10.4") display with an 800x600 pixel format and wide viewing angles, it utilizes advanced amorphous silicon technology and offers exceptional clarity. The comprehensive manual provides engineering details, including full pinout diagrams, detailed operational specifications, and rigorous testing parameters (temperature, vibration, EMI), ensuring proper integration into your product design. Ideal for developers building reliable digital displays.

📄 Preview ‹ PAGE OF 19 ›

‹

›

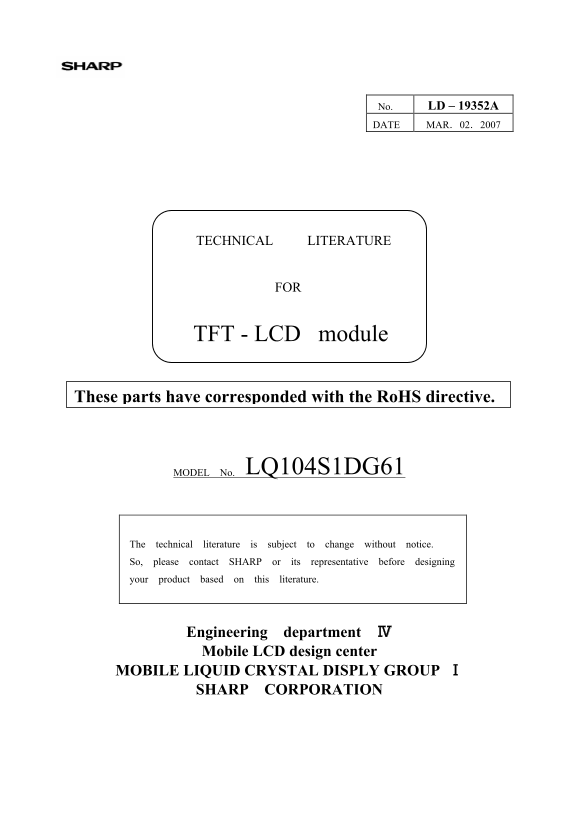

Page 1 Text Content

No. LD – 19352A DATE MAR．02．2007

TECHNICAL LITERATURE

TFT - LCD module

These parts have corresponded with the Ro HS directive.

MODEL No. LQ104S1DG61

The technical literature is subject to change without notice. So, please contact SHARP or its representative before designing your product based on this literature.

Engineering department Ⅳ Mobile LCD design center

MOBILE LIQUID CRYSTAL DISPLY GROUP Ⅰ

SHARP CORPORATION

Page Summary Contents For SHARP LQ104S1DG61 Data Sheet

Page 1 No. LD – 19352A DATE MAR．02．2007 TECHNICAL LITERATURE TFT - LCD module These parts have corresponded with the Ro HS directive. MODEL No. LQ104S1DG61 The technical literature is subject to change witho...

Page 2 RECORDS OF REVISION LQ104S1LG61 SPEC No. DATE REVISED SUMMARY NOTE No. PAGE LD-19352A MAR.02.2007 - - - 1 st Issue

Page 3 LD19352A-1 1. Application This technical literature applies to color TFT-LCD module, LQ104S1DG61 These technical literature sheets are the proprietary product of SHARP CORPORATION(”SHARP) and include ...

Page 4 LD19352A-2 3. Outline specification. Parameter Specifications Unit Display size 26 (10.4") Diagonal cm Active area 211.2(H)×158.4(V) mm Pixel format 800(H)×600(V) pixel (1 pixel=R+G+B dots) - Num...

Page 5 LD19352A-3 4. Input Terminals CN1 Corresponding connector: DF9-41S-1V, DF9A-41S-1V, DF9B-41S-1V, DF9M-41S-1V (Hirose Electric Co., Ltd.) Pin No. Symbol Function Remark 1 GND - 2 CK Clock signal for sa...

Page 6 LD19352A-4 [Note 1],[Note 2] R/L = High, U/D = Low R/L = Low, U/D = Low R/L = High, U/D = High R/L = Low, U/D = High 4-3. Backlight driving CN2 ,CN3 Used connector : BHR-02(8.0)VS-1N (JST) Correspondi...

Page 7 LD19352A-5 [Note2] Vcc-turn-on conditions VCC 0.9VCC VCC 0.9VCC 0<t1≦15ms 2.7V Signal Signal 0<t2≦10ms 0<t3≦100ms 0<t4≦1s t5>200ms Vcc-dip conditions 1) 2.5V≦Vcc td≦10ms 2.5V 2) Vcc<...

Page 8 LD19352A-6 ontrol IC VS VS HS HS ENAB ENAB CK CK ＶＣＣ To the inside of a module I/F connector

Page 9 LD19352A-7 7-2. Backlight driving The backlight system is an edge-lighting type with double CCFT (Cold Cathode Fluorescent Tube). The characteristics of single lamp are shown in the following table. (...

Page 10 LD19352A-8 8. Timing Characteristics of input signals Timing diagrams of input signal are shown in Fig.2. 8-1. Timing characteristics Parameter Symbol Min. Typ. Max. Unit Remark Clock Frequency 1/Tc 3...

Page 11 LD A- LD19352A-1 Horizontal THp Sync.signal 2.1V 0.8V 0.8V 0.8V (Hsync) THc Tc *Only when enable terminal is fixed “LOW” Tch Tcl Th 2.1V Clock signal (CK) 0.8V 0.8V 0.8V Tds Tdh Number of H-data line ...

Page 12 LD19352A-10 9. Input Signals, Basic Display Colors and Gray Scale of Each Color Colors & Data signal Gray scale Gray Scale R0 R1 R2 R3 R4 R5 G0 G1 G2 G3 G4 G5 B0 B1 B2 B3 B4 B5 Black － 0 0 0 0 0 0...

Page 13 LD19352A-11 10. Optical Characteristics Ta=25℃, Vcc=+3.3V / +5.0V Parameter Symbol Condition Min. Typ. Max. Unit Remark Viewing Horizontal θ21, θ22 CR>10 60 70 - Deg. [Note1] angle Vertical θ11 35 ...

Page 14 LD19352A-12 [Note1] Definitions of viewing angle range: orm al line Ph ot od et ec to r o ut pu (r el at iv Va lu e) o’clock irection [Note2] Definition of contrast ratio: The contrast ratio is define...

Page 15 LD19352A-13 12.Handling Precautions a) Be sure to turn off the power supply when inserting or disconnecting the cable. b) Be sure to design the cabinet so that the module can be installed without any ...

Page 16 LD19352A-14 13. Packing form Product countries / Areas JAPAN TAIWAN CHINA Piling number of cartons 6 Package quantity in one carton 10pcs Carton size 395(L)×310(W)×270(H) Total mass of one carton fill...

Page 17 LD19352A-15 15.Others15-1 Lot No. Label: Model number LQ DG6 Product countries / Areas Barcode Barcode Japan MADE IN JAPAN Taiwan MADE IN TAIWAN MADE IN CHINA China Lot Number． Serial No. (5 digits) A...
