SHARP LD-19164A Data Sheet

Summary

Discover the LQ104S1LG61 color TFT-LCD module, a high-performance active matrix display ideal for multimedia and general consumer electronics applications. This low-reflection panel offers 800x600 resolution with vibrant colors and super-high brightness (420cd/m²). The accompanying technical manual is essential reading for system designers and engineers, providing comprehensive documentation on pixel configuration, precise electrical input terminals (LVDS, +3.3V/+5.0V), mechanical dimensions, and critical operational guidelines, including temperature and vibration testing parameters. Use this resource to reliably integrate professional-grade display technology into your next embedded device.

📄 Preview ‹ PAGE OF 20 ›

‹

›

Page 1 Text Content

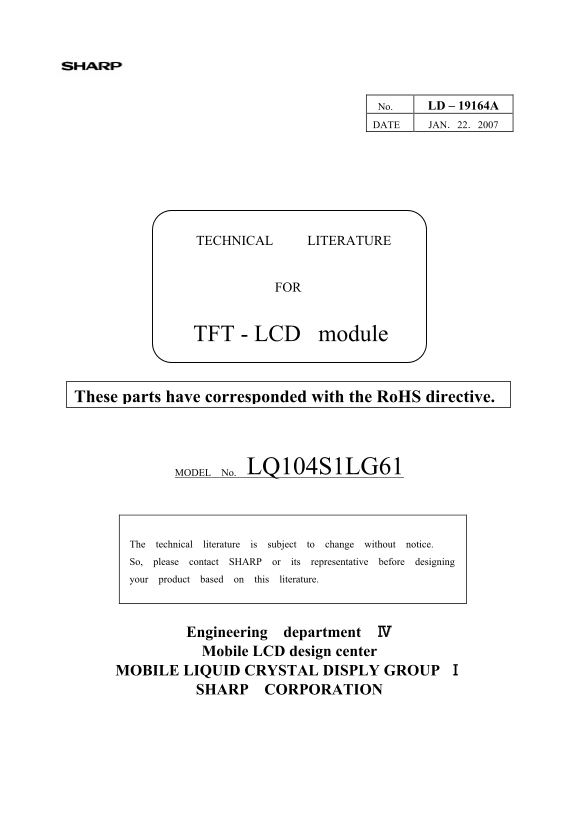

No. LD – 19164A DATE JAN．22．2007

TECHNICAL LITERATURE

TFT - LCD module

These parts have corresponded with the Ro HS directive.

MODEL No. LQ104S1LG61

The technical literature is subject to change without notice. So, please contact SHARP or its representative before designing your product based on this literature.

Engineering department Ⅳ Mobile LCD design center

MOBILE LIQUID CRYSTAL DISPLY GROUP Ⅰ

SHARP CORPORATION

Page Summary Contents For SHARP LD-19164A Data Sheet

Page 1 No. LD – 19164A DATE JAN．22．2007 TECHNICAL LITERATURE TFT - LCD module These parts have corresponded with the Ro HS directive. MODEL No. LQ104S1LG61 The technical literature is subject to change witho...

Page 2 RECORDS OF REVISION LQ104S1LG61 SPEC No. DATE REVISED SUMMARY NOTE No. PAGE LD-19164A JAN.22.2007 - - - 1 st Issue

Page 3 LD19164A-1 1. Application This technical literature applies to color TFT-LCD module, LQ104S1LG61 These technical literature sheets are the proprietary product of SHARP CORPORATION(”SHARP) and include ...

Page 4 LD19164A-2 3. Outline specification. Parameter Specifications Unit Display size 26 (10.4") Diagonal cm Active area 211.2(H)×158.4(V) mm Pixel format 800(H)×600(V) pixel (1 pixel=R+G+B dots) - Num...

Page 5 LD19164A-3 4. Input Terminals 4-1. TFT-LCD panel driving CN1 (LVDS signals , +3.3V / +5.0V DC power supply and Contorol signal) Corresponding connector:FI-SE20M (JAE) or FI-S20S (JAE) Pin No. Symbol F...

Page 6 LD19164A-4 [Note 1],[Note 2] R/L = High, U/D = Low R/L = Low, U/D = Low R/L = High, U/D = High R/L = Low, U/D = High

Page 7 LD19164A-5 LD 19164A -5 4-2 LVDS Interface block diagram Using receiver：Single LVDS interface, which equals THC63LVDF64A(THine),contained in a control IC Corresponding Transmitter：DS90C363, DS90C363A,...

Page 8 LD19164A-6 4-3. Backlight driving CN2 ,CN3 Used connector : BHR-02(8.0)VS-1N (JST) Corresponding connector : SM02(8.0)B-BHS-1-TB or -1N-TB (JST) Pin no. symbol function Color of FL cable 1 VHIGH Power...

Page 9 LD19164A-7 7. Electrical Characteristics 7-1. TFT-LCD panel driving Ta=25 o C Parameter Symbol Min. Typ. Max. Unit Remark Vcc=+3.3V Icc - 300 450 m A Current dissipation [Note1] Vcc=+5.0V Icc - 200 30...

Page 10 LD19164A-8 7-2. Backlight driving The backlight system is an edge-lighting type with double CCFT (Cold Cathode Fluorescent Tube). The characteristics of single lamp are shown in the following table. (...

Page 11 LD19164A-9 8. Timing characteristics of input signals 8-1. Timing characteristics (These are specified at the digital inputs/outputs of LVDS transmitter/receiver.) ENAB Sync D E FC (Vertical timing) I...

Page 12 LD19164A-10 (Hsync-ENAB Phase difference) Hsync Item Min. Typ. Max. Unit Remark Hsync-ENAB Phase difference (THN) 0 - THA-THC clock 8-2 Display position Item Standards Beginning Ending Unit Remark Hor...

Page 13 LD19164A-11 9. Input Signals, Basic Display Colors and Gray Scale of Each Color Colors & Data signal Gray scale Gray Scale R0 R1 R2 R3 R4 R5 G0 G1 G2 G3 G4 G5 B0 B1 B2 B3 B4 B5 Black － 0 0 0 0 0 0...

Page 14 LD19164A-12 10. Optical Characteristics Ta=25℃, Vcc=+3.3V / +5.0V Parameter Symbol Condition Min. Typ. Max. Unit Remark Viewing Horizontal θ21, θ22 CR>10 60 70 - Deg. [Note1] angle Vertical θ11 35 ...

Page 15 LD19164A-13 [Note1] Definitions of viewing angle range: orm al line Ph ot od et ec to r o ut pu (r el at iv Va lu e) o’clock irection [Note2] Definition of contrast ratio: The contrast ratio is define...

Page 16 LD19164A-14 12.Handling Precautions a) Be sure to turn off the power supply when inserting or disconnecting the cable. b) Be sure to design the cabinet so that the module can be installed without any ...

Page 17 LD19164A-15 13. Packing form Product countries / Areas JAPAN TAIWAN CHINA Piling number of cartons 6 Package quantity in one carton 10pcs Carton size 395(L)×310(W)×270(H) Total mass of one carton fill...

Page 18 LD19164A-16 15.Others 15-1 Lot No. Label: Model number LQ LG Product countries / Areas Barcode Barcode Japan MADE IN JAPAN Taiwan MADE IN TAIWAN MADE IN CHINA China Lot Number． Serial No. (5 digits) A...
