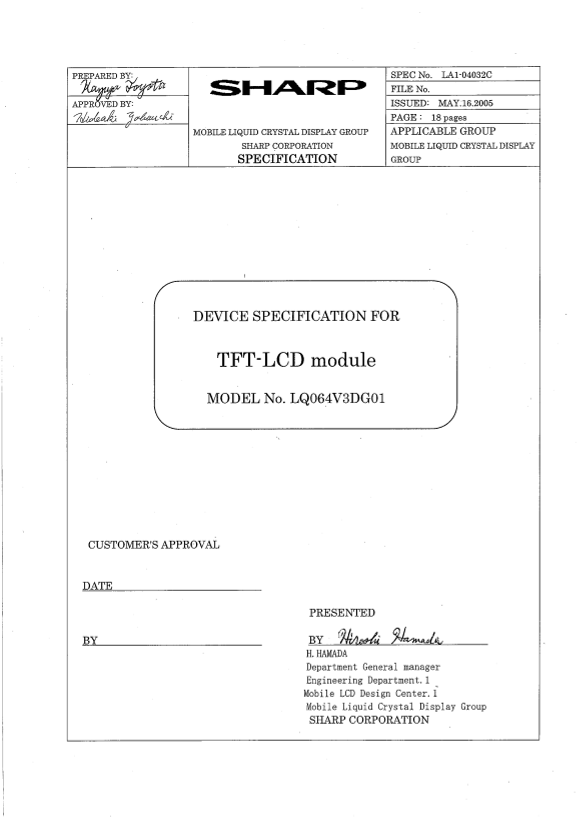

SHARP LQ064V3DG01 Owner's Manual
Summary
Enhance your electronic devices with this specialized 6.4-inch TFT-LCD module, designed for crisp color display and graphic visualization up to 262,144 colors. This manual provides comprehensive technical specifications, detailed mechanical parameters, and advanced reliability testing data (including thermal shock and vibration) needed for robust integration. It is essential reference material for electronics designers building general electronic equipment; note that this module is not intended for critical life support or specialized military/space applications.
Page Summary Contents For SHARP LQ064V3DG01 Owner's Manual
Manual Details
| Brand | Sharp |
|---|---|
| Pages | 20 |
| File Size | 541.77 KB |
| Published | May 29, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the display resolution and color depth?
It supports 640 x RGB x 480 dots with a color capability of 262,144 colors.
Can this module be used in critical life-support equipment?
No. It should not be used for equipment requiring extremely high reliability, such as medical life support systems or military applications.
Are there any important operational adjustments I must avoid?
Do not disassemble the module, and do not change the variable resistor value, as it has been optimally set before shipment.
What are the general physical dimensions of the LCD module?
The standard dimension is approximately 161.3 mm (W) x 117 mm (H) x 12 mm (D).
Is there a risk of image retention when operating the device?
Yes, image retention may occur when a fixed image is displayed for an extended period.
