Sharp LC-60E78UN User's Manual
Summary
Discover comprehensive operating instructions for your Sharp LC-60E78UN Liquid Crystal Television. This essential guide provides new users with step-by-step setup instructions, connection details, and vital safety warnings. It covers critical compliance information, understanding the warranty process, and locating authorized service centers. Use this manual to ensure safe, efficient operation of your premium TV.

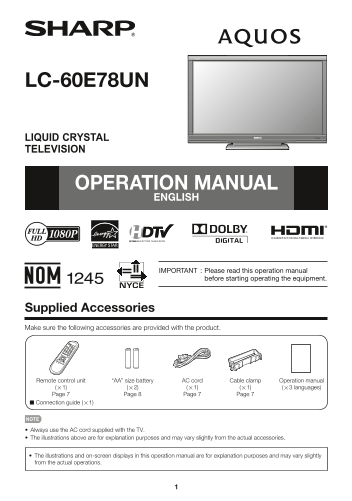

Page 1 Text Content
LC-60E78UN
LIQUID CRYSTAL TELEVISION
OPERATION MANUAL
ENGLISH
IMPORTANT : Please read this operation manual
before starting operating the equipment.
Supplied Accessories Make sure the following accessories are provided with the product.
Remote control unit “AA” size battery AC cord Cable clamp Operation manual (g1) (g2) (g1) (g1) (g3 languages)
■ Connection guide (g1)
Always use the AC cord supplied with the TV. The illustrations above are for explanation purposes and may vary slightly from the actual accessories.
• The illustrations and on-screen displays in this operation manual are for explanation purposes and may vary slightly from the actual operations.
LC-60E78UN_E_00.indd 1 2010/08/25 10:19:32
Page Summary Contents For Sharp LC-60E78UN User's Manual
Page 1
LC-60E78UN LIQUID CRYSTAL TELEVISION OPERATION MANUAL ENGLISH IMPORTANT : Please read this operation manual before starting operating the equipment. Supplied Accessories Make sure the following access...
Page 2
IMPORTANT: Model No.: To aid reporting in case of loss or theft, please record the TV's model and serial numbers in the space Serial No.: provided. The numbers are located at the rear of the TV. IMPOR...
Page 3
IMPORTANT INFORMATION INFORMATION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to p...
Page 4
DEAR SHARP CUSTOMER Thank you for your purchase of the Sharp Liquid Crystal Television. To ensure safety and many years of trouble-free operation of your product, please read the Important Safety Inst...
Page 5
IMPORTANT SAFETY INSTRUCTIONS • Outdoor Antenna Grounding — If an outside antenna is EXAMPLE OF ANTENNA GROUNDING AS PER connected to the television equipment, be sure the antenna NATIONAL ELECTRICAL ...
Page 6
IMPORTANT SAFETY INSTRUCTIONS Caring for the Liquid Crystal panel • Turn off the main power and unplug the AC cord from the wall outlet before handling. • Gently wipe the surface of the display panel ...
Page 7
QUICK REFERENCE QUICK INSTALLATION TIPS Experiencing HD images An HDTV without an HD source is just an ordinary TV. 1 Attach your antenna to the back of the television. To enjoy HD images on the TV, y...
Page 8
Preparation Antennas To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections that are used for a coaxial cable. If your outdoor antenna use...
Page 9
Part Names TV (Front) Remote control sensor OPC sensor* (See page 17.) OPC indicator (See page 17.) POWER indicator (See page 11.) * OPC: Optical Picture Control TV (Rear/Side) POWER AC INPUT button t...
Page 10
Connecting to External Equipment You can connect many types of external equipment to your TV. To view external source images, select the input source from INPUT on the remote control unit or on the TV...
Page 11
Watching TV Turning On/Off the Power Press POWER on the TV or on the remote control unit to turn the power on. • POWER indicator (Green): The TV is on. POWER • The Initial Installation starts when the...
Page 12
Direct Button Operation Changing Volume You can change the volume by pressing VOLk/l on the TV or on the remote control unit. To increase the volume, press VOLk. To decrease the volume, press VOLl. Au...
Page 13
Direct Button Operation AV MODE AUDIO AV MODE gives you several viewing options to choose ■ MTS/SAP stereo mode from to best match the surrounding environment of the The TV has a feature that allows r...
Page 14
Direct Button Operation INPUT 1 Press CC. This will present the Closed Caption information display. To view external source images, select the input source by 2 Press CC while the Closed Caption infor...
Page 15
Direct Button Operation VIEW MODE You can select the screen size. 1 Press VIEW MODE. The View Mode menu displays. The menu lists the View Mode options selectable for the type of video signal currently...
Page 16
On-Screen Display Menu On-Screen Display Menu Operation Example LCFONT embedded Example Picture Option Audio Only OPC Off On On : Display PC Audio Select [Input 4 (PC)] Backlight [b12] a16 b16 Auto Vo...
Page 17
On-Screen Display Menu Picture Menu Color Temp. (Color Temperature) Adjusts the picture to your preference with the For a better white balance, use color temperature following picture settings. correc...
Page 18
On-Screen Display Menu Digital Noise Reduction Surround Produces a clearer video image. The surround function produces Surround effect from Auto: Automatically adjusts the level of noise reduction. th...
Page 19
On-Screen Display Menu No Operation Off CH Setup When set to "Enable", the power will automatically shut If Initial Installation does not memorize all the channels down if there is no operat...
Page 20
On-Screen Display Menu Auto Sync. Reset (for Analog PC Input Mode Only) If complex adjustments are made and the settings cannot be restored to normal, you can reset the For automatically adjusting the...
Page 21
On-Screen Display Menu Status ■ TV Parental Guidelines Used to enable or disable the parental control function. Example This function will not be selectable from the menu if MPAA you do not fi rst con...
Page 22
On-Screen Display Menu Canadian Rating Systems (Canadian English ratings ■ Canadian French Ratings and Canadian French ratings) The TV rating systems in Canada are based on the Example Canadian Radio-...
Page 23
On-Screen Display Menu Option Menu When "PC Audio Select" is set to "Input 6 (HDMI)", sound Audio Only will not be produced if you use only an HDMI-certifi ed cable to connect HDMI...
Page 24
On-Screen Display Menu Digital Caption Info. Channel Selecting Effect (Digital Caption Information) You can select whether to use transition effects when changing channels. This function allows viewin...
Page 25
On-Screen Display Menu Insert the USB memory device with the update fi le There is more than one software file into the SERVICE terminal on the TV. in the USB memory device. Confirm that only the soft...
Page 26
Appendix Removing the Stand • Before detaching (or attaching) the stand, make sure to turn off the TV and unplug the AC cord. • Do not remove the stand from the TV unless using an optional wall mount ...
Page 27
Appendix Troubleshooting No power • Check the audio output of the connected external • Check if you pressed POWER on the remote control unit. equipment. Is the volume too low or muted? • When external...
Page 28
Appendix RS-232C Port Specifi cations ■ PC control of the TV ■ Command format • Use a cross-type RS-232C cable (commercially available) Eight ASCII codes e CR for the connections. • This operation sys...
Page 29
Appendix Specifi cations Item Model: LC-60E78UN LCD Size 60o Class (60 /32o Diagonal) panel Resolution 2,073,600 pixels (1,920 g 1,080) TV-standard (CCIR) American TV Standard ATSC/NTSC System VHF/UHF...
Page 30
PC Compatibility Chart It is necessary to set the PC correctly to display XGA and WXGA signal. PC Horizontal Frequency Vertical Frequency VESA Standard Resolution 720 x 400 31.5 k Hz 70 Hz 31.5 k Hz 6...
Page 31
Calling for Service For location of the nearest Sharp Authorized Service, or to obtain product literature, accessories, supplies, or customer assistance, please call 1-800-BE-SHARP. LIMITED WARRANTY C...
Page 32
