SHARP HNVA401SU Operation Manual
Summary
Establish reliable whole-home networking using this PowerLine Ethernet Adapter Kit. This system utilizes your existing electrical wiring to create a robust, wired network connection for devices like smart TVs and computers, supporting speeds up to 85 Mbps. The accompanying manual provides comprehensive instructions covering safe installation, adapter registration, troubleshooting tips, and detailed safety guidelines for optimal home network performance. Ideal for households or small businesses needing reliable internet connectivity without the hassle of running extensive Ethernet cables.
Page 1 Text Content
TINSE4561XHT*
MODEL
HN-VA401SU Power Line Ethernet Adapter Kit OPERATION MANUAL
Page Summary Contents For SHARP HNVA401SU Operation Manual

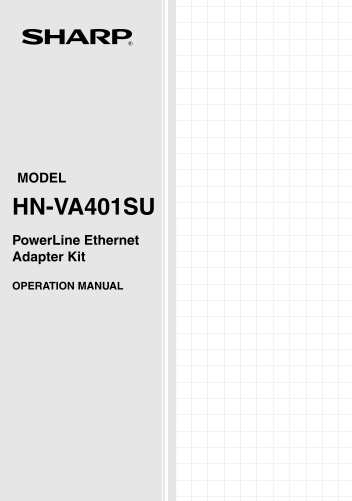

Page 1
TINSE4561XHT* MODEL HN-VA401SU Power Line Ethernet Adapter Kit OPERATION MANUAL
Page 2
all.book Page 1 Thursday, January 24, 2008 8:51 AM FCC regulatory information WARNING - FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by...
Page 3
all.book Page 1 Thursday, January 24, 2008 8:51 AM Table of Contents Introduction Unpacking Checklist Safety Information Electrical Interference Information Network Security A Look at the PLC Adapter ...
Page 4
all.book Page 2 Thursday, January 24, 2008 8:51 AM Introduction Introduction Thank you for purchasing a SHARP PLC (Power Line Communication) adapter kit. The SHARP PLC adapter kit lets you use the exi...
Page 5
all.book Page 3 Thursday, January 24, 2008 8:51 AM Unpacking Checklist Unpacking Checklist 1-port PLC adapter 4-port PLC adapter (HN-VA100U) (HN-VA400U) LAN1 LAN2 LAN3 LAN4LAN POWER POWER LAN cables (...
Page 6
all.book Page 4 Thursday, January 24, 2008 8:51 AM Electrical Interference Information Do not cover the adapter with a blanket or cloth. Excessive heating may result and cause fire. The power outlet m...
Page 7
all.book Page 5 Thursday, January 24, 2008 8:51 AM Network Security Network Security To prevent others using nearby power lines from accessing or eavesdropping on your network, only adapters that have...
Page 8
all.book Page 6 Thursday, January 24, 2008 8:51 AM A Look at the PLC Adapter A Look at the PLC Adapter POWER SET button This button is used to register the adapter on the network. The two adapters in ...
Page 9
all.book Page 7 Thursday, January 24, 2008 8:51 AM A Look at the PLC Adapter LAN LAN1 LAN2 LAN3 LAN ports Connect network devices such as a computer, router, and TV to these ports using LAN cables. (T...
Page 10
all.book Page 8 Thursday, January 24, 2008 8:51 AM Installation Installation Plug the power cords of the adapters into electrical outlets at the desired locations of your house. It is recommended that...
Page 11
all.book Page 9 Thursday, January 24, 2008 8:51 AM Installation Make sure that the PLC indicator on each adapter lights steady green. This indicates that the adapter is able to communicate. To be able...
Page 12
all.book Page 10 Thursday, January 24, 2008 8:51 AM Installation Note: Do not connect two PLC adapters together by a LAN cable LAN LAN ♦The maximum distance (length of power line) over which PLC adapt...
Page 13
all.book Page 11 Thursday, January 24, 2008 8:51 AM Registering an Additional Adapter Registering an Additional Adapter If you purchase an additional adapter, follow the steps below to register the ad...
Page 14
all.book Page 12 Thursday, January 24, 2008 8:51 AM Registering an Additional Adapter Hold down the SET button on the new adapter for about 2 seconds and then release it (this must be done within 2 mi...
Page 15
all.book Page 13 Thursday, January 24, 2008 8:51 AM Troubleshooting Troubleshooting If you have any problems with the adapter, first refer to the following troubleshooting guide. If you cannot solve t...
Page 16
all.book Page 14 Thursday, January 24, 2008 8:51 AM Troubleshooting Connection to the Internet To connect to the Internet via the network, is not possible. you must have a Broadband Internet connectio...
Page 17
all.book Page 15 Thursday, January 24, 2008 8:51 AM Troubleshooting A PLC adapter does not Unplug the adapter from the electrical outlet operate, or does not for at least 10 seconds and then plug it b...
Page 18
all.book Page 16 Thursday, January 24, 2008 8:51 AM Indicators on the PLC adapters Indicators on the PLC adapters POWER indicator ON The power is on Blinking The adapter is starting up (the adapter bl...
Page 19
all.book Page 17 Thursday, January 24, 2008 8:51 AM Indicators on the PLC adapters Communication speed* Green The adapters are able to communicate at a speed of 30 Mbps or higher. Orange The adapters ...
Page 20
all.book Page 18 Thursday, January 24, 2008 8:51 AM Canceling the Registration of an Adapter Canceling the Registration of an Adapter To cancel the network registration of an adapter, follow the steps...
Page 21
all.book Page 19 Thursday, January 24, 2008 8:51 AM Specifications Specifications Communication standard Home Plug AV 1.1 PHY rate (theoretical value): 200 Mbps max. Communication speed*1 Effective sp...
Page 22
all.book Page 20 Thursday, January 24, 2008 8:51 AM Specifications Number of LAN ports HN-VA100U: 1 port HN-VA400U: 4 ports Power requirements 120 V AC, 60 Hz Power consumption HN-VA100U: 4.4 W maximu...
Page 23
all.book Page 1 Thursday, January 24, 2008 8:51 AM U.S.A. only LIMITED WARRANTY SHARP ELECTRONICS CORPORATION warrants to the first end user purchaser that this Sharp brand product (the "Product&...
Page 24
SHARP ELECTRONICS CORPORATION Sharp Plaza, Mahwah, New Jersey 07430-1163 1-800-BE-SHARP http://www.sharpusa.com SHARP CORPORATION FOR YOUR RECORDS Please record the model number and serial number belo...
