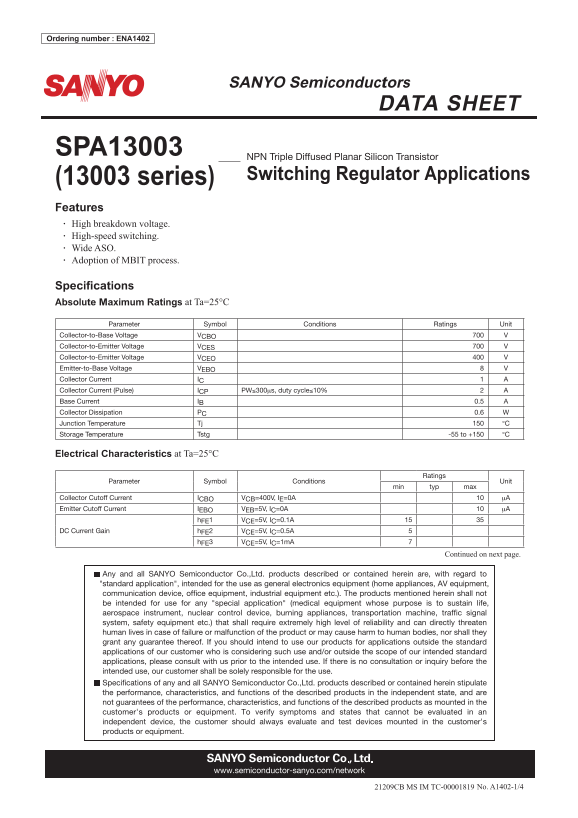

SANYO Semiconductors

DATA SHEET

SPA13003

NPN Triple Diffused Planar Silicon Transistor

(13003 series) Switching Regulator Applications

Features • High breakdown voltage. • High-speed switching. • Wide ASO. • Adoption of MBIT process.

Specifi cations Absolute Maximum Ratings at Ta=25°C

Parameter Symbol Conditions Ratings Unit

Collector-to-Base Voltage VCBO Collector-to-Emitter Voltage VCES Collector-to-Emitter Voltage VCEO Emitter-to-Base Voltage VEBO Collector Current IC Collector Current (Pulse) ICP PW≤300μs, duty cycle≤10% Base Current IB 0.5 Collector Dissipation PC 0.6 Junction Temperature Tj °C Storage Temperature Tstg -55 to +150 °C

Electrical Characteristics at Ta=25°C

Ratings

Parameter Symbol Conditions Unit

min typ max

Collector Cutoff Current ICBO VCB=400V, IE=0A μA Emitter Cutoff Current IEBO VEB=5V, IC=0A μA

h FE1 VCE=5V, IC=0.1A

DC Current Gain h FE2 VCE=5V, IC=0.5A

h FE3 VCE=5V, IC=1m A

Continued on next page.
