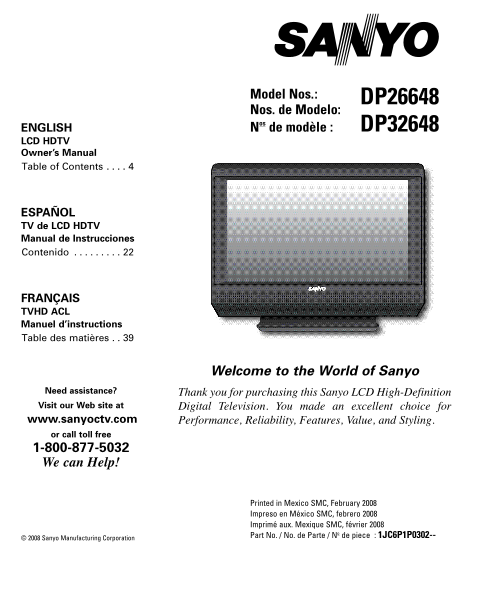

Page 1
Model Nos.: DP26648 Nos. de Modelo: ENGLISH Nos de modèle : DP32648 LCD HDTV Owner’s Manual Table of Contents . . . . ESPAÑOL TV de LCD HDTV Manual de Instrucciones Contenido . . . . . . . . . FRANÇAI...
Page 2
CAUTION THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT. RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK...
Page 3
FCC INFORMATION This equipment has been tested and found to comply with the limits for a Class B digital device, pur- suant to Part 15 of the FCC Rules. These limits are designed to provide reasonable...
Page 4
CONTENTS IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . PC CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 FCC INFORMATION . . . . . . . . . . . . . . . . . ...
Page 5
INSTALLATION GETTING STARTED POSITIONING THE LCD HDTV Install supplied batteries in the Remote. (2 ”AAA” eneloop Ni-MH rechargeable batteries) Always use a firm-flat surface when posi- PRECAUTIONS tio...
Page 6
GETTING STARTED—CONTROLS AND JACKS RIGHT-SIDE PANEL Power key Volume – + keys Channel keys S-Video Input (VIDEO1), PAGE 8—To enhance video detail use the S-Video jack instead of the Video jack, if ava...
Page 7
REMOTE CONTROL OPERATION Point towards HDTV PIX Shape Key—Press to choose between options Pix1 ~ Pix4. Available options depend on the signal and the broadcast’s aspect ratio. Input Key—Press to selec...
Page 8
GETTING STARTED—CONNECTIONS Analog Signal Connections— Digital Signal Connections— Video1 (optional) Video2 & Video3 (optional) Connect an analog device, such as, an Analog Connect Digital devices...
Page 9
GETTING STARTED—POWER CONNECTION / CHANNEL SEARCH POWER CONNECTION Plug in AC power cord (120V AC, 60 Hz). Press the POWER key. (Follow the on-screen instructions.) To 120V AC outlet. INITIAL CHANNEL ...
Page 10
ADVANCED AV CONNECTIONS ADVANCED DIGITAL SIGNAL DIGITAL AUDIO CONNECTIONS—HDMI TO HDMI Connect the Digital Audio output to a Connect compatible Digital devices, such as, multichannel receiver, as show...
Page 11
PC CONNECTIONS NOTE: Before connecting any cables, disconnect the AC Power Cords of both the HDTV and Personal Computer from the AC outlets. Connect an RGB cable from the monitor out- put on your PC t...
Page 12
ON-SCREEN MENU OPERATION MENU NAVIGATION MAP MANUAL CHANNEL SEARCH MAIN MENU SUB-MENU OPTIONS MANUAL CHANNEL SEARCH HAS THREE CATEGORIES • Cable • Air (Antenna) • Digital Add-On Cable Search looks for...
Page 13
CHANNEL SCAN MEMORY Channel Scan Memory is a database of active DELETING CHANNELS FROM SCAN MEMORY channels you scan through using the CHANNEL Use the CHANNEL or NUMBER keys to keys. Customize it by d...
Page 14
ON-SCREEN MENU OPERATION (CONTINUED) V-GUIDE (PARENTAL CONTROL) NOTE: THIS FEATURE IS DESIGNED TO COMPLY Use the CURSOR and < > keys to select WITH THE UNITED STATES OF AMERICA’S FCC MOVIE, TV, ...
Page 15
REGIONAL V-GUIDE OPERATION (ADVANCED) V-Chip Regional Ratings 5 (RRT5) is an advanced Press the ENTER key to Block or Unblock V-Chip ratings system for digital channels that selected rating. A Lock sy...
Page 16
ON-SCREEN MENU OPERATION (CONTINUED) PICTURE / SOUND ADJUSTMENT ADVANCED PICTURE / SOUND ADJUSTMENTS Use the CURSOR keys to select Digital Choose Auto to accept predetermined values for Noise Reductio...
Page 17
DIGITAL CAPTIONING ENERGY (POWER) SAVER Captioning is textual information transmitted This power saving feature reduces the backlight along with the picture and sound. Turning brightness level. The op...
Page 18
HELPFUL HINTS—Problems/Solutions If you are having problems with your HDTV, Before returning your HDTV, please visit our check this trouble shooting chart to find one website at www.sanyoctv.com or ca...
Page 19
ONE-YEAR LIMITED PARTS AND LABOR WARRANTY THIS LIMITED PARTS AND LABOR WARRANTY IS VALID ONLY ON SANYO TELEVISIONS PURCHASED AND USED IN THE UNITED STATES OF AMERICA, CANADA, AND PUERTO RICO, EXCLUDIN...
