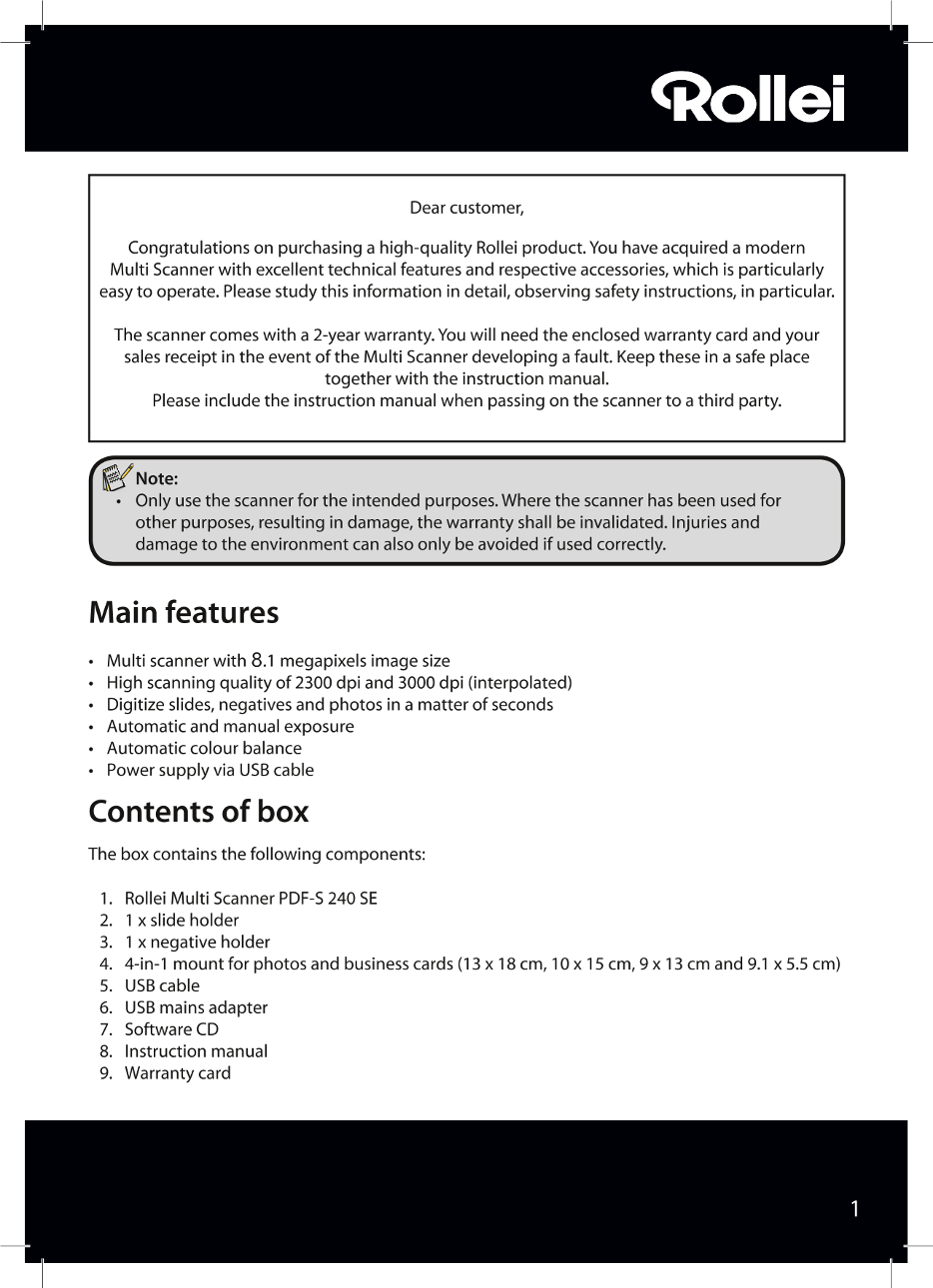

Page 1
Dear customer Congratulations on purchasing a high-quality Rollei product. You have acquired a modern Multi Scanner with excellent technical features and respective accessories, Which is particularly ...
Page 2
Contents 01 Introduction 01 Main features 01 Contents of box 02 Contents 04 1. Safety Instructions 06 2. Overview of device 07 3. Inserting slides 08 4. Inserting negatives 09 5, Inserting photos 10 6...
Page 3
23 6.9， Language setting 23 6.10.U5B mode 24 7. Blaze Photo (image processing software) 24 7.1. Installation 24 7.2， Editing functions 24 7.2.1,Import photos {Get Photo) 25 7.2.2. Preview 26 7.2.3,. E...
Page 4
1.Safety Instructions 人 HAZARD for children 。 Children do net recognize the hazards that can result from the incerrect use of electrical equipment.The scanner should consequently be kept away from chi...
Page 5
WARNING against injuries ，Install USB connection cable sothat it does not become atrip hazard. CAUTION - material damage Place Multi Scanner on a sturdy, level surface. Proetect the device against moi...
Page 6
ON/OFF switch Control LED photo scan mode Control LEDfilm scan mode SCAN button Switch for scan mode negatives Mini USB 2.0 connection 5SD/ASDHC and MMKC memery card slet Negative holder Left button 十...
Page 7
3.Inserting slides Open the slide holder at the point marked "Open and place the open holderin front of you as shown below.The slides can now be placed the right way up (notturned and not reverse...
Page 8
4.Inserting negatives Open the negative holder atthe point marked "Open“' and place the open holder in front of you as shown below.The negatives can now be placed the right way up (not turned and...
Page 9
5.Inserting photos Insert a photo into the photo holderforthe respective picture size.The holders are available in sizes9x13cm (3 多 "x5 10x15cm(4x6")and13x18cm(5“x77). 区 Note: 。， Handle phot...
Page 10
6. General operation 6.1.Quick start To scan slides or negatives, slide the switch at the top for the scan mode and for selecting the insertion slot to the left “Film scanner“ Position. To scan photos...
Page 11
上 no memory card is inserted in the device, the following warning appears when the Multi Scanner is switched on. The warning disappears after several seconds， 6.2. Main menu After switching on the sca...
Page 12
The next two iustrations show the Main menu of the photo scanner mode with information about the available options. Wain Menu - Photo scannermode Capture 和和 人 Language setting 加 Effect (multi-coloured...
Page 13
6.3.1,Flipping an image During the scan preview (live display) you have the option of 人 ipping the image vertically or herizontally priorto scanning.This function can be used to correct the orientatio...
Page 14
6.3.2, Adjusting image brightness and colors During the scan Preview you have the op Ption of changing the brightness value (EV) and also the color value. First press the ENTER button. Now the monitor...
Page 15
Usethe 二 /keysinthe Editmenuto selectthe option “Save“ and click on the ENTER key.The recorded image is then saved on the memory card. The scannerthen returns to the scan preview. 漂 w LIIL ， Cancel ”C...
Page 16
6.3.5.Memoryfull Ifthe SCAN key is pressed in the Recording mode and the following warning app Pears on the Multi Scanner display, the used memeoery is fu 由 .In this case you will have to first transf...
Page 17
6.4.1.Automatic slideshow Symbolfor sjideshow mode As soon as you have switched on the Playback mode, al images of ofthe memory card are automatically displayed at 2-second intervals. Only images scan...
Page 18
Below is anotherilustration ofthe described menu sequences. Siideshow mode jndividuafimage mode Ecitingmode Use 二 /和 keysto page through images Rotate images Scanned images can subsequently be rotated...
Page 19
To permanently save an image, first use the 二 /及 keys to select the option Save" After pressing the ENTER key the image is saved and the next image is shown on the screen. Delete To completely de...
Page 20
Toleavethe Edit menu and return to the Main menu use the 本/ 因 keys to select the option "Home"and press the ENTER key. You can also changeto the Main menu at anytime using the MODE key. No i...
Page 21
6.6. Effects (only in photo scanner mode) The photo scanner mode allows youto preset whether colour or black and white photos are to be scanned. Usethe 十/ 荐 keys in the Main menuto select the option E...
Page 22
6.8. Setting the resolution The Multi Scanner contains an image sensor with a 8.1 megapixels resolution.You also have the option of selecting an interpolated resolution of approx,. 10 megapixels. Slid...
Page 23
6.9.Language setting The language setting in the menus can be changed at alltimes. Use the 二 / 基 keys in the Main menu to selectthe option “Language"and confirm the selection by clicking on ENTER...
Page 24
7.Blaze Photo (image processing software) The software CD contains the image editing Program Biaze Photo.This program offers basic functions for archiving and post processing of photos.The program all...
Page 25
Whenthe option Search folder is selected, the drives and folders currently available on the computer are shown in the program section.The folder containing the respective images can then be selected.T...
Page 26
EECEEETET 器 汉 过 G@m The clipboard function allows you to pre-select individual images forfurther processing. Highlight one or several images in the Preview by clicking on them with the left mouse butt...
Page 27
image Using the following functions: Red eye: Ifa person app Pears to have red eyes in an image, this 眉 Blaze Photo can be corrected. Using the mouse, drag a close frame around File ”Creations Share S...
Page 28
7.2.4,. Create The Biazephoto program offers youthe cption to compile image series and save these for archiving orforwarding on CD or DVD. Create disk: Select op Ption “Create disk "to save image...
Page 29
8. Disposal Dispose ofthis packaging in the proper manner befitting the relevant materials, and in an environmentally responsible manner at the collection points provided. Disposing ofthis product cor...
Page 30
10. Conformity Herewith Rollei Gmb H & Co. KG hereby declares that this device complies with the following guidelines. The full text of the EU Declaration of Conformity is available at the followi...
Page 31
11.Technical specification Model PDF-S 240 SE Image sensor 8.1 megapixels CMOS sensor Lens F=3.6; 仁 483 LCD 61cm (24")LTPS LCD display Scanner resolution 2300 dpiand 3300 dpitinterpolated) Exposu...
Page 32
12.1Index Main features 1 Burning images 28 Main menu 11 <all-up Main menu 15, 20 Memoryfull 16 Changing exposure value 14 Menu optionsfilm scanner mode 11 Color setting 14 Menu options pheto scann...
