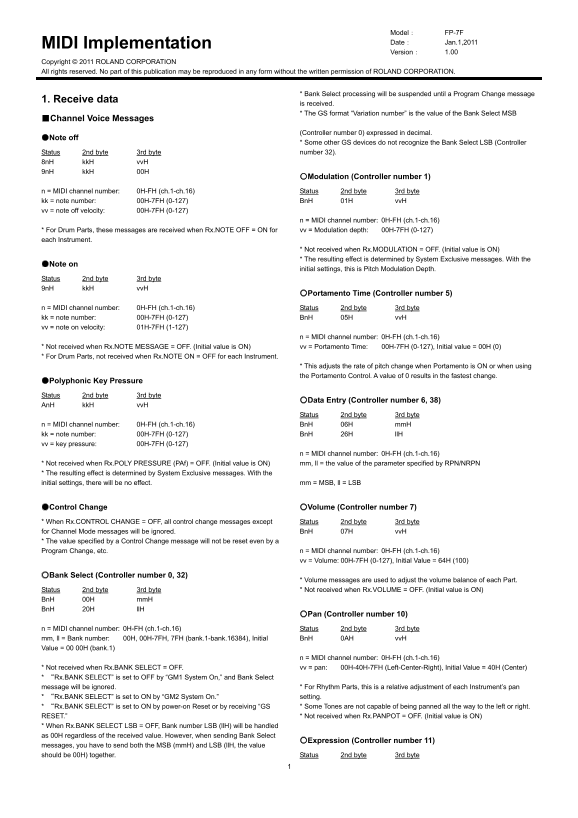

Model： FP-7F MIDI Implementation Date： Jan.1,2011 Version： 1.00

Copyright © 2011 ROLAND CORPORATION All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION.

* Bank Select processing will be suspended until a Program Change message

1. Receive data

is received. * The GS format “Variation number” is the value of the Bank Select MSB

■Channel Voice Messages

(Controller number 0) expressed in decimal.

●Note off

* Some other GS devices do not recognize the Bank Select LSB (Controller Status 2nd byte 3rd byte number 32).

8n H kk H vv H 9n H kk H 00H

○Modulation (Controller number 1)

n = MIDI channel number: 0H-FH (ch.1-ch.16) Status 2nd byte 3rd byte kk = note number: 00H-7FH (0-127) Bn H 01H vv H vv = note off velocity: 00H-7FH (0-127)

n = MIDI channel number: 0H-FH (ch.1-ch.16)

* For Drum Parts, these messages are received when Rx.NOTE OFF = ON for vv = Modulation depth: 00H-7FH (0-127) each Instrument.

* Not received when Rx.MODULATION = OFF. (Initial value is ON) * The resulting effect is determined by System Exclusive messages. With the

●Note on

initial settings, this is Pitch Modulation Depth.

Status 2nd byte 3rd byte 9n H kk H vv H

○Portamento Time (Controller number 5)

n = MIDI channel number: 0H-FH (ch.1-ch.16) Status 2nd byte 3rd byte kk = note number: 00H-7FH (0-127) Bn H 05H vv H vv = note on velocity: 01H-7FH (1-127)

n = MIDI channel number: 0H-FH (ch.1-ch.16)

* Not received when Rx.NOTE MESSAGE = OFF. (Initial value is ON) vv = Portamento Time: 00H-7FH (0-127), Initial value = 00H (0) * For Drum Parts, not received when Rx.NOTE ON = OFF for each Instrument.

* This adjusts the rate of pitch change when Portamento is ON or when using the Portamento Control. A value of 0 results in the fastest change.

●Polyphonic Key Pressure

Status 2nd byte 3rd byte

○Data Entry (Controller number 6, 38)

An H kk H vv H

Status 2nd byte 3rd byte

n = MIDI channel number: 0H-FH (ch.1-ch.16) Bn H 06H mm H kk = note number: 00H-7FH (0-127) Bn H 26H ll H vv = key pressure: 00H-7FH (0-127)

n = MIDI channel number: 0H-FH (ch.1-ch.16)

* Not received when Rx.POLY PRESSURE (PAf) = OFF. (Initial value is ON) mm, ll = the value of the parameter specified by RPN/NRPN * The resulting effect is determined by System Exclusive messages. With the initial settings, there will be no effect. mm = MSB, ll = LSB

●Control Change ○Volume (Controller number 7)

* When Rx.CONTROL CHANGE = OFF, all control change messages except Status 2nd byte 3rd byte for Channel Mode messages will be ignored. Bn H 07H vv H * The value specified by a Control Change message will not be reset even by a Program Change, etc. n = MIDI channel number: 0H-FH (ch.1-ch.16)

vv = Volume: 00H-7FH (0-127), Initial Value = 64H (100)

○Bank Select (Controller number 0, 32)

* Volume messages are used to adjust the volume balance of each Part. Status 2nd byte 3rd byte * Not received when Rx.VOLUME = OFF. (Initial value is ON)

Bn H 00H mm H Bn H 20H ll H

○Pan (Controller number 10)

n = MIDI channel number: 0H-FH (ch.1-ch.16) Status 2nd byte 3rd byte mm, ll = Bank number: 00H, 00H-7FH, 7FH (bank.1-bank.16384), Initial Bn H 0AH vv H Value = 00 00H (bank.1)

n = MIDI channel number: 0H-FH (ch.1-ch.16)

* Not received when Rx.BANK SELECT = OFF. vv = pan: 00H-40H-7FH (Left-Center-Right), Initial Value = 40H (Center) * “Rx.BANK SELECT” is set to OFF by “GM1 System On,” and Bank Select message will be ignored. * For Rhythm Parts, this is a relative adjustment of each Instrument’s pan

* “Rx.BANK SELECT” is set to ON by “GM2 System On.” setting. * “Rx.BANK SELECT” is set to ON by power-on Reset or by receiving “GS * Some Tones are not capable of being panned all the way to the left or right.

RESET.” * Not received when Rx.PANPOT = OFF. (Initial value is ON) * When Rx.BANK SELECT LSB = OFF, Bank number LSB (ll H) will be handled as 00H regardless of the received value. However, when sending Bank Select

○Expression (Controller number 11)

messages, you have to send both the MSB (mm H) and LSB (ll H, the value should be 00H) together. Status 2nd byte 3rd byte
