ROHM TECHNICAL NOTE Brush Motor H-Bridge Drivers (36V max.) BD6230, BD6231, BD6232, BD6235, BD6235 User Manual, Owner's Manual

Summary

These highly efficient H-bridge driver ICs are full bridge solutions designed for robust brush motor control across a wide voltage range (3V to 36V) and up to 2A of output current. They deliver advanced functionality, including PWM signal input and built-in over/under voltage protections. This manual provides engineers with comprehensive technical data—covering electrical characteristics, functional operating curves, and absolute maximum ratings—allowing for optimal system integration in demanding applications such as audio-visual equipment, CD/DVD players, PC peripherals, and car navigation systems.

📄 Preview PAGE OF 17

Page 1 Text Content

TECHNICAL NOTE

For brush motors

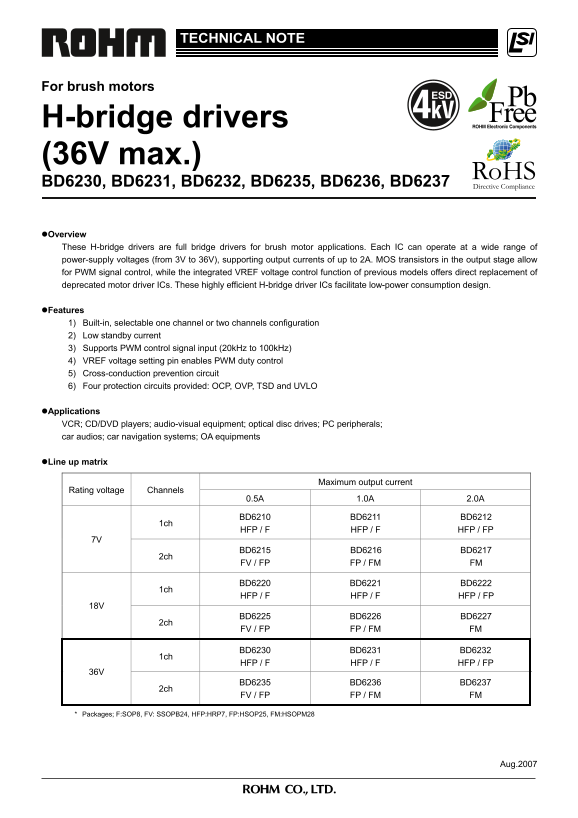

H-bridge drivers (36V max.) BD6230, BD6231, BD6232, BD6235, BD6236, BD6237 Overview These H-bridge drivers are full bridge drivers for brush motor applications. Each IC can operate at a wide range of power-supply voltages (from 3V to 36V), supporting output currents of up to 2A. MOS transistors in the output stage allow for PWM signal control, while the integrated VREF voltage control function of previous models offers direct replacement of deprecated motor driver ICs. These highly efficient H-bridge driver ICs facilitate low-power consumption design. Features 1) Built-in, selectable one channel or two channels configuration 2) Low standby current 3) Supports PWM control signal input (20k Hz to 100k Hz) 4) VREF voltage setting pin enables PWM duty control 5) Cross-conduction prevention circuit 6) Four protection circuits provided: OCP, OVP, TSD and UVLO

Applications VCR; CD/DVD players; audio-visual equipment; optical disc drives; PC peripherals; car audios; car navigation systems; OA equipments

Line up matrix

Maximum output current

Rating voltage Channels

BD6210 BD6211 BD6212

HFP / F HFP / F HFP / FP

BD6215 BD6216 BD6217

FV / FP FP / FM FM

BD6220 BD6221 BD6222

HFP / F HFP / F HFP / FP

BD6225 BD6226 BD6227

FV / FP FP / FM FM

BD6230 BD6231 BD6232

HFP / F HFP / F HFP / FP

BD6235 BD6236 BD6237

FV / FP FP / FM FM

* Packages; F:SOP8, FV: SSOPB24, HFP:HRP7, FP:HSOP25, FM:HSOPM28

Aug.2007

Page Summary Contents For ROHM TECHNICAL NOTE Brush Motor H-Bridge Drivers (36V max.) BD6230, BD6231, BD6232, BD6235, BD6235 User Manual, Owner's Manual

Page 1 TECHNICAL NOTE For brush motors H-bridge drivers (36V max.) BD6230, BD6231, BD6232, BD6235, BD6236, BD6237 Overview These H-bridge drivers are full bridge drivers for brush motor applications. Each IC...
Page 2 Absolute maximum ratings (Ta=25°C) Parameter Symbol Ratings Unit Supply voltage VCC 36 V Output current IOMAX 0.5 *1 / 1.0 *2 / 2.0 *3 A All other input pins VIN -0.3 ~ VCC V Operating temperature TOP...
Page 3 Electrical characteristic curves (Reference data) In te rn al og ic : H /L sc ill at io Fr eq ue nc y: [k z] In pu t B ia ur re nt : I IH [m irc ui t C ur re nt : I cc [m Supply Voltage: Vcc [V] Suppl...
Page 4 Electrical characteristic curves (Reference data) – Continued ut pu t V ol ta ge : V [V ut pu t V ol ta ge : V [V ut pu t V ol ta ge :V -V [V ut pu t V ol ta ge : V -V [V Output Current: IOUT [A] Outp...
Page 5 Block diagram and pin configuration BD6230F / BD6231F 6 VREF DUTY PROTECT Table 1 BD6230/31F Pin Name Function 1 OUT1 Driver output 2 VCC Power supply 3 VCC Power supply 8 GND 7 1 4 FIN Control input ...
Page 6 Block diagram and pin configuration – Continued BD6232FP Table 3 BD6232FP 17 VREF DUTY PROTECT Pin Name Function 1,2 OUT1 Driver output 6 GND Small signal ground 7,8 RNF Power stage ground 12,13 OUT2 ...
Page 7 Block diagram and pin configuration – Continued BD6235FP, BD6236FP/FM Table 5 BD6235FP / BD6236FP Pin Name Function 9 VREFA DUTY PROTECT 1 OUT1A Driver output 3 RNFA Power stage ground 6 OUT2A Driver ...
Page 8 Block diagram and pin configuration – Continued BD6237FM Table 7 BD6237FM 9 VREFA DUTY PROTECT VCC Pin Name Function 1,2 OUT1A Driver output 3,4 RNF A Power stage ground OUT1A 6,7 OUT2A Driver output ...
Page 9 Functional descriptions 1) Operation modes Table 8 Logic table FIN RIN VREF OUT1 OUT2 Operation a L L X Hi-Z* Hi-Z* Stand-by (idling) b H L VCC H L Forward (OUT1 > OUT2) c L H VCC L H Reverse (OUT1...
Page 10 e) f) PWM control mode The rotational speed of the motor can be controlled by the switching duty when the PWM signal is input to the FIN pin or the RIN pin. In this mode, the high side output is fixed...
Page 11 2) Cross-conduction protection circuit In the full bridge output stage, when the upper and lower transistors are turned on at the same time, and this condition exists during the period of transition f...
Page 12 Thermal design i) Package only (copper foil: 10.5mm x 10.5mm) Pd [W Pd [W i) Package only i) Package only ii) 2 layers PCB (copper foil: 15mm x 15mm) iii) 2 layers PCB (copper foil: :70mm x 70mm) ii) ...
Page 13 Interfaces VCC VCC VCC VCC 100k 10k OUT1 FIN OUT1 RIN OUT2 OUT2 GND RNF Fig.48 FIN / RIN Fig.49 VREF Fig.50 OUT1 / OUT2 Fig.51 OUT1 / OUT2 (SOP8/HRP7) (SSOPB24/HSOP25/HSOPM28) NOTES FOR USE 1) Absolut...
Page 14 8) ASO - Area of Safety Operation When using the IC, set the output transistor so that it does not exceed absolute maximum ratings or ASO. 9) Built-in thermal shutdown (TSD) circuit The TSD circuit is...
Page 15 SOP8 <Dimension> <Tape and reel information> Tape Embossed carrier tape 2. 0. 9. 0. Quantity 2500pcs 0. Direction 7. 0. of feed (The direction is the 1pin of product is at the upper left w...
Page 16 HRP7 <Dimension> <Tape and reel information> 9.395 ± 0.125 Tape (MAX 9.745 include BURR) Embossed carrier tape Quantity 2000pcs 0. .0 8. 0. 1. 0. Direction TR of feed (Holding the reel wit...
Page 17 Appendix Notes No technical content pages of this document may be reproduced in any form or transmitted by any means without prior permission of ROHM CO.,LTD. The contents described herein are subject...
