Rohm BU90LV047A Technical Note
Summary
This high-performance LVDS Interface IC acts as an essential serializer and deserializer for reliable, high-speed data transmission up to 250MHz. Featuring ultra-low EMI characteristics and compatible with industry standards, it significantly simplifies system design by reducing cable counts across multiple data streams. The manual provides comprehensive technical specifications, including pin diagrams, operating parameters, and applications details. Ideal for various demanding fields such as medical diagnostics, LCD-TV displays, digital signage, and industrial automation equipment requiring stable signal integrity.

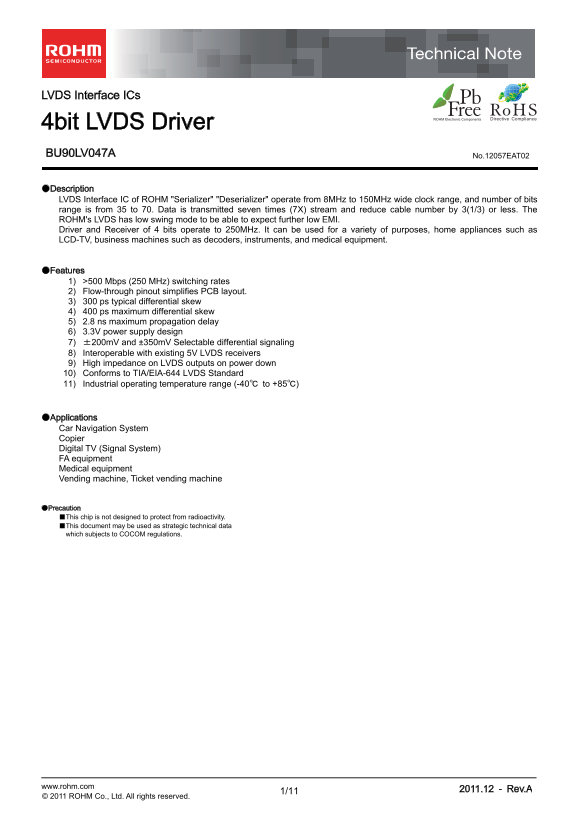

Page 1 Text Content
LVDS Interface ICs
4bit LVDS Driver BU90LV047A No.12057EAT02
●Description LVDS Interface IC of ROHM "Serializer" "Deserializer" operate from 8MHz to 150MHz wide clock range, and number of bits range is from 35 to 70. Data is transmitted seven times (7X) stream and reduce cable number by 3(1/3) or less. The ROHM's LVDS has low swing mode to be able to expect further low EMI. Driver and Receiver of 4 bits operate to 250MHz. It can be used for a variety of purposes, home appliances such as LCD-TV, business machines such as decoders, instruments, and medical equipment.
●Features 1) >500 Mbps (250 MHz) switching rates 2) Flow-through pinout simplifies PCB layout. 3) 300 ps typical differential skew 4) 400 ps maximum differential skew 5) 2.8 ns maximum propagation delay 6) 3.3V power supply design 7) ±200m V and ±350m V Selectable differential signaling 8) Interoperable with existing 5V LVDS receivers 9) High impedance on LVDS outputs on power down 10) Conforms to TIA/EIA-644 LVDS Standard 11) Industrial operating temperature range (-40℃ to +85℃)
●Applications Car Navigation System Copier Digital TV (Signal System) FA equipment Medical equipment Vending machine, Ticket vending machine
●Precaution ■This chip is not designed to protect from radioactivity. ■This document may be used as strategic technical data which subjects to COCOM regulations.
www.rohm.com 2011.12 - Rev.A
© 2011 ROHM Co., Ltd. All rights reserved.
Page Summary Contents For Rohm BU90LV047A Technical Note
Manual Details
| Brand | ROHM |
|---|---|
| Pages | 12 |
| File Size | 275.09 KB |
| Published | June 02, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How is the differential signal swing level controlled?
The Swing Level (SL) pin controls it: High reduces the swing to 200mV, while low or open maintains a normal 350mV swing.
What voltage standard must be used for operation?
This IC uses a 3.3V power supply and is specified as being interoperable with existing 5V LVDS receivers.
When is the driver functionally enabled or disabled?
The driver is enabled when the Enable pin (EN) is high, and it is disabled when EN is low or open.
