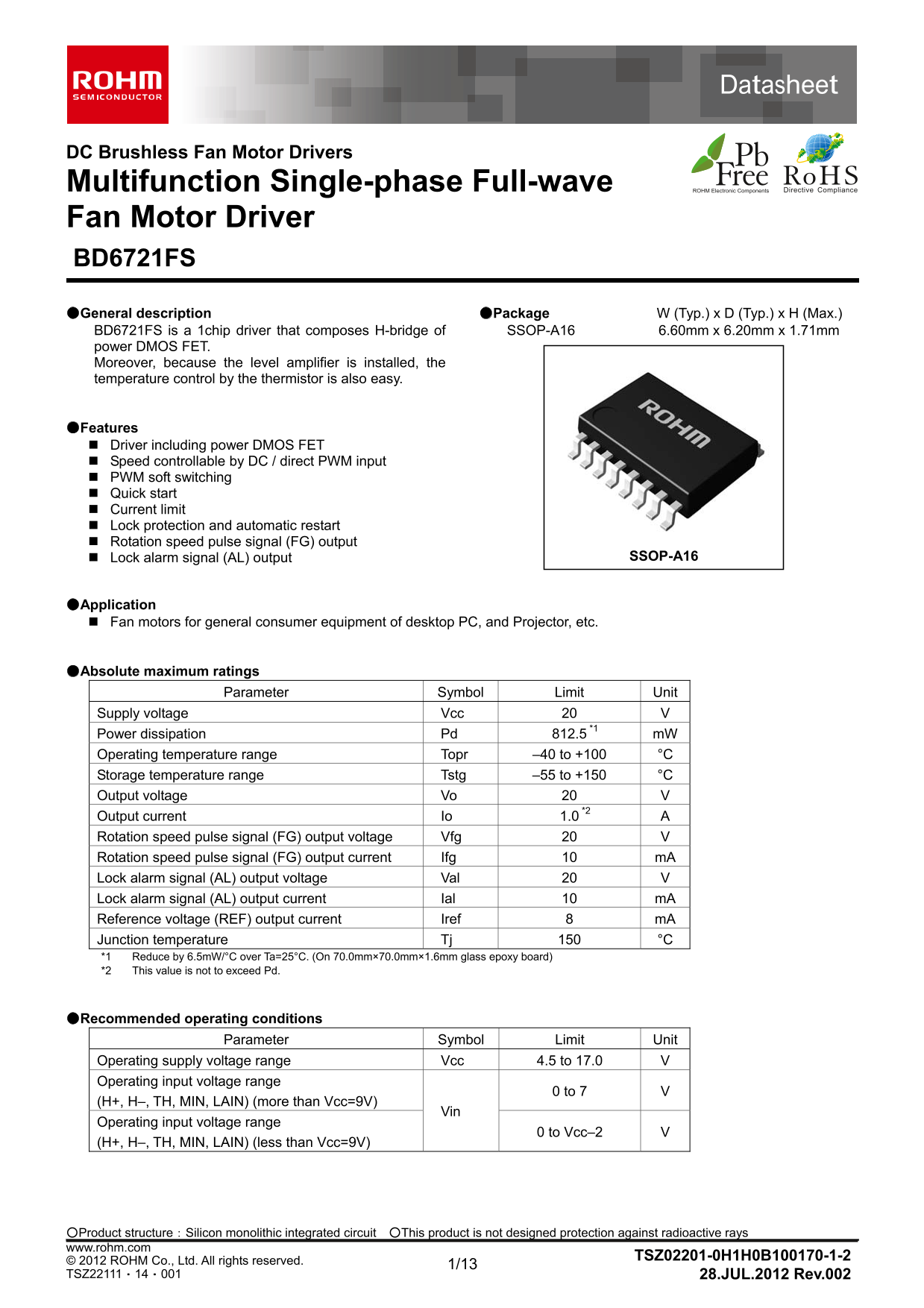

DC Brushless Fan Motor Drivers Multifunction Single-phase Full-wave Fan Motor Driver BD6721FS

●General description ●Package W (Typ.) x D (Typ.) x H (Max.) BD6721FS is a 1chip driver that composes H-bridge of SSOP-A16 6.60mm x 6.20mm x 1.71mm power DMOS FET. Moreover, because the level amplifier is installed, the temperature control by the thermistor is also easy.

●Features Driver including power DMOS FET Speed controllable by DC / direct PWM input PWM soft switching Quick start Current limit Lock protection and automatic restart Rotation speed pulse signal (FG) output

Lock alarm signal (AL) output SSOP-A16

●Application Fan motors for general consumer equipment of desktop PC, and Projector, etc.

●Absolute maximum ratings

Parameter Symbol Limit Unit

Supply voltage Vcc 20 V Power dissipation Pd 812.5 *1 m W Operating temperature range Topr –40 to +100 °C Storage temperature range Tstg –55 to +150 °C Output voltage Vo 20 V Output current Io 1.0 *2 A Rotation speed pulse signal (FG) output voltage Vfg 20 V Rotation speed pulse signal (FG) output current Ifg 10 m A Lock alarm signal (AL) output voltage Val 20 V Lock alarm signal (AL) output current Ial 10 m A Reference voltage (REF) output current Iref 8 m A Junction temperature Tj 150 °C *1 Reduce by 6.5m W/°C over Ta=25°C. (On 70.0mm×70.0mm×1.6mm glass epoxy board) *2 This value is not to exceed Pd.

●Recommended operating conditions

Parameter Symbol Limit Unit

Operating supply voltage range Vcc 4.5 to 17.0 V Operating input voltage range

0 to 7 V

(H+, H–, TH, MIN, LAIN) (more than Vcc=9V)

Operating input voltage range

0 to Vcc–2 V

(H+, H–, TH, MIN, LAIN) (less than Vcc=9V)

○Product structure:Silicon monolithic integrated circuit ○This product is not designed protection against radioactive rays www.rohm.com

TSZ02201-0H1H0B100170-1-2© 2012 ROHM Co., Ltd. All rights reserved.

TSZ22111・14・001 28.JUL.2012 Rev.002

Page Summary Contents For ROHM BD6721FS Technical Note

Page 1 Datasheet DC Brushless Fan Motor Drivers Multifunction Single-phase Full-wave Fan Motor Driver BD6721FS ●General description ●Package W (Typ.) x D (Typ.) x H (Max.) BD6721FS is a 1chip driver that com...
Page 2 Datasheet BD6721FS ●Pin configuration ●Pin description P/No. T/Name Function (TOP VIEW) 1 GND Ground terminal (signal ground) Oscillating capacitor connecting GND AL 2 OSC terminal 3 LAOUT Level ampli...
Page 3 Datasheet BD6721FS ●Electrical characteristics(Unless otherwise specified Ta=25°C, Vcc=12V) Limit Ref. Parameter Symbol Unit Conditions Min. Typ. Max. data Circuit current Icc 4 7 10 m A Fig.3 Hall in...
Page 4 Datasheet BD6721FS tp ig lt [V ir it rr t: [m ●Typical performance curves(Reference data) Operating range Operating range tp ig lt -20 [V ll in pu te re is lt [m Supply voltage: Vcc[V] Supply voltage:...
Page 5 Datasheet BD6721FS te ti im [s tp lo lt : V l[ ●Typical performance curves(Reference data) te ti im ff [s tp lo lt : V l[ Output sink current: Io[A] Output sink current: Io[A] Fig.7 Output low voltage...
Page 6 Datasheet BD6721FS tp le rr t: fg l/ Ia ll [u tp lo lt : V fg l/ ll[ ●Typical performance curves(Reference data) ig lo lt [V tp lo lt : V fg l/ ll[ Output sink current: Ifg/Ial[m A] Output sink curren...
Page 7 Datasheet BD6721FS li fi in la [d rg di rg rr t: Id ●Typical performance curves(Reference data) Operating range lif ie tp ig lt la [V li fi in la [d Supply voltage: Vcc[V] Input frequency: Flain[Hz] F...
Page 8 Datasheet BD6721FS fe re lt re f[ lif ie tp lo lt la l[ ●Typical performance curves(Reference data) Operating range Operating range rr lim it tt in lt l[ fe re lt re f[ Supply voltage: Vcc[V] Supply v...
Page 9 Datasheet BD6721FS ia rr t: th [u ●Typical performance curves(Reference data) Operating range Operating range IN ia rr t: in [u Supply voltage: Vcc[V] Supply voltage: Vcc[V] Fig.23 TH bias current Fig...
Page 10 Datasheet BD6721FS ●Application circuit example(Constant values are for reference) Protection of FG open-drain GND PWM SOFT AL SIGNAL TSD SIG SWITCHING OUTPUT 0Ω to 330p F Stabilization of REF voltage...
Page 11 Datasheet BD6721FS ●Power dissipation Power dissipation (total loss) indicates the power that can be consumed by IC at Ta=25°C (normal temperature). IC is heated when it consumes power, and the temper...
Page 12 Datasheet BD6721FS ●Operational Notes 1) Absolute maximum ratings An excess in the absolute maximum ratings, such as supply voltage, temperature range of operating conditions, etc., can break down the...
Page 13 Datasheet BD6721FS ●Physical dimension tape and reel information SSOP-A16 <Tape and Reel information> (MAX 6.95 include BURR) Embossed carrier tape Tape Quantity 2500pcs Direction The direction ...
Page 14 Datasheet Notice ●General Precaution 1) Before you use our Products, you are requested to carefully read this document and fully understand its contents. ROHM shall not be in any way responsible or li...
Page 15 Datasheet ●Precaution for Mounting / Circuit board design 1) When a highly active halogenous (chlorine, bromine, etc.) flux is used, the residue of flux may negatively affect product performance and r...
Page 16 Datasheet ●Other Precaution 1) The information contained in this document is provided on an “as is” basis and ROHM does not warrant that all information contained in this document is accurate and/or e...
