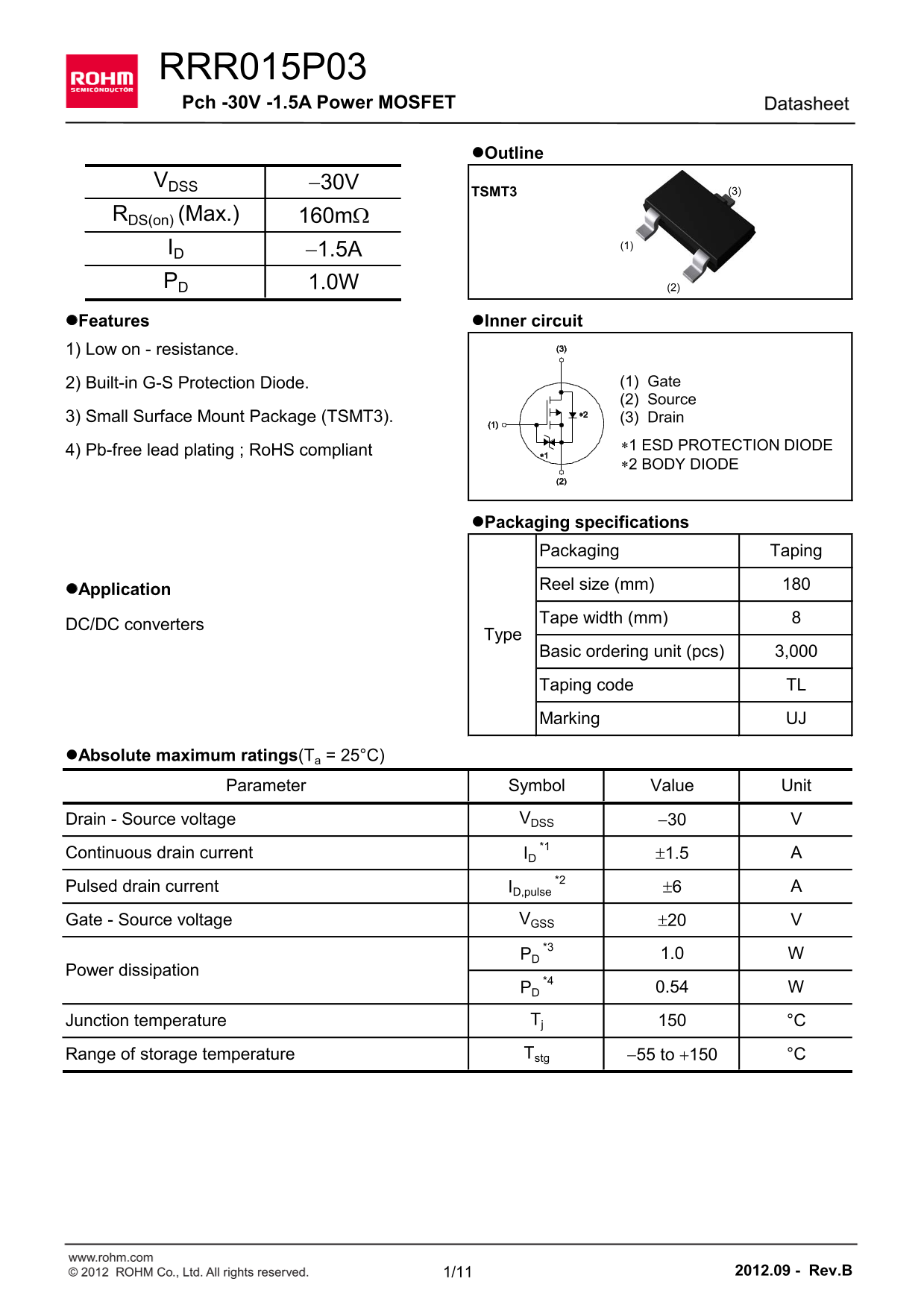

ROHM Semiconductor RRR015P03 Data Sheet - Page 1

›

Page 1 Text Content

RRR015P03 Pch -30V -1.5A Power MOSFET Datasheet

l Outline

VDSS -30V

TSMT3 (3)

RDS(on) (Max.) 160m W

ID (1)

PD 1.0W

l Features l Inner circuit 1) Low on - resistance.

2) Built-in G-S Protection Diode. (1) Gate (2) Source

3) Small Surface Mount Package (TSMT3). (3) Drain

*1 ESD PROTECTION DIODE

4) Pb-free lead plating ; Ro HS compliant

*2 BODY DIODE

l Packaging specifications Packaging Taping Reel size (mm)

l Application

Tape width (mm)

DC/DC converters

Type Basic ordering unit (pcs) 3,000 Taping code TL Marking UJ

l Absolute maximum ratings(Ta = 25°C)

Parameter Symbol Value Unit

Drain - Source voltage VDSS -30 *1

Continuous drain current ID 1.5

Pulsed drain current ID,pulse 6

Gate - Source voltage VGSS 20 *3

PD 1.0

Power dissipation

PD 0.54

Junction temperature Tj °C Range of storage temperature Tstg -55 to +150 °C

Page Summary Contents For ROHM Semiconductor RRR015P03 Data Sheet

Page 1 RRR015P03 Pch -30V -1.5A Power MOSFET Datasheet l Outline VDSS -30V TSMT3 (3) RDS(on) (Max.) 160m W ID (1) PD 1.0W l Features l Inner circuit 1) Low on - resistance. 2) Built-in G-S Protection Diode. ...

Page 2 Data Sheet RRR015P03 l Thermal resistance Values Parameter Symbol Unit Min. Typ. Max. *3 Rth JA °C/W Thermal resistance, junction - ambient Rth JA °C/W l Electrical characteristics(Ta = 25°C) Values P...

Page 3 Data Sheet RRR015P03 l Electrical characteristics(Ta = 25°C) Values Parameter Symbol Conditions Unit Min. Typ. Max. Input capacitance VGS = 0V Ciss Coss VDS = -10V p FOutput capacitance Reverse transf...

Page 4 Data Sheet RRR015P03 or al iz ed ra ns ie nt he rm al es is ta nc : r Po er is si pa tio /P ax . [ l Electrical characteristic curves Fig.1 Power Dissipation Derating Curve Fig.2 Maximum Safe Operatin...

Page 5 Data Sheet RRR015P03 ra in So ur ce re ak do Vo lta ge -V [V ra in ur re nt -I [A (B )D SS l Electrical characteristic curves Fig.5 Typical Output Characteristics(I) Fig.6 Typical Output Characteristi...

Page 6 Data Sheet RRR015P03 ra in ur re nt is si pa tio at Th re sh ol Vo lta ge -V V] S( th ) [ : I /I ax . ( l Electrical characteristic curves Fig.9 Gate Threshold Voltage Fig.10 Transconductance vs. Drai...

Page 7 Data Sheet RRR015P03 St at ic ra in So ur ce n- St at es is ta nc St at ic ra in So ur ce n- St at es is ta nc : R : R S( on ) [ S( on ) [ l Electrical characteristic curves Fig.13 Static Drain - Sour...

Page 8 Data Sheet RRR015P03 St at ic ra in So ur ce n- St at es is ta nc Sw itc hi ng im : t [n s] : R S( on ) [ l Electrical characteristic curves Fig.17 Static Drain - Source On - State Fig.18 Typical Capa...

Page 9 Data Sheet RRR015P03 So ur ce ur re nt -I [A l Electrical characteristic curves Fig.21 Source Current vs. Source Drain Voltage VGS=0V Pulsed Ta=125ºC Ta=75ºC Ta=25ºC 0.1 Ta= -25ºC Source-Drain Voltage...

Page 10 Data Sheet RRR015P03 l Measurement circuits Fig.1-1 Switching Time Measurement Circuit Fig.1-2　Switching Waveforms Fig.2-1 Gate Charge Measurement Circuit Fig.2-2 Gate Charge Waveform www.rohm.com © 2...

Page 11 Data Sheet RRR015P03 l Dimensions (Unit : mm) TSMT3 Patterm of terminal position areas e1 MILIMETERS INCHES MIN MAX MIN MAX HE 2.60 3.00 0.102 0.118 L1 0.30 0.60 0.012 0.024 Lp 0.40 0.70 0.016 0.028 M...

Page 12 Notice No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM Co.,Ltd. The content specified herein is subject to change for improvement without not...
