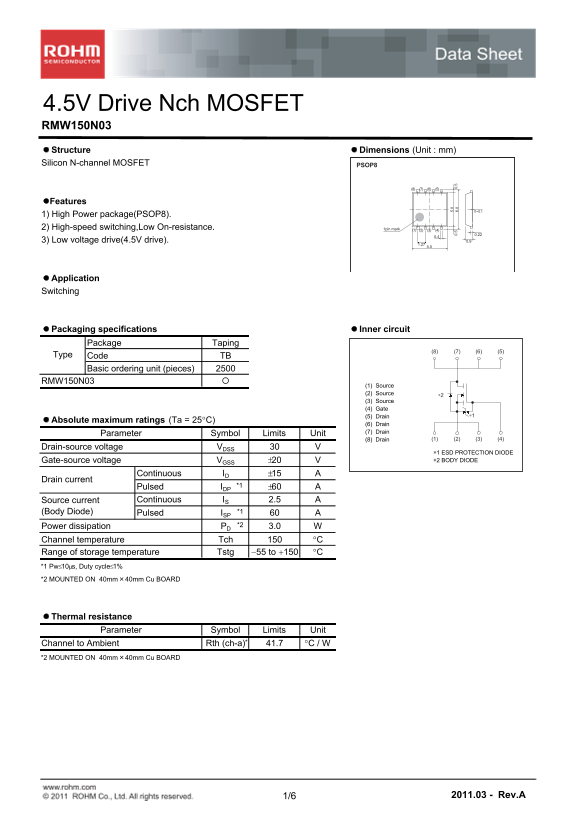

Data Sheet

4.5V Drive Nch MOSFET RMW150N03 Structure Dimensions (Unit : mm) Silicon N-channel MOSFET PSOP8

Features

1) High Power package(PSOP8). 2) High-speed switching,Low On-resistance. 1pin mark (1) (2) (3) (4)

3) Low voltage drive(4.5V drive). 0.9

Application Switching

Packaging specifications Inner circuit

Package Taping

Type Code TB Basic ordering unit (pieces) RMW150N03

(1) Source (2) Source ∗2 (3) Source (4) Gate

(5) Drain ∗1

Absolute maximum ratings (Ta = 25C)

(6) Drain (7) Drain

Parameter Symbol Limits Unit

(8) Drain (1) (2) (3) (4)

Drain-source voltage VDSS

∗1 ESD PROTECTION DIODE 5.

Gate-source voltage VGSS 20 ∗2 BODY DIODE

Continuous ID 15

Drain current

Pulsed IDP *1 60

Source current Continuous IS 2.5

(Body Diode) Pulsed ISP *1 Power dissipation PD *2 3.0

Channel temperature Tch C Range of storage temperature Tstg 55 to 150 C *1 Pw10s, Duty cycle1% *2 MOUNTED ON 40mm×40mm Cu BOARD

Thermal resistance

Parameter Symbol Limits Unit

Channel to Ambient Rth (ch-a) 41.7 C / W *2 MOUNTED ON 40mm×40mm Cu BOARD

www.rohm.com

Page Summary Contents For ROHM Semiconductor RMW150N03 Data Sheet

Page 1 Data Sheet 4.5V Drive Nch MOSFET RMW150N03 Structure Dimensions (Unit : mm) Silicon N-channel MOSFET PSOP8 Features 1) High Power package(PSOP8). 2) High-speed switching,Low On-resistance. 1pin mar...

Page 2 Data Sheet RMW150N03 Electrical characteristics (Ta = 25C) Parameter Symbol Min. Typ. Max. Unit Conditions Gate-source leakage IGSS 10 A VGS=20V, VDS=0V Drain-source breakdown voltage V(BR)DSS ID...

Page 3 Data Sheet RMW150N03 Electrical characteristic curves (Ta=25C) ST AT IC AI -S -S TA TE AI EN : I [A ES IS TA : R [m AI EN : I [A Fig.2 Typical Output Characteristics(Ⅱ) Fig.1 Typical Output Characte...

Page 4 Data Sheet RMW150N03 ST AT IC AI -S -S TA TE AT E- SO VO LT AG : V [V FO AR AN SF ER IT TA : | Yf s| [S SI ST AN : R S( )[m Fig.7 Forward Transfer Admittance Fig.8 Reverse Drain Current vs. Drain Curr...

Page 5 Data Sheet RMW150N03 AI EN : I A) Fig.13 Maximum Safe Operating Aera Fig.14 Normalized Transient Thermal Resistance vs. Pulse Width Operation in this area is limited by RDS(ON) (VGS=10V) PW=100us PW =...

Page 6 Data Sheet RMW150N03 Measurement circuits Pulse width VGS ID VDS 90% 50% 50% VGS 10% RG VDD 90% 90% trtd(on) tftd(off) ton toff Fig.1-1 Switching Time Measurement Circuit Fig.1-2　Switching Waveforms ...

Page 7 Notice Thank you for your accessing to ROHM product informations. More detail product informations and catalogs are available, please contact us. ROHM Customer Support System http://www.rohm.com/conta...
