ROHM Semiconductor RRL025P03 Data Sheet

Summary

Discover a reliable Power MOSFET designed for demanding electronic and power switching applications. This comprehensive manual provides engineers with detailed technical specifications, absolute maximum ratings, performance curves, and thermal guidelines necessary for precise system integration. It is ideal for designing industrial controls, renewable energy systems (solar), communication infrastructure, safety equipment, and overall power transmission solutions, ensuring high efficiency and compliance in critical environments.

📄 Preview ‹ PAGE OF 12 ›
‹ ROHM Semiconductor RRL025P03 Data Sheet - Page 1 ›

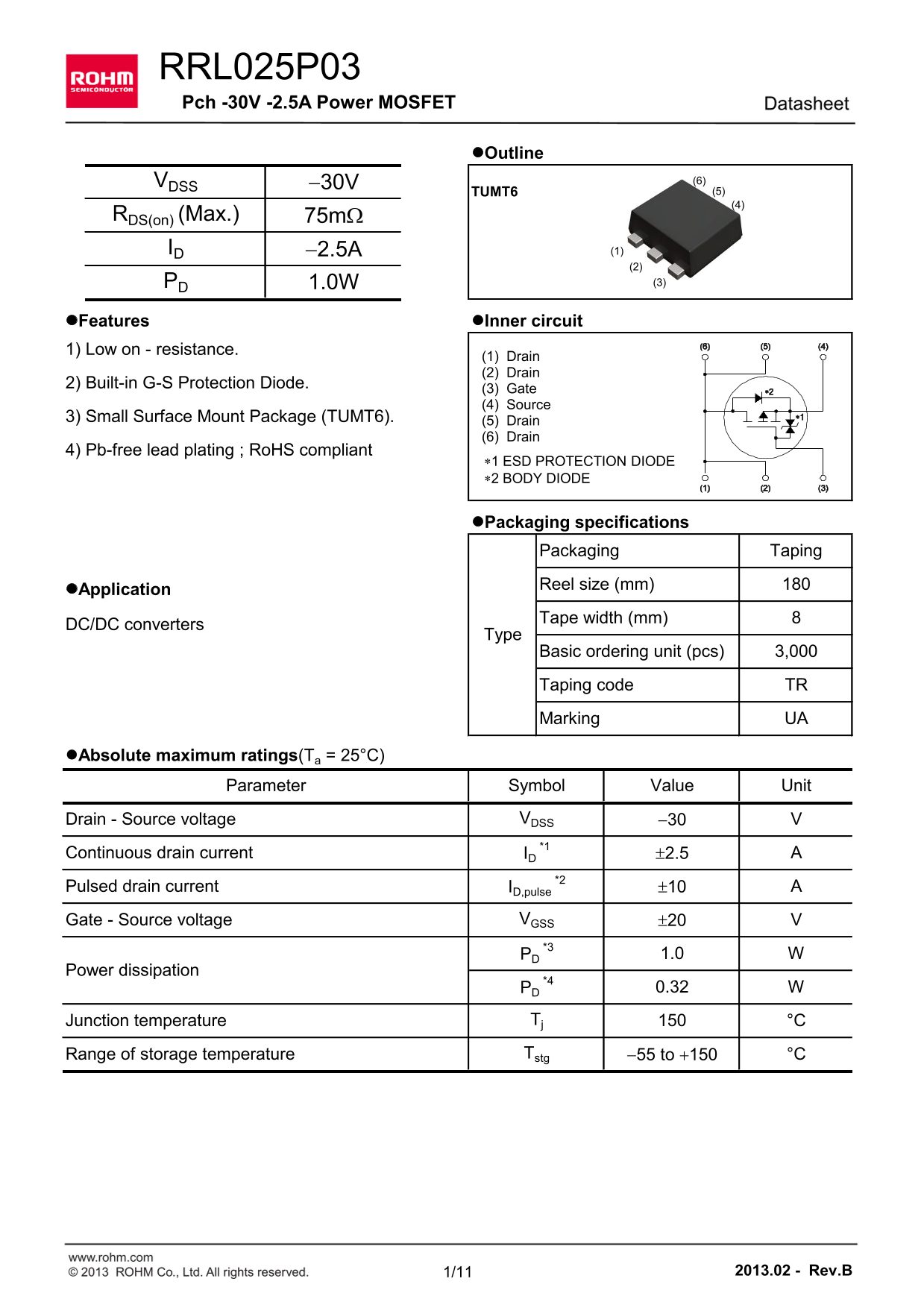

Page 1 Text Content

RRL025P03 Pch -30V -2.5A Power MOSFET Datasheet

l Outline

VDSS -30V (6) TUMT6 (5) (4)

RDS(on) (Max.) 75m W ID -2.5A (1)

(2) PD 1.0W (3)

l Features l Inner circuit 1) Low on - resistance.

(1) Drain (2) Drain

2) Built-in G-S Protection Diode.

(3) Gate (4) Source

3) Small Surface Mount Package (TUMT6). (5) Drain

(6) Drain

4) Pb-free lead plating ; Ro HS compliant

*1 ESD PROTECTION DIODE *2 BODY DIODE

l Packaging specifications Packaging Taping Reel size (mm)

l Application

Tape width (mm)

DC/DC converters

Type Basic ordering unit (pcs) 3,000 Taping code TR Marking UA

l Absolute maximum ratings(Ta = 25°C)

Parameter Symbol Value Unit

Drain - Source voltage VDSS -30 *1

Continuous drain current ID 2.5

Pulsed drain current ID,pulse 10

Gate - Source voltage VGSS 20 *3

PD 1.0

Power dissipation

PD 0.32

Junction temperature Tj °C Range of storage temperature Tstg -55 to +150 °C

www.rohm.com © 2013 ROHM Co., Ltd. All rights reserved. 1/11 2013.02 - Rev.B

Page Summary Contents For ROHM Semiconductor RRL025P03 Data Sheet

Page 1 RRL025P03 Pch -30V -2.5A Power MOSFET Datasheet l Outline VDSS -30V (6) TUMT6 (5) (4) RDS(on) (Max.) 75m W ID -2.5A (1) (2) PD 1.0W (3) l Features l Inner circuit 1) Low on - resistance. (1) Drain (2)...
Page 2 Data Sheet RRL025P03 l Thermal resistance Values Parameter Symbol Unit Min. Typ. Max. *3 Rth JA °C/W Thermal resistance, junction - ambient Rth JA °C/W l Electrical characteristics(Ta = 25°C) Values P...
Page 3 Data Sheet RRL025P03 l Electrical characteristics(Ta = 25°C) Values Parameter Symbol Conditions Unit Min. Typ. Max. Input capacitance Ciss VGS = 0V Coss VDS = -10V p FOutput capacitance Reverse transf...
Page 4 Data Sheet RRL025P03 or al iz ed ra ns ie nt he rm al es is ta nc : r Po er is si pa tio /P ax . [ l Electrical characteristic curves Fig.1 Power Dissipation Derating Curve Fig.2 Maximum Safe Operatin...
Page 5 Data Sheet RRL025P03 ra in So ur ce re ak do Vo lta ge -V [V ra in ur re nt -I [A (B )D SS l Electrical characteristic curves Fig.5 Typical Output Characteristics(I) Fig.6 Typical Output Characteristi...
Page 6 Data Sheet RRL025P03 ra in ur re nt is si pa tio at Th re sh ol Vo lta ge -V V] S( th ) [ : I /I ax . ( l Electrical characteristic curves Fig.9 Gate Threshold Voltage Fig.10 Transconductance vs. Drai...
Page 7 Data Sheet RRL025P03 St at ic ra in So ur ce n- St at es is ta nc St at ic ra in So ur ce n- St at es is ta nc : R : R S( on ) [ S( on ) [ l Electrical characteristic curves Fig.13 Static Drain - Sour...
Page 8 Data Sheet RRL025P03 St at ic ra in So ur ce n- St at es is ta nc Sw itc hi ng im : t [n s] : R S( on ) [ l Electrical characteristic curves Fig.17 Static Drain - Source On - State Fig.18 Typical Capa...
Page 9 Data Sheet RRL025P03 So ur ce ur re nt -I [A l Electrical characteristic curves Fig.21 Source Current vs. Source Drain Voltage VGS=0V Pulsed Ta=125ºC Ta=75ºC Ta=25ºC Ta= -25ºC Source-Drain Voltage : -...
Page 10 Data Sheet RRL025P03 l Measurement circuits Fig.1-1 Switching Time Measurement Circuit Fig.1-2　Switching Waveforms Fig.2-1 Gate Charge Measurement Circuit Fig.2-2 Gate Charge Waveform www.rohm.com © 2...
Page 11 Data Sheet RRL025P03 l Dimensions (Unit : mm) TUMT6 Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX HE 2.00 2.20 0.079 0.087 Lp 0.40 0.016 MILIMETERS INCHES MIN MAX MIN MAX e1 1.7...
Page 12 Notice 1) The information contained herein is subject to change without notice. 2) Before you use our Products, please contact our sales representative and verify the latest specifica- tions : 3) Alth...
