ROHM RCM1583U- A Data Sheet
Summary
This high-contrast liquid crystal module is designed for robust informational and signage applications, making it ideal for airports, train stations, retail stores, and public message boards. Featuring a wide viewing angle and low power consumption, it guarantees superior visibility for displaying numbers and text in demanding environments. The accompanying technical manual provides comprehensive details on electrical specifications, timing parameters, and best practices for installation, ensuring reliable integration into professional display systems.
Page 1 Text Content
查询RCM1583U-A供应商

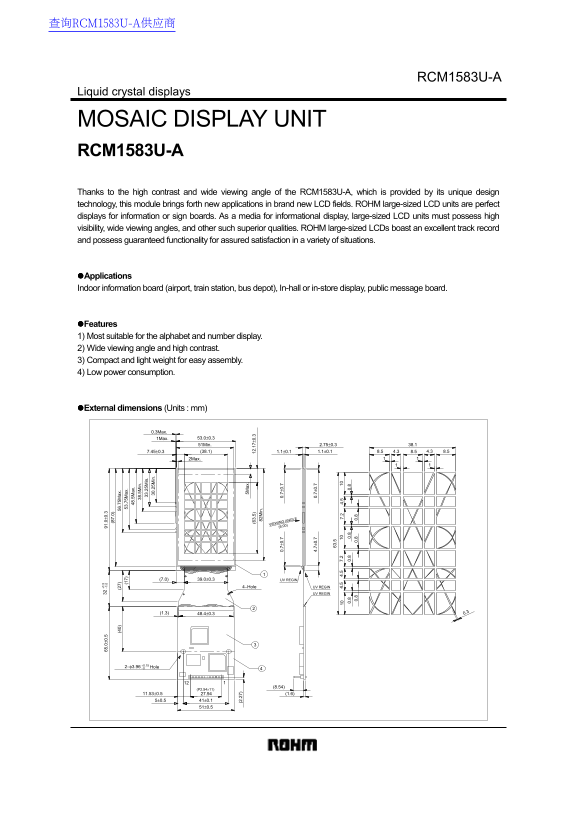

RCM1583U-A
Liquid crystal displays
MOSAIC DISPLAY UNIT (4 0) (2 7) .7 5M ax
(1 7) .7 5M ax
.5 ax .5 in .2 5M in RCM1583U-A .2 5M in
Thanks to the high contrast and wide viewing angle of the RCM1583U-A, which is provided by its unique design technology, this module brings forth new applications in brand new LCD fields. ROHM large-sized LCD units are perfect displays for information or sign boards. As a media for informational display, large-sized LCD units must possess high visibility, wide viewing angles, and other such superior qualities. ROHM large-sized LCDs boast an excellent track record
and possess guaranteed functionality for assured satisfaction in a variety of situations. (2 .2 7)
5M ax
(6 3. 5) .1 7± 0. in
!Applications
Indoor information board (airport, train station, bus depot), In-hall or in-store display, public message board.
!Features
1) Most suitable for the alphabet and number display.
2) Wide viewing angle and high contrast. 0. 0. 0. 0. 0. 0. 0.
3) Compact and light weight for easy assembly. 4) Low power consumption.
!External dimensions (Units : mm)
0.3Max.
1Max. 53.0±0.3 51Min. 2.75±0.3 38.1
2Max.
(6:00)VIEWING ANGLE
(7.0) 39.0±0.3 UV REGIN
4−Hole UV REGIN
UV REGIN
+0.15 Hole2−φ3.96 −0
