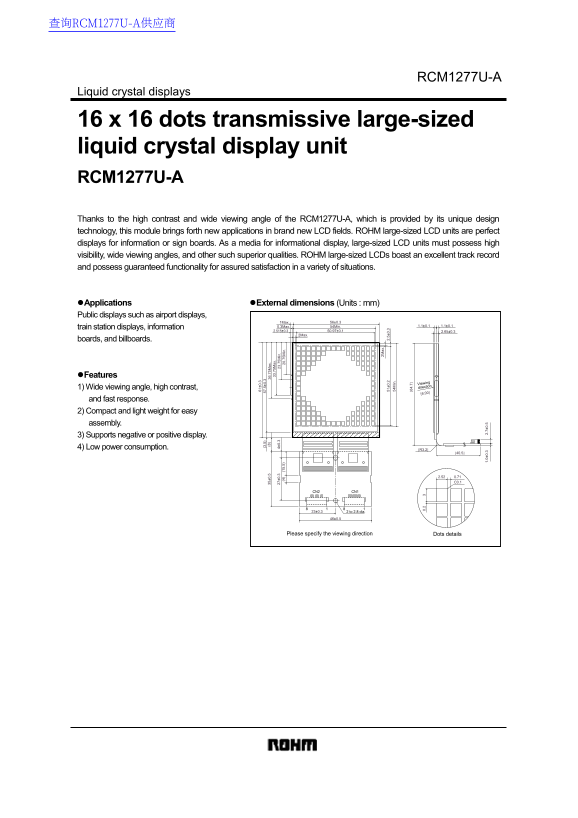

ROHM RCM1277U-A Data Sheet

查询RCM1277U-A供应商

RCM1277U-A

Liquid crystal displays

16 x 16 dots transmissive large-sized liquid crystal display unit RCM1277U-A Thanks to the high contrast and wide viewing angle of the RCM1277U-A, which is provided by its unique design technology, this module brings forth new applications in brand new LCD fields. ROHM large-sized LCD units are perfect displays for information or sign boards. As a media for informational display, large-sized LCD units must possess high visibility, wide viewing angles, and other such superior qualities. ROHM large-sized LCDs boast an excellent track record

and possess guaranteed functionality for assured satisfaction in a variety of situations. ±0 .5 (8 .7 5M ax

.7 5M ax

±0 .3 4± 0. .7 5M in (4 (1 5. 5) .7 5M in

!Applications !External dimensions (Units : mm) Public displays such as airport displays,

1Max. 56±0.3

0.3Max. 54Min. 1.1±0.11.1±0.1

train station displays, information

2Max.

boards, and billboards.

!Features

Viewing 2M ax

1) Wide viewing angle, high contrast, direction ±0 .2 2. 5± 0. [6:00] in

and fast response.

2) Compact and light weight for easy [6 4. 7]

assembly. 0.

3) Supports negative or positive display. 4) Low power consumption. [R3.2]

CN2 CN1

23±0.3 2 to 2.8 dia.

Please specify the viewing direction Dots details
