MCR03 Thick Film Resistors are 1/10W, 1608-size components designed for high reliability in harsh environments. Ideal for electronics manufacturers, they feature a ruthenium oxide dielectric, superior soldering resistance, and a wide operating temperature range of -55°C to +155°C.
Page 1 Text Content
查询MCR03供应商
MCR03
Resistors

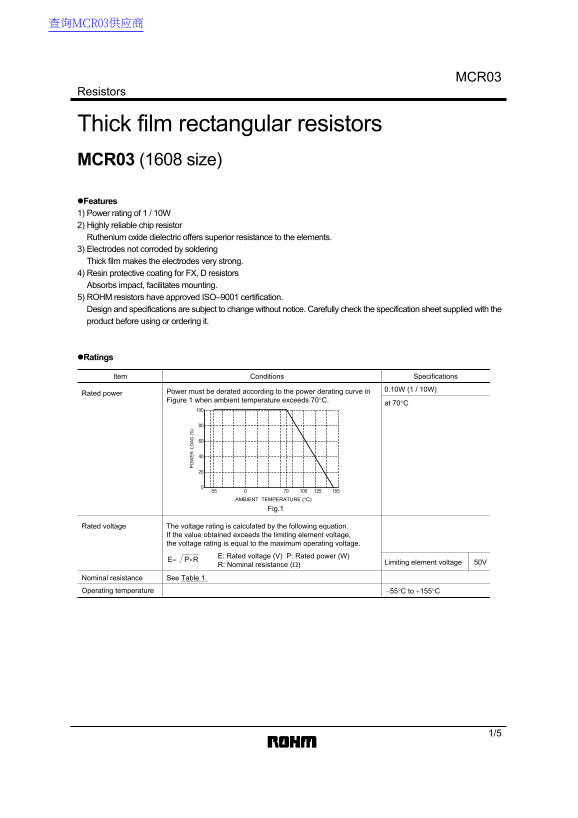

Thick film rectangular resistors MCR03 (1608 size) !Features 1) Power rating of 1 / 10W 2) Highly reliable chip resistor Ruthenium oxide dielectric offers superior resistance to the elements. 3) Electrodes not corroded by soldering Thick film makes the electrodes very strong. 4) Resin protective coating for FX, D resistors Absorbs impact, facilitates mounting. 5) ROHM resistors have approved ISO–9001 certification. Design and specifications are subject to change without notice. Carefully check the specification sheet supplied with the product before using or ordering it.
!Ratings
Item Conditions Specifications
Rated power Power must be derated according to the power derating curve in Figure 1 when ambient temperature exceeds 70°C.
at 70°C
AMBIENT TEMPERATURE (°C)
Fig.1
Rated voltage The voltage rating is calculated by the following equation. If the value obtained exceeds the limiting element voltage, the voltage rating is equal to the maximum operating voltage.
E: Rated voltage (V) P: Rated power (W)
Limiting element voltage 50V
R: Nominal resistance (Ω)
Nominal resistance See Table 1. Operating temperature −55°C to +155°C
