The KD3003-DF10A is a compact, high-density thermal printhead engineered for ultra-fast and reliable thick film printing at speeds up to 200mm/s. Ideal for demanding graphical output applications in ATM, kiosk, और ticket printing devices, this printhead supports both thermal and thermal transfer technologies. This manual provides comprehensive technical specifications, electrical characteristics, timing diagrams, and application details necessary for seamless integration into your printing system.

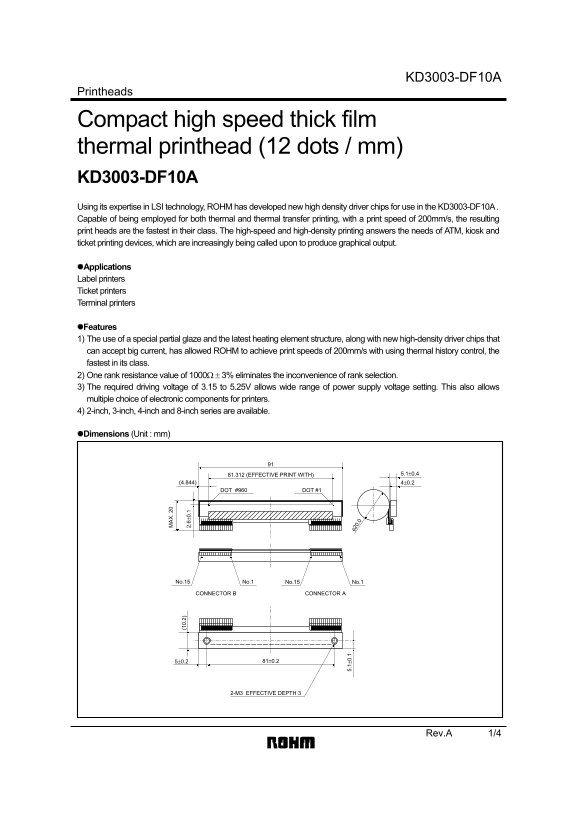

Page 1 Text Content
KD3003-DF10A
Printheads
Compact high speed thick film thermal printhead (12 dots / mm)
KD3003-DF10A
Using its expertise in LSI technology, ROHM has developed new high density driver chips for use in the KD3003-DF10A . Capable of being employed for both thermal and thermal transfer printing, with a print speed of 200mm/s, the resulting print heads are the fastest in their class. The high-speed and high-density printing answers the needs of ATM, kiosk and ticket printing devices, which are increasingly being called upon to produce graphical output.
Applications Label printers Ticket printers Terminal printers
Features 1) The use of a special partial glaze and the latest heating element structure, along with new high-density driver chips that
can accept big current, has allowed ROHM to achieve print speeds of 200mm/s with using thermal history control, the φ2
fastest in its class. 2) One rank resistance value of 1000Ω ± 3% eliminates the inconvenience of rank selection. 3) The required driving voltage of 3.15 to 5.25V allows wide range of power supply voltage setting. This also allows multiple choice of electronic components for printers. 4) 2-inch, 3-inch, 4-inch and 8-inch series are available.
Dimensions (Unit : mm)
81.312 (EFFECTIVE PRINT WITH) 5.1±0.4
DOT #960 DOT #1
No.15 No.1 No.15 No.1
CONNECTOR B CONNECTOR A
2-M3 EFFECTIVE DEPTH 3
Rev.A 1/4
Page Summary Contents For ROHM KD3003-DF10A User Guide and Manual
Manual Details
| Brand | ROHM |
|---|---|
| Pages | 5 |
| File Size | 78.16 KB |
| Published | June 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What print speed can this module achieve?
With thermal history control, the device can achieve speeds of 200mm/s, which is noted as being the fastest in its class.
What voltage range should I use for powering this printhead?
The required driving voltage falls between 3.15V and 5.25V, allowing flexibility in power supply setup.
How many total dots does this printhead support?
It supports a total dot number of 960 dots, with a maximum of 512 dots energized simultaneously.
What is the required procedure for using this device in critical applications?
When designing for high reliability equipment (like medical or aerospace devices), you must consult a sales representative and apply derating characteristics.
