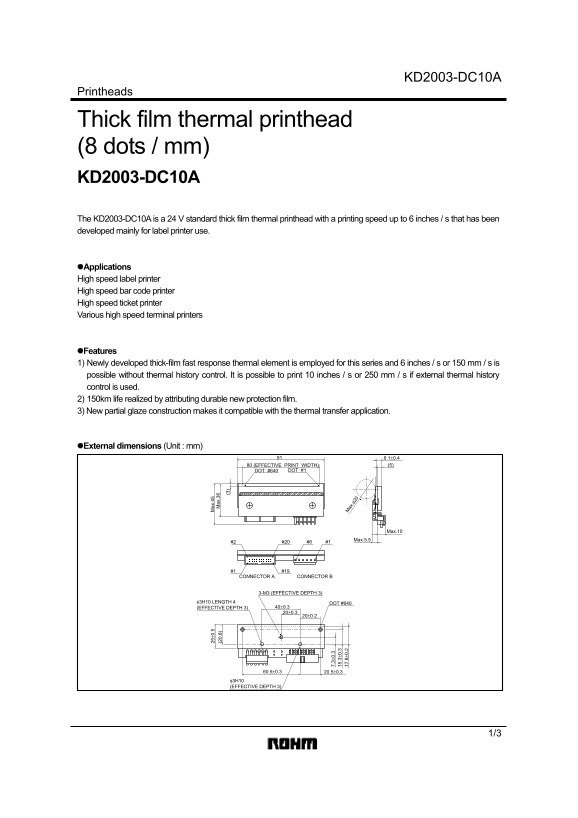

KD2003-DC10A
Printheads
Thick film thermal printhead (8 dots / mm) KD2003-DC10A
±0 .5 ax .4 The KD2003-DC10A is a 24 V standard thick film thermal printhead with a printing speed up to 6 inches / s that has been ax .3
developed mainly for label printer use.
Applications High speed label printer High speed bar code printer High speed ticket printer Various high speed terminal printers
ax Features .φ
1) Newly developed thick-film fast response thermal element is employed for this series and 6 inches / s or 150 mm / s is possible without thermal history control. It is possible to print 10 inches / s or 250 mm / s if external thermal history control is used. 2) 150km life realized by attributing durable new protection film. 3) New partial glaze construction makes it compatible with the thermal transfer application.
External dimensions (Unit : mm)
6.1±0.4 80 (EFFECTIVE PRINT WIDTH) (5)
DOT #640 DOT #1
Max.10
Max.5.5
#1 #19 CONNECTOR A CONNECTOR B
3-M3 (EFFECTIVE DEPTH 3)
DOT #640φ3H10 LENGTH 4
(EFFECTIVE DEPTH 3) 40±0.3 20±0.3
φ3H10 (EFFECTIVE DEPTH 3)
