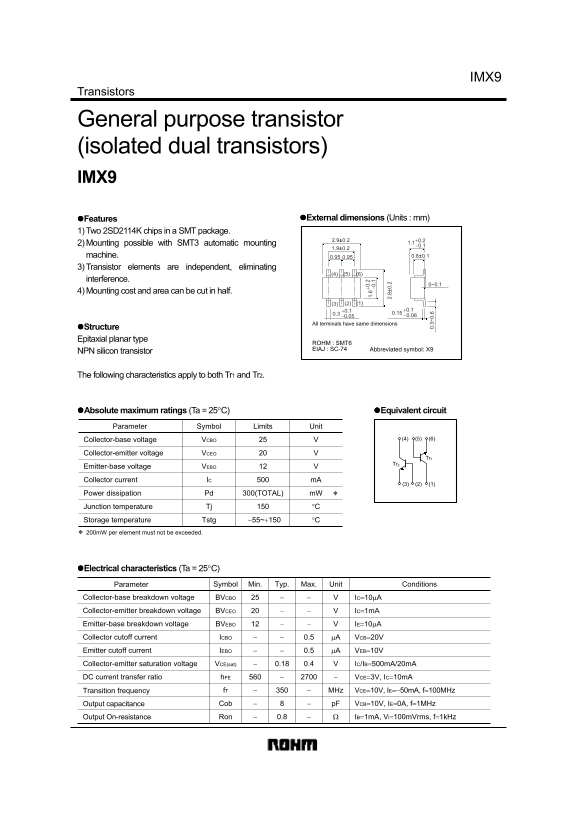

Transistors
General purpose transistor (isolated dual transistors) IMX9
Features External dimensions (Units : mm)
1) Two 2SD2114K chips in a SMT package.
2) Mounting possible with SMT3 automatic mounting 1.1+0.2 −0.1
machine. 0.95 0.95 0.8±0.1
3) Transistor elements are independent, eliminating
interference.
4) Mounting cost and area can be cut in half.
All terminals have same dimensions
Structure Epitaxial planar type
ROHM : SMT6 EIAJ : SC-74 Abbreviated symbol: X9
NPN silicon transistor
The following characteristics apply to both Tr1 and Tr2.
Absolute maximum ratings (Ta = 25°C) Equivalent circuit Parameter Symbol Limits Unit
Collector-base voltage VCBO (4) (5) (6)
Collector-emitter voltage VCEO
Emitter-base voltage VEBO Collector current IC m A
Power dissipation Pd 300(TOTAL) m W Junction temperature Tj °C Storage temperature Tstg −55~+150 °C ∗ 200m W per element must not be exceeded.
Electrical characteristics (Ta = 25°C)
Parameter Symbol Min. Typ. Max. Unit Conditions
Collector-base breakdown voltage BVCBO IC=10µA Collector-emitter breakdown voltage BVCEO IC=1m A Emitter-base breakdown voltage BVEBO IE=10µA Collector cutoff current ICBO 0.5 µA VCB=20V Emitter cutoff current IEBO 0.5 µA VEB=10V Collector-emitter saturation voltage VCE(sat) 0.18 0.4 IC/IB=500m A/20m A DC current transfer ratio h FE VCE=3V, IC=10m A
Transition frequency f T MHz VCE=10V, IE=−50m A, f=100MHz Output capacitance Cob p F VCB=10V, IE=0A, f=1MHz Output On-resistance Ron 0.8 IB=1m A, Vi=100m Vrms, f=1k Hz
