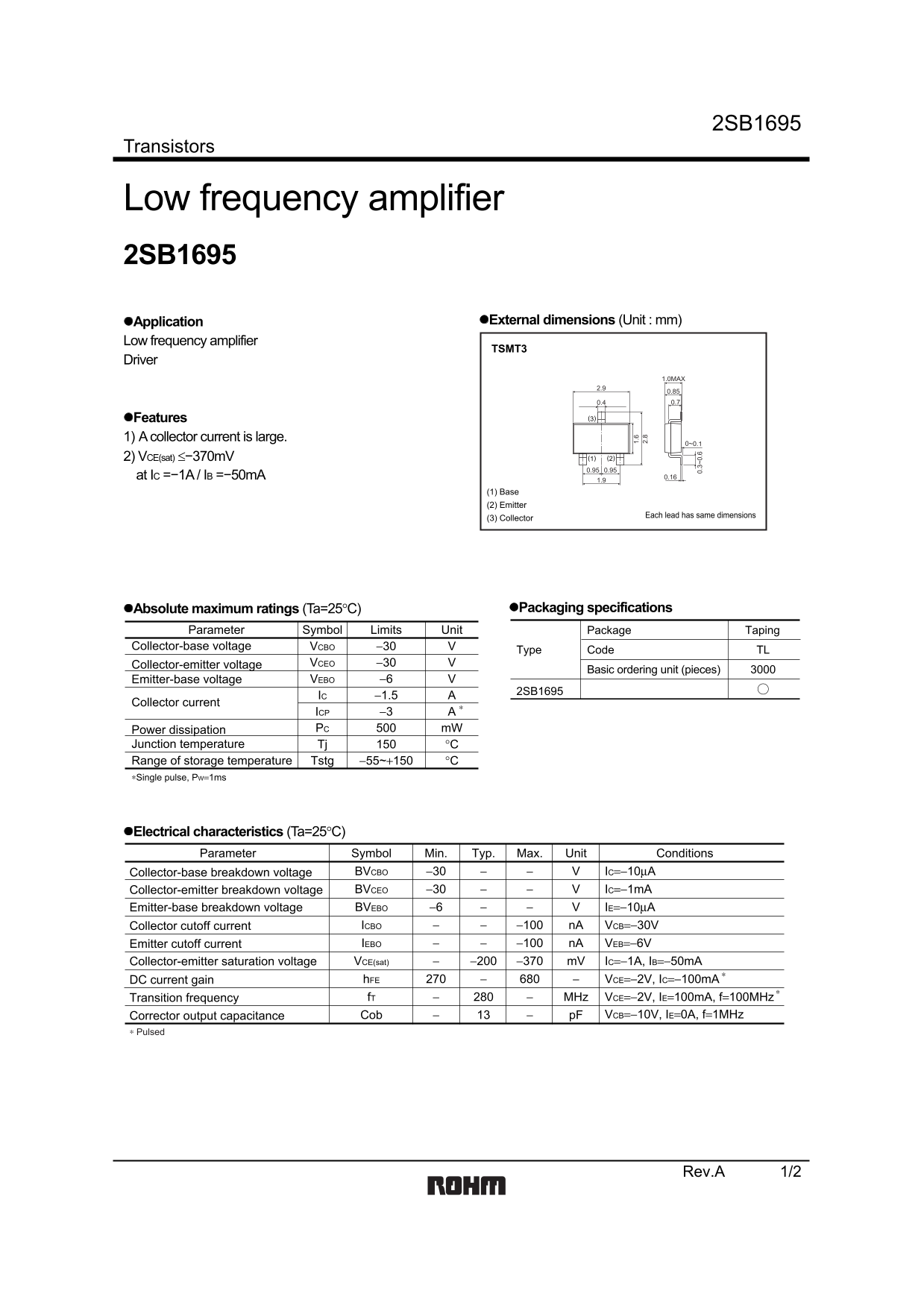

2SB1695
Transistors
Low frequency amplifier 2SB1695
Application External dimensions (Unit : mm)
Low frequency amplifier
TSMT3
Driver
1.0MAX
Features (3)
1) A collector current is large.
2) VCE(sat) ≤−370m V (2)(1) 0.950.95
at IC =−1A / IB =−50m A 0.16
(1) Base (2) Emitter
(3) Collector Each lead has same dimensions
Absolute maximum ratings (Ta=25°C) Packaging specifications
Parameter Symbol Limits Unit Package Taping
1. Collector-base voltage VCBO −30 2.
Type Code TL
Collector-emitter voltage VCEO −30
Basic ordering unit (pieces)
Emitter-base voltage VEBO −6
2SB1695
IC −1.5 0. 3~ 0.
Collector current
ICP −3
Power dissipation PC m W
Junction temperature Tj °C Range of storage temperature Tstg −55~+150 °C ∗Single pulse, PW=1ms
Electrical characteristics (Ta=25°C)
Parameter Symbol Min. Typ. Max. Unit Conditions
Collector-base breakdown voltage BVCBO −30 IC=−10µA
Collector-emitter breakdown voltage BVCEO −30 IC=−1m A
Emitter-base breakdown voltage BVEBO −6 IE=−10µA
Collector cutoff current ICBO −100 n A VCB=−30V
Emitter cutoff current IEBO −100 n A VEB=−6V Collector-emitter saturation voltage VCE(sat) −200 −370 m V IC=−1A, IB=−50m A
DC current gain h FE VCE=−2V, IC=−100m A
Transition frequency f T MHz VCE=−2V, IE=100m A, f=100MHz Corrector output capacitance Cob p F VCB=−10V, IE=0A, f=1MHz
∗ Pulsed
Rev.A 1/2
