ROHM EMH3 UMH3N IMH3A User's Manual

Summary

These complex digital NPN transistors are high-performance switching components featuring built-in bias resistors, simplifying circuit design by eliminating the need for external input resistors and minimizing parasitic effects. They are ideal for applications requiring reliable signal control such as inverter, interface, or driver circuits. This manual provides comprehensive technical specifications, electrical characteristic curves, and detailed dimensional guides, ensuring precise implementation into your electronic equipment designs.

📄 Preview PAGE OF 7

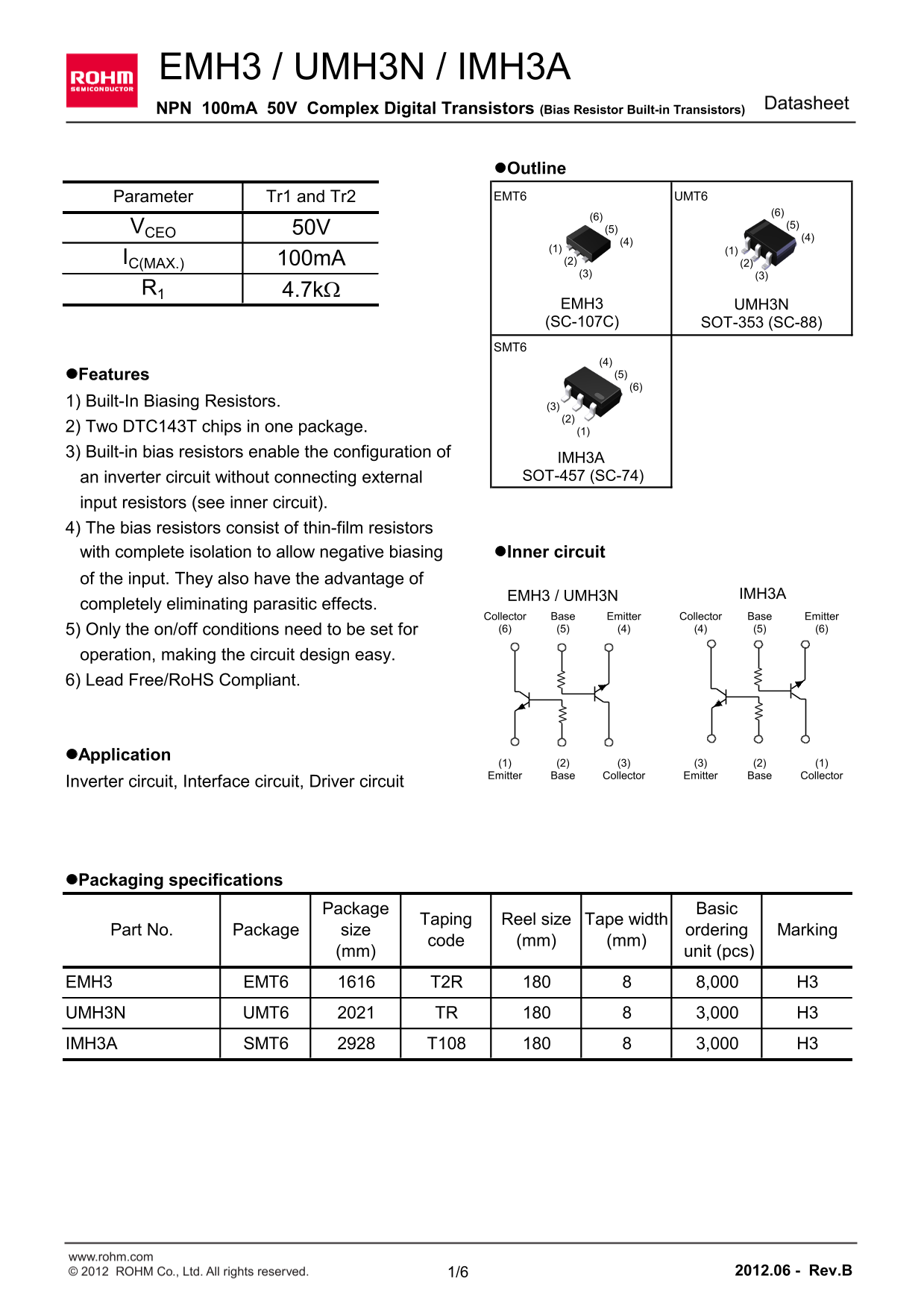

Page 1 Text Content

EMH3 / UMH3N / IMH3A

Datasheet

NPN 100m A 50V Complex Digital Transistors (Bias Resistor Built-in Transistors)

l Outline Parameter Tr1 and Tr2 EMT6 UMT6

VCEO (5)

IC(MAX.) 100m A (2) (2)

EMH3 UMH3N (SC-107C) SOT-353 (SC-88)

(4) l Features (5) (6)

1) Built-In Biasing Resistors.

2) Two DTC143T chips in one package. (1) 3) Built-in bias resistors enable the configuration of

IMH3A an inverter circuit without connecting external SOT-457 (SC-74)

input resistors (see inner circuit). 4) The bias resistors consist of thin-film resistors

with complete isolation to allow negative biasing l Inner circuit

of the input. They also have the advantage of

EMH3 / UMH3N IMH3A

completely eliminating parasitic effects.

Collector Emitter Collector Emitter 5) Only the on/off conditions need to be set for (6) (5) (4) (4) (5) (6)

operation, making the circuit design easy. 6) Lead Free/Ro HS Compliant.

l Application

(1) (2) (3) (3) (2) (1) Emitter Collector Emitter Collector

Inverter circuit, Interface circuit, Driver circuit

l Packaging specifications

Package Basic

Taping Reel size Tape width

Part No. Package size ordering Marking

code (mm) (mm)

(mm) unit (pcs)

EMH3 EMT6 T2R 8,000 H38 UMH3N UMT6 TR 3,000 H3 IMH3A SMT6 T108 3,000 H3

www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. 1/6 2012.06 - Rev.B

Page Summary Contents For ROHM EMH3 UMH3N IMH3A User's Manual

Page 1 EMH3 / UMH3N / IMH3A Datasheet NPN 100m A 50V Complex Digital Transistors (Bias Resistor Built-in Transistors) l Outline Parameter Tr1 and Tr2 EMT6 UMT6 VCEO (5) IC(MAX.) 100m A (2) (2) EMH3 UMH3N (SC...
Page 2 Data Sheet EMH3 / UMH3N / IMH3A l Absolute maximum ratings (Ta = 25°C) <For Tr1 and Tr2 in common> Parameter Symbol Values Unit Collector-base voltage VCBO Collector-emitter voltage VCEO Emitter...
Page 3 Data Sheet EMH3 / UMH3N / IMH3A l Electrical characteristic curves(Ta = 25°C) Fig.1 Grounded emitter propagation Fig.2 Grounded emitter output characteristics characteristics IB= 500μA Ta=25ºC 450μA V...
Page 4 Data Sheet EMH3 / UMH3N / IMH3A l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX HE 1.50 1.70 0.059 0.067 Lp 0.35 0.014 MILIMETERS INCHES MIN MAX MIN MAX e...
Page 5 Data Sheet EMH3 / UMH3N / IMH3A l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.80 1.00 0.039 HE 2.00 2.20 0.079 0.087 L1 0.20 0.50 0.008 0.02 Lp 0.25 0...
Page 6 Data Sheet EMH3 / UMH3N / IMH3A l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 1.00 1.30 0.039 0.051 HE 2.60 3.00 0.102 0.118 L1 0.30 0.60 0.012 0.024 Lp...
Page 7 Notice No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM Co.,Ltd. The content specified herein is subject to change for improvement without not...

Manual Details

Brand ROHM
Pages 7
File Size 639.54 KB
Published July 12, 2026
3 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

How can the IMH3A be configured as an inverter circuit?

The built-in bias resistors allow for the configuration of an inverter circuit without external input resistors.

What is the maximum collector power dissipation for the EMH3 and UMH3N models?

The total collector power dissipation for both EMH3 and UMH3N transistors does not exceed 150mW.

Can these devices be used in life-critical applications like medical instruments or aerospace systems?

No, they are not designed or manufactured for equipment requiring extremely high reliability to prevent immediate threat to human life.

What critical safety measures should be implemented when integrating these products into a design?

Users must implement safety measures such as derating, redundancy, fire control, and fail-safe designs against potential product failure.
