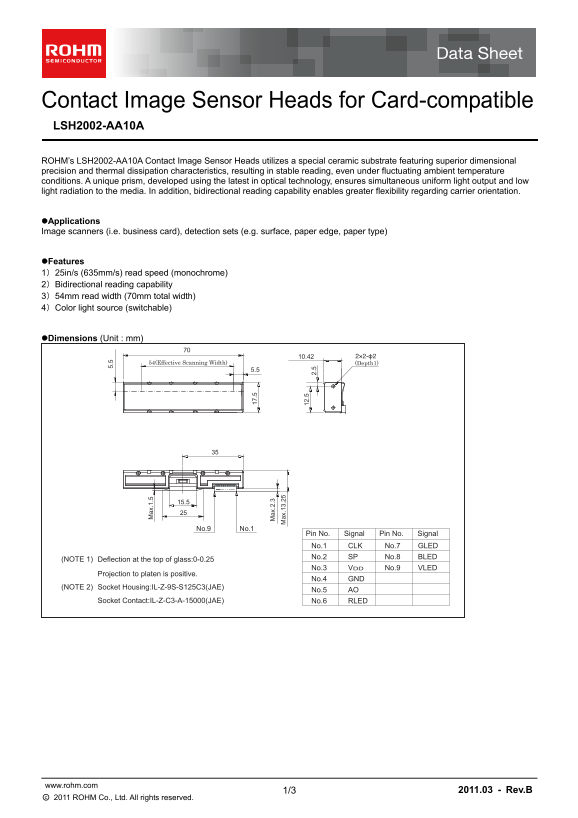

Page 1 Text Content
Contact Image Sensor Heads for Card-compatible
LSH2002-AA10A
ax .1 .5
ROHM’s LSH2002-AA10A Contact Image Sensor Heads utilizes a special ceramic substrate featuring superior dimensional precision and thermal dissipation characteristics, resulting in stable reading, even under fluctuating ambient temperature conditions. A unique prism, developed using the latest in optical technology, ensures simultaneous uniform light output and low light radiation to the media. In addition, bidirectional reading capability enables greater flexibility regarding carrier orientation.
Applications Image scanners (i.e. business card), detection sets (e.g. surface, paper edge, paper type)
Features
1）25in/s (635mm/s) read speed (monochrome) ax .2 .3 2）Bidirectional reading capability ax .1 3.
3）54mm read width (70mm total width)
4）Color light source (switchable) .5 2. 55.5
Dimensions (Unit : mm)
54(Effective Scanning Width) (Depth1)
No.1No.9
Pin No. Signal Pin No. Signal No.1 CLK No.7 GLED No.2 SP No.8 BLED
(NOTE 1) Deflection at the top of glass:0-0.25
No.3 VDD No.9 VLED
Projection to platen is positive.
No.4 GND
(NOTE 2) Socket Housing:IL-Z-9S-S125C3(JAE)
No.5 AO
Socket Contact:IL-Z-C3-A-15000(JAE) No.6 RLED
www.rohm.com
1/3 2011.03 - Rev.B
○c 2011 ROHM Co., Ltd. All rights reserved.
