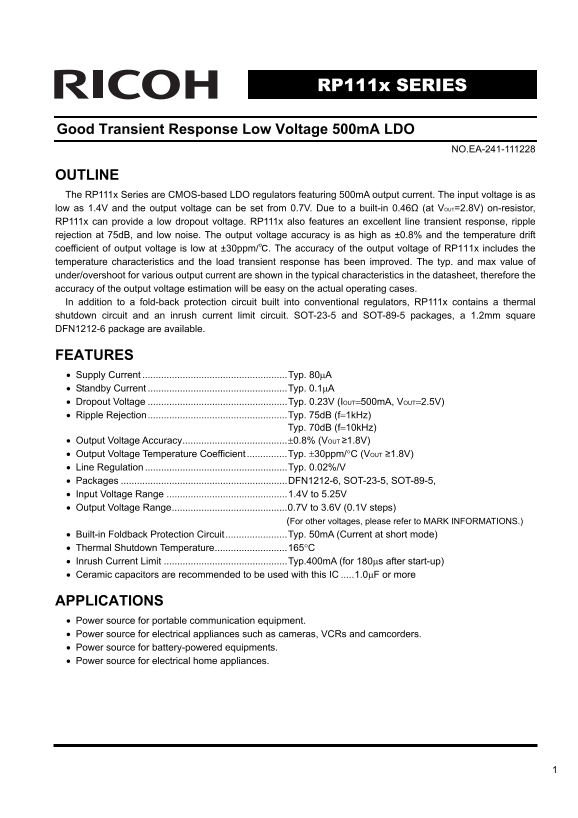

RP111x SERIES

Good Transient Response Low Voltage 500m A LDO

NO.EA-241-111228

OUTLINE The RP111x Series are CMOS-based LDO regulators featuring 500m A output current. The input voltage is as low as 1.4V and the output voltage can be set from 0.7V. Due to a built-in 0.46Ω (at VOUT=2.8V) on-resistor, RP111x can provide a low dropout voltage. RP111x also features an excellent line transient response, ripple rejection at 75d B, and low noise. The output voltage accuracy is as high as ±0.8% and the temperature drift coefficient of output voltage is low at ±30ppm/℃. The accuracy of the output voltage of RP111x includes the temperature characteristics and the load transient response has been improved. The typ. and max value of under/overshoot for various output current are shown in the typical characteristics in the datasheet, therefore the accuracy of the output voltage estimation will be easy on the actual operating cases. In addition to a fold-back protection circuit built into conventional regulators, RP111x contains a thermal shutdown circuit and an inrush current limit circuit. SOT-23-5 and SOT-89-5 packages, a 1.2mm square DFN1212-6 package are available.

FEATURES • Supply Current ......................................................Typ. 80μA • Standby Current ....................................................Typ. 0.1μA • Dropout Voltage ....................................................Typ. 0.23V (IOUT=500m A, VOUT=2.5V) • Ripple Rejection....................................................Typ. 75d B (f=1k Hz)

Typ. 70d B (f=10k Hz)

• Output Voltage Accuracy.......................................±0.8% (VOUT ≥1.8V) • Output Voltage Temperature Coefficient ...............Typ. ±30ppm/°C (VOUT ≥1.8V) • Line Regulation .....................................................Typ. 0.02%/V • Packages ..............................................................DFN1212-6, SOT-23-5, SOT-89-5, • Input Voltage Range .............................................1.4V to 5.25V • Output Voltage Range...........................................0.7V to 3.6V (0.1V steps) (For other voltages, please refer to MARK INFORMATIONS.) • Built-in Foldback Protection Circuit .......................Typ. 50m A (Current at short mode) • Thermal Shutdown Temperature...........................165°C • Inrush Current Limit ..............................................Typ.400m A (for 180μs after start-up) • Ceramic capacitors are recommended to be used with this IC .....1.0μF or more

APPLICATIONS • Power source for portable communication equipment. • Power source for electrical appliances such as cameras, VCRs and camcorders. • Power source for battery-powered equipments. • Power source for electrical home appliances.

Page Summary Contents For RICOH RP111x Series GoodTransientResponse LowVoltage 500mALDO Data Manual

Page 1 RP111x SERIES Good Transient Response Low Voltage 500m A LDO NO.EA-241-111228 OUTLINE The RP111x Series are CMOS-based LDO regulators featuring 500m A output current. The input voltage is as low as 1....
Page 2 RP111x BLOCK DIAGRAMS RP111xxx1B RP111xxx1D VDD VOUT VDD VOUT VFB VFB Vref Vref Current Limit Current Limit Thermal Shutdown Thermal Shutdown CE GND CE GND SELECTION GUIDE The output voltage, auto dis...
Page 3 RP111x PIN CONFIGURATIONS DFN1212-6 SOT-23-5 SOT-89-5 Top View Bottom View 6 5 4 6 54 (mark side) PIN DESCRIPTIONS • DFN1212-6 Pin No. Symbol Description 1 VOUT Output Pin 2 VFB Feed Back Pin 3 GND Gr...
Page 4 RP111x ABSOLUTE MAXIMUM RATINGS Symbol Item Rating Unit VIN Input Voltage 6.0 V VCE Input Voltage (CE Pin) -0.3~6.0 V VOUT Output Voltage −0.3 to VIN−0.3 V IOUT Output Current 510 m A Power Dissipatio...
Page 5 RP111x ELECTRICAL CHARACTERISTICS Unless otherwise noted, VIN=Set VOUT +1.0V(VOUT >1.5), VIN=2.5V(VOUT ≤ 1.5V), IOUT=1m A, CIN=COUT=1.0μF. values indicate −40°C ≤ Topt ≤ 85°C, unless otherwise note...
Page 6 RP111x ELECTRICAL CHARACTERISTICS Unless otherwise noted, VIN=Set VOUT +1.0V(VOUT >1.5), VIN=2.5V(VOUT ≤ 1.5V), IOUT=1m A, CIN=COUT=1.0μF. values indicate −40°C ≤ Topt ≤ 85°C, unless otherwise note...
Page 7 RP111x TYPICAL APPLICATIONS VDD VOUT VOUT RP111x series C1 VFB C2 CE GND External Parts Example: C1, C2: Ceramic Capacitor 1.0µF, Murata, GRM155B31A105KE15 Under normal conditions, please connect the ...
Page 8 RP111x TYPICAL APPLICATIONS for Adjustable Output Voltage Type VDD VOUT VOUT RP111x series C1 VFB C2 CE GND Please set 3.6V or less for the Adjustable Output Voltage Type. Also, please use 16kΩ or les...
Page 9 RP111x ut pu t V ol ta ge nd er sh oo t [ ut pu t V ol ta ge nd er sh oo t [ TRANSIENT RESPONSE The RP111x Series have been improved in overall output voltage characteristics including temperature and...
Page 10 RP111x ut pu t V ol ta ge nd er sh oo t [ ut pu t V ol ta ge nd er sh oo t [ ut pu t V ol ta ge nd er sh oo t [ CIN=1.0µF, COUT=1.0µF, IOUT=1m A 500m A (tr=tf=5.0µs) TYP. MAX. MAX. TYP. Peak Output Cu...
Page 11 RP111x ut pu t V ol ta ge nd er sh oo t [ ut pu t V ol ta ge ve rs ho ot (m CIN=1.0µF, COUT=1.0µF, IOUT=1m A 500m A (tr=tf=5.0µs) -5 TYP. MAX. -10 MAX. Peak Output Current [m A] Peak Output Current [m...
Page 12 RP111x TEST CIRCUIT VDD VOUT RP111x Series C1 VFB VC2 VOUT IOUT CE GND C1=Ceramic 1.0µF C2=Ceramic 1.0µF Basic Test Circuit VDD VOUT VOUT RP111x Series C1 VFB C2A ISS CE GND C1=Ceramic 1.0µF C2=Cerami...
Page 13 ut pu t V ol ta ge (V ut pu t V ol ta ge (V RP111x ut pu t V ol ta ge (V TYPICAL CHARACTERISTICS 1) Output Voltage vs. Output Current (C1=1.0μF, C2=Ceramic 1.0μF, Topt=25°C) RP111x071x RP111x171x VIN=...
Page 14 ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V RP111x 2) Output Voltage vs. Input Voltage (C1=Ceramic 1.0μF, C2=Ceramic 1.0μF, Topt=25°C) RP111x071x RP111x171x IOUT=1m A IOUT=1m A I...
Page 15 RP111x up pl ur re nt (µ up pl ur re nt (µ up pl ur re nt (µ 3) Supply Current vs. Input Voltage (C1=Ceramic 1.0μF, C2=Ceramic 1.0μF, Topt=25°C) RP111x071x RP111x171x Input Voltage VIN (V) Input Volta...
Page 16 ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V RP111x 4) Output Voltage vs. Temperature (C1=Ceramic 1.0μF, C2=Ceramic 1.0μF, IOUT=1m A) RP111x071x RP111x171x VIN=1.7V VIN=2.7V Tempe...
Page 17 RP111x up pl ur re nt SS (µ up pl ur re nt SS (µ up pl ur re nt SS (µ 5) Supply Current vs. Temperature (C1=Ceramic 1.0μF, C2=Ceramic 1.0μF, IOUT=0m A) RP111x071x RP111x171x VIN=1.7V VIN=2.7V Temperat...
Page 18 ro po ut ol ta ge IF (m ro po ut ol ta ge (m ro po ut ol ta ge IF (m RP111x 6) Dropout Voltage vs. Output Current (C1=Ceramic 1.0μF, C2=Ceramic 1.0μF) RP111x071x RP111x171x ro po ut ol ta ge IF (m ro ...
Page 19 ro po ut ol ta ge IF (m ro po ut ol ta ge (m RP111x ro po ut ol ta ge IF (m 7) Dropout Voltage vs. Set Output Voltage (C1=Ceramic 1.0μF, C2=Ceramic 1.0μF, Topt=25°C) Set Output Voltage VREG (V) 8)Drop...
Page 20 ro po ut ol ta ge IF (m ip pl ej ec tio (d ip pl ej ec tio (d RP111x RP111x361x Temperature Topt (゚C) ip pl ej ec tio (d ip pl ej ec tio (d 9) Ripple Rejection vs. Input Voltage (C1=none, C2=Ceramic 1...
Page 21 ip pl ej ec tio (d ip pl ej ec tio (d RP111x ip pl ej ec tio (d RP111x081x RP111x181x IOUT=1m A IOUT=30m A f=100Hz f=100Hz f=1k Hz f=1k Hz f=10k Hz f=10k Hz f=100k Hz f=100k Hz Input Voltage VIN (V) I...
Page 22 ip pl ej ec tio (d ip pl ej ec tio (d ip pl ej ec tio (d RP111x 10)Ripple Rejection vs. Frequency (C1=none, C2=Ceramic 1.0μF, Ripple=0.2Vp-p, Topt=25°C) RP111x071x RP111x171x VIN=1.7V VIN=2.7V ip pl e...
Page 23 ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V RP111x 11) Input Transient Response (C1=none, C2=Ceramic 1.0μF, IOUT=30m A, tr=tf=5μs, Topt=25°C) RP111x071x RP111x171x 2.5 3.0 2.0 2....
Page 24 ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V RP111x 12) Load Transient Response (C1=Ceramic 1.0μF, C2=Ceramic 1.0μF, Topt=25°C) RP111x071x RP111x071x tr=tf=0.5Vµs,VIN=1.7V tr=tf=5...
Page 25 ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V RP111x RP111x171x RP111x171x tr=tf=0.5µs,VIN=2.7V tr=tf=5.0µs,VIN=2.7V Output Current Output Current 50m A ⇔ 100m A 50m A ⇔ 100m A 1.6...
Page 26 ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V RP111x RP111x181x RP111x181x tr=tf=0.5µs,VIN=2.8V tr=tf=5.0µs,VIN=2.8V Output Current Output Current 1.79 Output Voltage 1.79 Output V...
Page 27 ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V RP111x RP111x281x RP111x281x tr=tf=0.5µs,VIN=3.8V tr=tf=5.0µs,VIN=3.8V Output Current Output Current 50m A ⇔ 100m A 50m A ⇔ 100m A 2.7...
Page 28 ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V RP111x RP111x361x RP111x361x tr=tf=0.5µs,VIN=4.6V tr=tf=5.0µs,VIN=4.6V Output Current Output Current 3.62 3.62 3.61 3.61 3.60 3.60 3.5...
Page 29 ut pu t V ol ta ge (V ut pu t V ol ta ge (V RP111x ut pu t V ol ta ge (V 13) Turn on Speed with CE pin (C1=Ceramic 1.0μF, C2=Ceramic 1.0μF, Topt=25°C) RP111x071x RP111x171x VIN=1.7V VIN=2.7V CE Input ...
Page 30 ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V RP111x 14) Turn off Speed with CE pin (C1=Ceramic 1.0μF, C2=Ceramic 1.0μF, Topt=25°C) RP111x071x RP111x171x VIN=1.7V VIN=2.7V CE Input...
Page 31 In pu t V ol ta ge (V ) / ut pu t V ol ta ge (V In pu t V ol ta ge (V ) / ut pu t V ol ta ge (V RP111x 15) Inrush Current (C1=Ceramic 1.0μF, IOUT=0m A, Topt=25°C) RP111x071x RP111x071x VIN=1.7V VIN=1....
Page 32 In pu t V ol ta ge (V ) / ut pu t V ol ta ge (V In pu t V ol ta ge (V ) / ut pu t V ol ta ge (V RP111x RP111x181x RP111x181x VIN=2.8V VIN=2.8V 2.4 CE Input Voltage 2.4 CE Input 0V ⇔ 2.8V Voltage Outpu...
Page 33 (Ω In pu RP111x t V ol ta ge (V ) / ut pu t V ol ta ge (V RP111x361x RP111x361x VIN=4.6V VIN=4.6V CE Input Voltage CE Input Voltage Output Voltage 2.0 Output Voltage VCE 1.0 VCE C2=2.2µF In ru sh ur r...
Page 34 RP111x RP111x181x RP111x281x VIN=2.0V to 5.25V VIN=2.8V to 5.25V Output Current IOUT (m A) Output Current IOUT (m A) RP111x361x VIN=3.6V to 5.25V Output Current IOUT (m A)
Page 35 1. The products and the product specifications described in this document are subject to change or discontinuation of production without notice for reasons such as improvement. Therefore, before decid...
