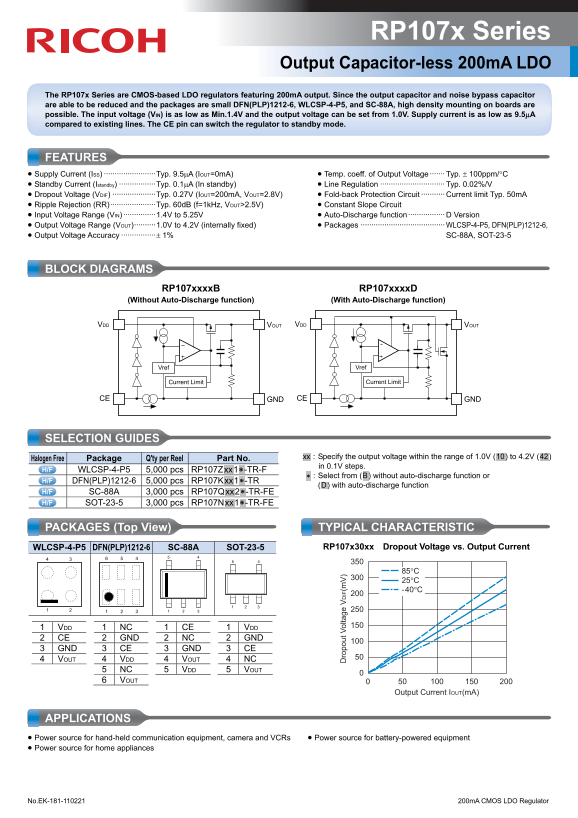

RP107x Series Output Capacitor-less 200m A LDO
The RP107x Series are CMOS-based LDO regulators featuring 200m A output. Since the output capacitor and noise bypass capacitor are able to be reduced and the packages are small DFN(PLP)1212-6, WLCSP-4-P5, and SC-88A, high density mounting on boards are possible. The input voltage (VIN) is as low as Min.1.4V and the output voltage can be set from 1.0V. Supply current is as low as 9.5μA compared to existing lines. The CE pin can switch the regulator to standby mode.
FEATURES • Supply Current (ISS) ························Typ. 9.5μA (IOUT=0m A) • Temp. coeff. of Output Voltage······· Typ. ± 100ppm/°C • Standby Current (Istandby) ·················Typ. 0.1μA (In standby) • Line Regulation ······························ Typ. 0.02%/V • Dropout Voltage (VDIF) ····················Typ. 0.27V (IOUT=200m A, VOUT=2.8V) • Fold-back Protection Circuit ··········· Current limit Typ. 50m A • Ripple Rejection (RR)·····················Typ. 60d B (f=1k Hz, VOUT>2.5V) • Constant Slope Circuit • Input Voltage Range (VIN) ···············1.4V to 5.25V • Auto-Discharge function················· D Version • Output Voltage Range (VOUT)··········1.0V to 4.2V (internally fixed) • Packages ······································· WLCSP-4-P5, DFN(PLP)1212-6, • Output Voltage Accuracy ················± 1% SC-88A, SOT-23-5
BLOCK DIAGRAMS RP107xxxx B RP107xxxx D (Without Auto-Discharge function) (With Auto-Discharge function)
VDD VOUT VDD VOUT
ro po ut ol ta ge IF (m V)
Vref Vref
Current Limit Current Limit
CE GND CE GND
SELECTION GUIDES
.xx. : Specify the output voltage within the range of 1.0V (.10.) to 4.2V (.42.)
Halogen Free Package Q'ty per Reel Part No.
n 0.1V steps.
WLCSP-4-P5 5,000 pcs RP107Z.xx.1.∗ -TR-F
.∗ : Select from (.B.) without auto-discharge function or
DFN(PLP)1212-6 5,000 pcs RP107K.xx.1.∗ -TR
(.D.) with auto-discharge function
SC-88A 3,000 pcs RP107Q.xx.2.∗ -TR-FE SOT-23-5 3,000 pcs RP107N.xx.1.∗ -TR-FE
PACKAGES (Top View) TYPICAL CHARACTERISTIC
RP107x30xx Dropout Voltage vs. Output Current
WLCSP-4-P5 DFN(PLP)1212-6 SC-88A SOT-23-5
1 VDD 1 NC 1 CE 1 VDD 2 CE 2 GND 2 NC 2 GND 3 GND 3 CE 3 GND 3 CE 4 VOUT 4 VDD 4 VOUT 4 NC
5 NC 5 VDD 5 VOUT 6 VOUT
Output Current IOUT(m A)
APPLICATIONS • Power source for hand-held communication equipment, camera and VCRs • Power source for battery-powered equipment • Power source for home appliances
No.EK-181-110221 200m A CMOS LDO Regulator
