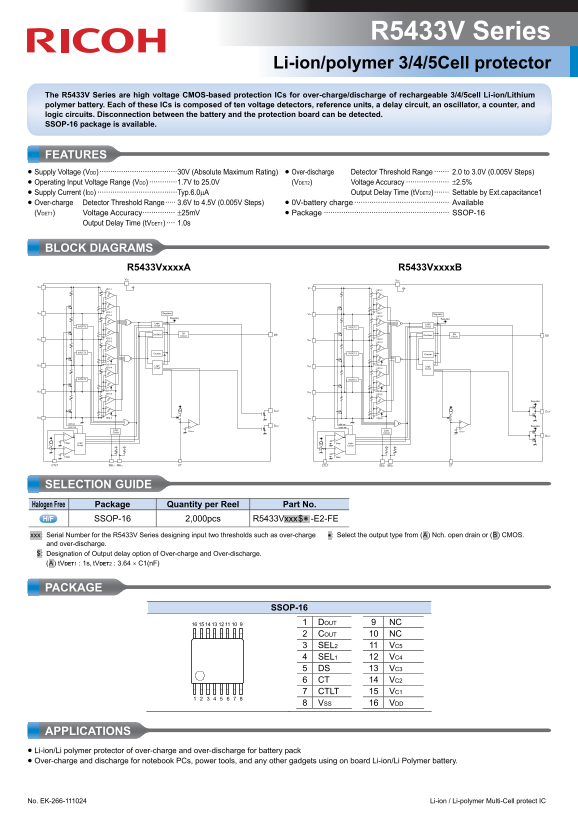

RICOH R5433V Series Li- ion polymer 3 4 5 Cell Protector

R5433V Series Li-ion/polymer 3/4/5Cell protector

The R5433V Series are high voltage CMOS-based protection ICs for over-charge/discharge of rechargeable 3/4/5cell Li-ion/Lithium polymer battery. Each of these ICs is composed of ten voltage detectors, reference units, a delay circuit, an oscillator, a counter, and logic circuits. Disconnection between the battery and the protection board can be detected. SSOP-16 package is available.

FEATURES • Supply Voltage (VDD) ···································· 30V (Absolute Maximum Rating) • Over-discharge Detector Threshold Range ······· 2.0 to 3.0V (0.005V Steps) • Operating Input Voltage Range (VDD) ············· 1.7V to 25.0V (VDET2) Voltage Accuracy ···················· ±2.5% • Supply Current (IDD) ····································· Typ.6.0μA Output Delay Time (t VDET2)······· Settable by Ext.capacitance1 • Over-charge Detector Threshold Range ····· 3.6V to 4.5V (0.005V Steps) • 0V-battery charge ············································ Available

(VDET1) Voltage Accuracy··············· ±25m V • Package ·························································· SSOP-16 Output Delay Time (t VDET1) ···· 1.0s

BLOCK DIAGRAMS R5433Vxxxx A R5433Vxxxx B

VDD VDD

VC1 VC1

VD1-1 VD1-1

VC2 VD2-1 Regulator VC2 VD2-1 Regulator

VD1-2 VD1-2

Regulator Regulator

Logic Logic 0VDET2 Circuit 0VDET2 Circuit

Oscillator DS Circuit DS Oscillator DS

VD2-2 Circuit DS

VC3 VC3 VD2-2

VD1-3 VD1-3

0VDET3 Counter 0VDET3 Counter

VC4 VD2-3 Logic VC4 VD2-3 Logic VD1-4 Circuit VD1-4 Circuit

0VDET4 0VDET4

VC5 VD2-4 VC5 VD2-4 VD1-5 VD1-5

Regulator

COUT COUT

VSS VD2-5 VSS VD2-5

odd sw DOUT odd sw

even sw even sw Regulator

Logic t VDET2 Logic t VDET2 Circuit Circuit

T Stop Logic T Stop Logic Circuit Circuit

T Start T Start

CTLT SEL1 SEL2 CT CTLT SEL1 SEL2 CT

SELECTION GUIDE Halogen Free Package Quantity per Reel Part No. SSOP-16 2,000pcs R5433V.xxx.$.∗ -E2-FE

.xxx : Serial Number for the R5433V Series designing input two thresholds such as over-charge .∗ : Select the output type from (.A.) Nch. open drain or (.B.) CMOS.

and over-discharge. Designation of Output delay option of Over-charge and Over-discharge. (.A.) t VDET1 : 1s, t VDET2 : 3.64 × C1(n F)

PACKAGE

SSOP-16

16 12 15 14 13 11 10 9 DOUT 9 NC

COUT 10 NC SEL2 11 VC5 SEL1 12 VC4 DS 13 VC3 CT 14 VC2 CTLT 15 VC1

VSS 16 VDD

APPLICATIONS • Li-ion/Li polymer protector of over-charge and over-discharge for battery pack • Over-charge and discharge for notebook PCs, power tools, and any other gadgets using on board Li-ion/Li Polymer battery.

No. EK-266-111024 Li-ion / Li-polymer Multi-Cell protect IC
