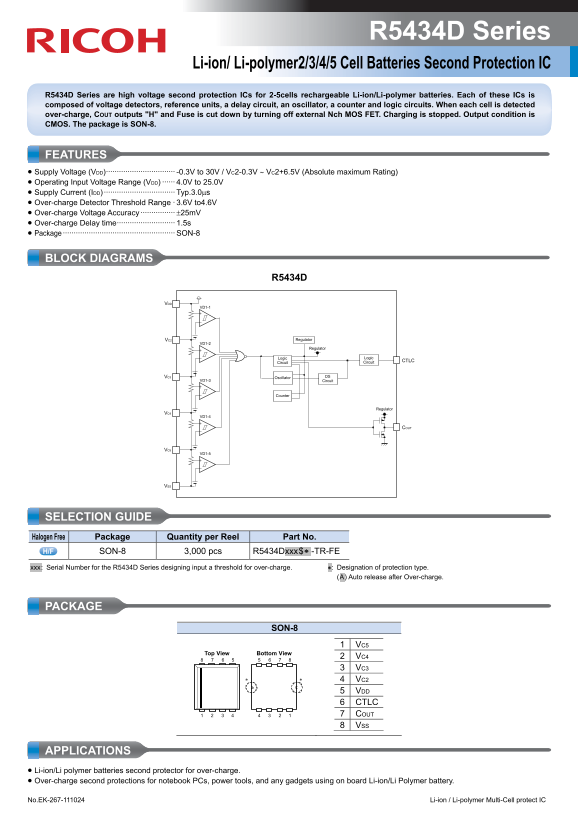

R5434D Series
Li-ion/ Li-polymer2/3/4/5 Cell Batteries Second Protection IC
R5434D Series are high voltage second protection ICs for 2-5cells rechargeable Li-ion/Li-polymer batteries. Each of these ICs is composed of voltage detectors, reference units, a delay circuit, an oscillator, a counter and logic circuits. When each cell is detected over-charge, COUT outputs "H" and Fuse is cut down by turning off external Nch MOS FET. Charging is stopped. Output condition is CMOS. The package is SON-8.
FEATURES • Supply Voltage (VDD)································ -0.3V to 30V / VC2-0.3V ∼ VC2+6.5V (Absolute maximum Rating) • Operating Input Voltage Range (VDD) ······ 4.0V to 25.0V • Supply Current (IDD) ································· Typ.3.0μs • Over-charge Detector Threshold Range 3.6V to4.6V • Over-charge Voltage Accuracy ················ ±25m V • Over-charge Delay time··························· 1.5s • Package···················································· SON-8
BLOCK DIAGRAMS
VD1-1
VC2 Regulator
VD1-2
Regulator
Logic Logic
Circuit CTLC
Circuit
VC3 Oscillator DS
VD1-3 Circuit
Counter
Regulator
VD1-4
VD1-5
SELECTION GUIDE Halogen Free Package Quantity per Reel Part No. SON-8 3,000 pcs R5434Dxxx.$.∗ -TR-FE
.xxx : Serial Number for the R5434D Series designing input a threshold for over-charge. .∗ : Designation of protection type.
(.A.) Auto release after Over-charge.
PACKAGE
SON-8
Bottom View Top View
VC4 VC3
∗ ∗ VC2
VDD CTLC COUT VSS
APPLICATIONS • Li-ion/Li polymer batteries second protector for over-charge. • Over-charge second protections for notebook PCs, power tools, and any gadgets using on board Li-ion/Li Polymer battery. No.EK-267-111024 Li-ion / Li-polymer Multi-Cell protect IC
