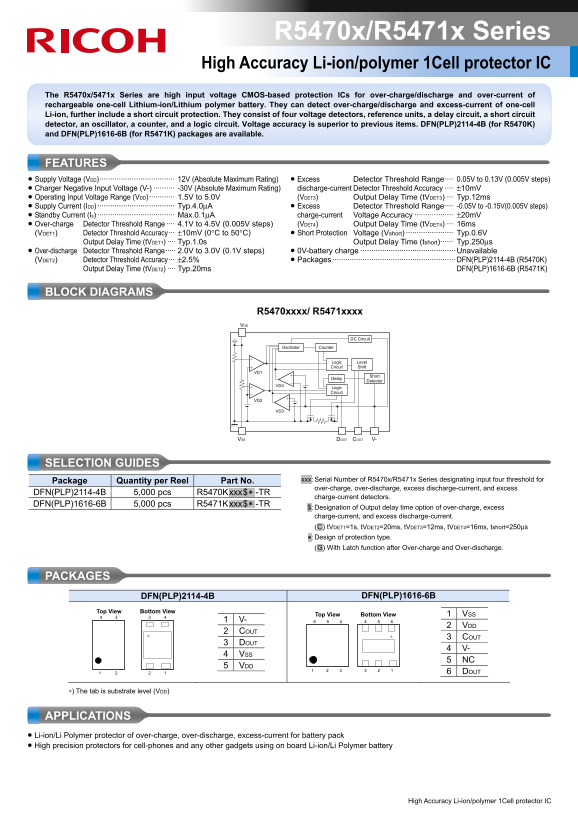

R5470x/R5471x Series High Accuracy Li-ion/polymer 1Cell protector IC
The R5470x/5471x Series are high input voltage CMOS-based protection ICs for over-charge/discharge and over-current of rechargeable one-cell Lithium-ion/Lithium polymer battery. They can detect over-charge/discharge and excess-current of one-cell Li-ion, further include a short circuit protection. They consist of four voltage detectors, reference units, a delay circuit, a short circuit detector, an oscillator, a counter, and a logic circuit. Voltage accuracy is superior to previous items. DFN(PLP)2114-4B (for R5470K) and DFN(PLP)1616-6B (for R5471K) packages are available.
FEATURES • Supply Voltage (VDD)··································· 12V (Absolute Maximum Rating) • Excess Detector Threshold Range···· 0.05V to 0.13V (0.005V steps) • Charger Negative Input Voltage (V-) ·········· -30V (Absolute Maximum Rating) discharge-current Detector Threshold Accuracy ···· ±10m V • Operating Input Voltage Range (VDD)············ 1.5V to 5.0V (VDET3) Output Delay Time (t VDET3) ··· Typ.12ms • Supply Current (IDD) ···································· Typ.4.0μA • Excess Detector Threshold Range···· -0.05V to -0.15V(0.005V steps) • Standby Current (Is) ···································· Max.0.1μA charge-current Voltage Accuracy ·················· ±20m V • Over-charge Detector Threshold Range ···· 4.1V to 4.5V (0.005V steps) (VDET4) Output Delay Time (t VDET4) ··· 16ms (VDET1) Detector Threshold Accuracy··· ±10m V (0°C to 50°C) • Short Protection Voltage (Vshort) ······················ Typ.0.6V
Output Delay Time (t VDET1) ···· Typ.1.0s Output Delay Time (tshort)······ Typ.250μs
• Over-discharge Detector Threshold Range····· 2.0V to 3.0V (0.1V steps) • 0V-battery charge ············································ Unavailable
(VDET2) Detector Threshold Accuracy··· ±2.5% • Packages ························································· DFN(PLP)2114-4B (R5470K)
Output Delay Time (t VDET2) ···· Typ.20ms DFN(PLP)1616-6B (R5471K)
BLOCK DIAGRAMS
R5470xxxx/ R5471xxxx VDD
DC Circuit
Oscillator Counter
Logic Level Circuit Shift
Short
Delay
Detector
Logic Circuit
VSS DOUT COUT V-
SELECTION GUIDES
Package Quantity per Reel Part No. .xxx : Serial Number of R5470x/R5471x Series designating input four threshold for over-charge, over-discharge, excess discharge-current, and excess
DFN(PLP)2114-4B 5,000 pcs R5470K.xxx.$.∗ -TR
charge-current detectors.
DFN(PLP)1616-6B 5,000 pcs R5471K.xxx.$.∗ -TR
Designation of Output delay time option of over-charge, excess charge-current, and excess discharge-current. (.C.) t VDET1=1s, t VDET2=20ms, t VDET3=12ms, t VDET4=16ms, tshort=250μs .∗ : Design of protection type. (.G.) With Latch function after Over-charge and Over-discharge.
PACKAGES
DFN(PLP)2114-4B DFN(PLP)1616-6B Bottom View Top View
Top View Bottom View 1 VSS
2 VDD
2 COUT
3 COUT
3 DOUT
4 VSS
5 VDD
2 1 2 1 6 DOUT
∗) The tab is substrate level (VDD)
APPLICATIONS • Li-ion/Li Polymer protector of over-charge, over-discharge, excess-current for battery pack • High precision protectors for cell-phones and any other gadgets using on board Li-ion/Li Polymer battery
