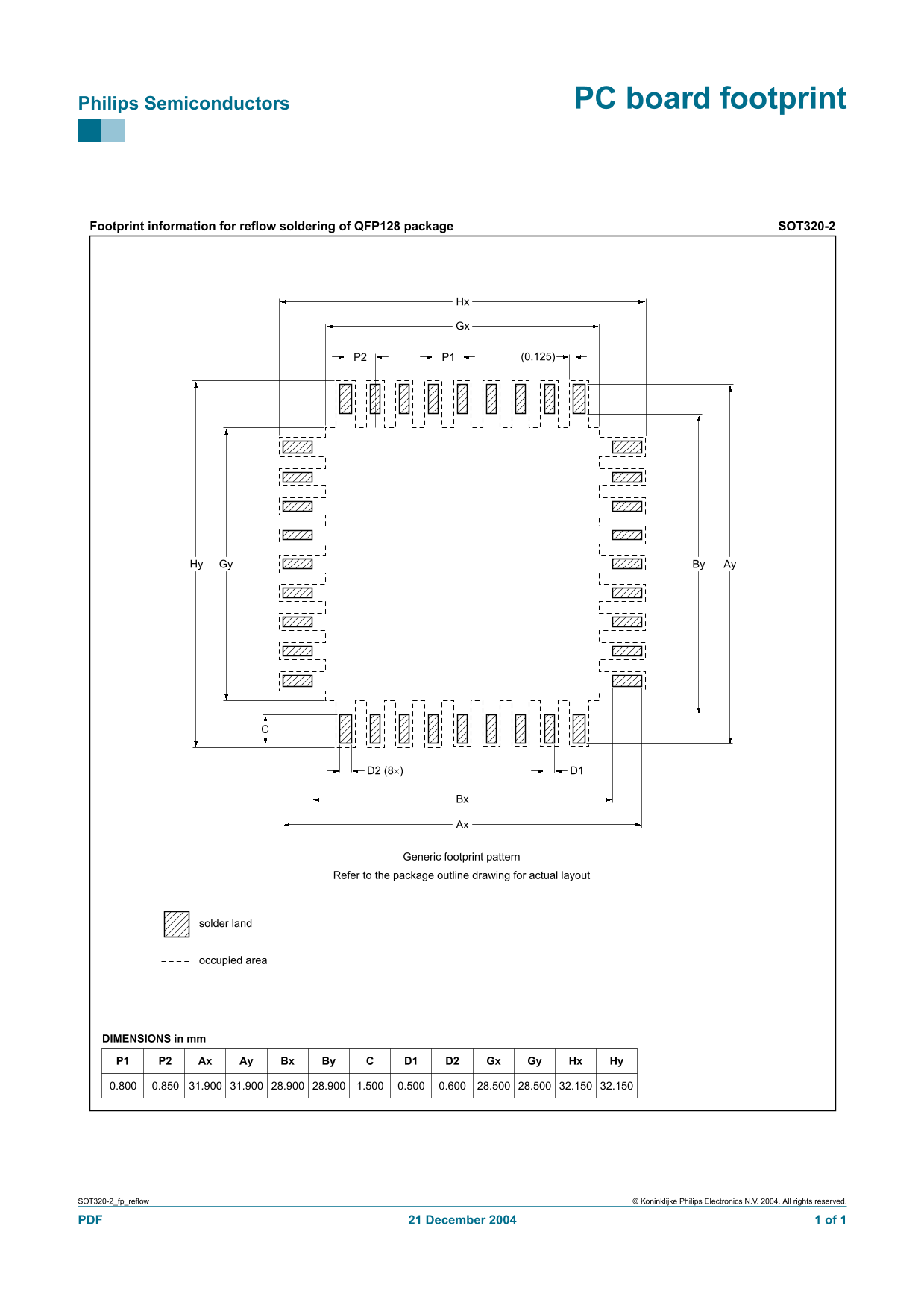

Philips Semiconductors PC board footprint
Footprint information for reflow soldering of QFP128 package SOT320-2
Gy Hy Ay By
Generic footprint pattern
Refer to the package outline drawing for actual layout
solder land
occupied area
DIMENSIONS in mm
P1 P2 Ax Ay Bx By D1 D2 Gx Gy Hx Hy
SOT320-2_fp_reflow © Koninklijke Philips Electronics N.V. 2004. All rights reserved.
PDF 21 December 2004 1 of 1
