Summary
This datasheet provides complete specifications for the Philips BUK210-50Y TOPFET high-side power switch, a monolithic protected single-channel device in a 5-pin SOT263B-01 plastic package. It details load current limiting, overtemperature protection, diagnostic status indication, and application guidance for driving lamps, motors, solenoids, and heaters in automotive and industrial systems.

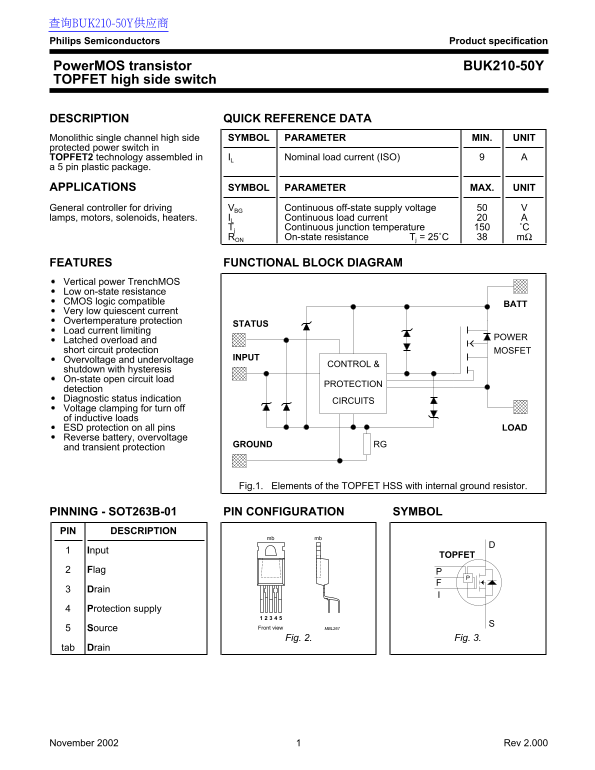

Page 1 Text Content
查询BUK210-50Y供应商 Philips Semiconductors Product specification
Power MOS transistor BUK210-50Y TOPFET high side switch
DESCRIPTION QUICK REFERENCE DATA Monolithic single channel high side SYMBOL PARAMETER MIN. UNIT protected power switch in
TOPFET2 technology assembled in IL Nominal load current (ISO)
a 5 pin plastic package.
APPLICATIONS SYMBOL PARAMETER MAX. UNIT General controller for driving VBG Continuous off-state supply voltage
lamps, motors, solenoids, heaters. IL Continuous load current
Tj Continuous junction temperature ˚C RON On-state resistance Tj = 25˚C mΩ
FEATURES FUNCTIONAL BLOCK DIAGRAM Vertical power Trench MOS Low on-state resistance CMOS logic compatible
Very low quiescent current Overtemperature protection
STATUS
Load current limiting
POWER
Latched overload and short circuit protection MOSFET
INPUT
Overvoltage and undervoltage
CONTROL &
shutdown with hysteresis On-state open circuit load
PROTECTION
detection Diagnostic status indication
CIRCUITS
Voltage clamping for turn off of inductive loads
ESD protection on all pins LOAD
Reverse battery, overvoltage
GROUND RG
and transient protection
Fig.1. Elements of the TOPFET HSS with internal ground resistor.
PINNING - SOT263B-01 PIN CONFIGURATION SYMBOL PIN DESCRIPTION
mb mb
Input
TOPFET
Drain Protection supply
Source MBL267Front view
Fig. 2. Fig. 3.
tab Drain
November 2002 Rev 2.000
Page Summary Contents For PHILIPS PowerMOS Transistor BUK210-50Y TOPFET High Side Switch Data Manual
Manual Details
| Brand | Philips |
|---|---|
| Pages | 13 |
| File Size | 189.68 KB |
| Published | June 17, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What protection mechanisms are included in this TOPFET high side switch?
It includes overtemperature protection, load current limiting, latched overload/short circuit protection, and detection for open-circuit loads.
What is the continuous junction temperature limit for operation?
The maximum continuous junction temperature (Tj) is 150 °C.
How does the device perform when handling inductive loads during turn-off?
During turn-off, the load pin voltage goes negative with respect to ground. The non-repetitive clamping energy limit must be observed (-150 mJ).
What is the on-state resistance (R_on) at standard operating conditions?
At 25°C, under a 10A load for 300 µs, the typical R_on on a general controller is 38 mΩ.
