PHILIPS CBT6810 User Guide & Data Sheet
Summary
Product specification for the Philips CBT6810 10-bit bus switch integrated circuit with precharged outputs and Schottky undershoot protection for live insertion applications, published April 1999. Features 5-ohm switch connection between ports with TTL-compatible levels, bias voltage precharging to minimize signal distortion during live insertion, and a single output enable control. Packaged in 24-pin TSSOP for 0 to 85 degrees Celsius operation, suitable for high-speed bus switching with near-ze

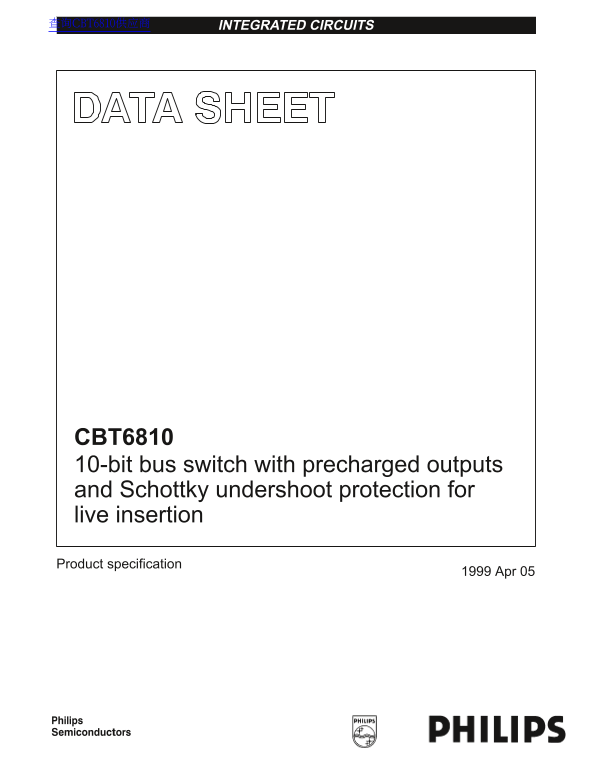

Page 1 Text Content
INTEGRATED CIRCUITS查询CBT6810供应商
CBT6810 10-bit bus switch with precharged outputs and Schottky undershoot protection for live insertion Product specification
1999 Apr 05
Page Summary Contents For PHILIPS CBT6810 User Guide & Data Sheet
Manual Details
| Brand | Philips |
|---|---|
| Pages | 8 |
| File Size | 54.91 KB |
| Published | June 16, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the recommended operating voltage range?
The suggested DC supply voltage ($ ext{V}_ ext{CC}$) range for operation is 4.0 V to 5.5 V.
How do I control the main bus switch flow?
Set the Output Enable (OE) input low when you want the ports connected; raising OE opens the switch and precharges Port B.
What are the core features of this switcher?
It offers 10-bit high-speed switching, Schottky undershoot protection for live insertion, and a selectable bias voltage (BIASV) to minimize noise.
How does the device perform electrically in terms of speed?
The typical propagation delay ($ ext{C}=50 ext{pF}, ext{V}=5 ext{V}$) is 250 ps for both high-level and low-level signals.
