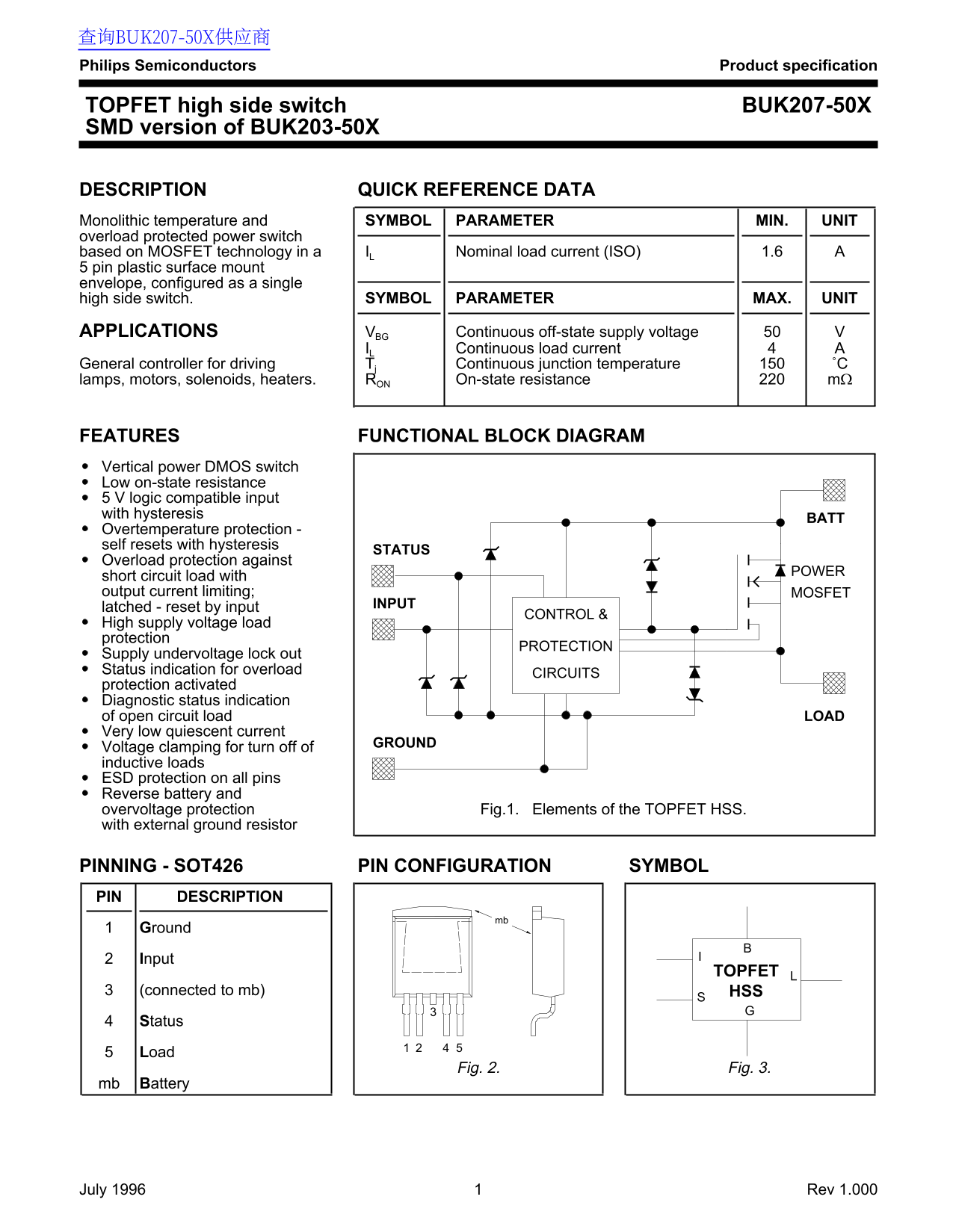

查询BUK207-50X供应商 Philips Semiconductors Product specification
TOPFET high side switch BUK207-50X SMD version of BUK203-50X
DESCRIPTION QUICK REFERENCE DATA Monolithic temperature and SYMBOL PARAMETER MIN. UNIT overload protected power switch
based on MOSFET technology in a IL Nominal load current (ISO) 1.6
5 pin plastic surface mount envelope, configured as a single high side switch. SYMBOL PARAMETER MAX. UNIT
APPLICATIONS VBG Continuous off-state supply voltage
IL Continuous load current
General controller for driving Tj Continuous junction temperature ˚C lamps, motors, solenoids, heaters. RON On-state resistance mΩ
FEATURES FUNCTIONAL BLOCK DIAGRAM Vertical power DMOS switch Low on-state resistance 5 V logic compatible input with hysteresis
Overtemperature protection - self resets with hysteresis
STATUS
Overload protection against
POWER
short circuit load with output current limiting; MOSFET
latched - reset by input INPUT
CONTROL &
High supply voltage load protection
PROTECTION
Supply undervoltage lock out Status indication for overload
CIRCUITS
protection activated Diagnostic status indication
of open circuit load LOAD
Very low quiescent current
GROUND
Voltage clamping for turn off of inductive loads ESD protection on all pins Reverse battery and overvoltage protection Fig.1. Elements of the TOPFET HSS. with external ground resistor
PINNING - SOT426 PIN CONFIGURATION SYMBOL PIN DESCRIPTION
Ground Input
TOPFET
(connected to mb) HSS Status Load
Fig. 2. Fig. 3.
mb Battery
July 1996 Rev 1.000
