PHILIPS CBT3306 Dual Bus Switch Data Sheet User Guide
Summary
Product datasheet (November 2001) for the Philips CBT3306 dual FET bus switch, featuring two independent 5Ω switch connections between two ports with TTL-compatible input levels. Maximum propagation delay: 0.25 ns typ (CL=50pF, VCC=5.0V±0.5V) from A to B or B to A, making it ideal for high-speed bus switching applications. Pin configuration (SO-8/TSSOP-8): pins 1,7=1OE,2OE (output enable, HIGH disconnects), pins 2,5=1A,2A (A port inputs), pins 3,6=1B,2B (B port outputs). OFF-state capacitance: 6

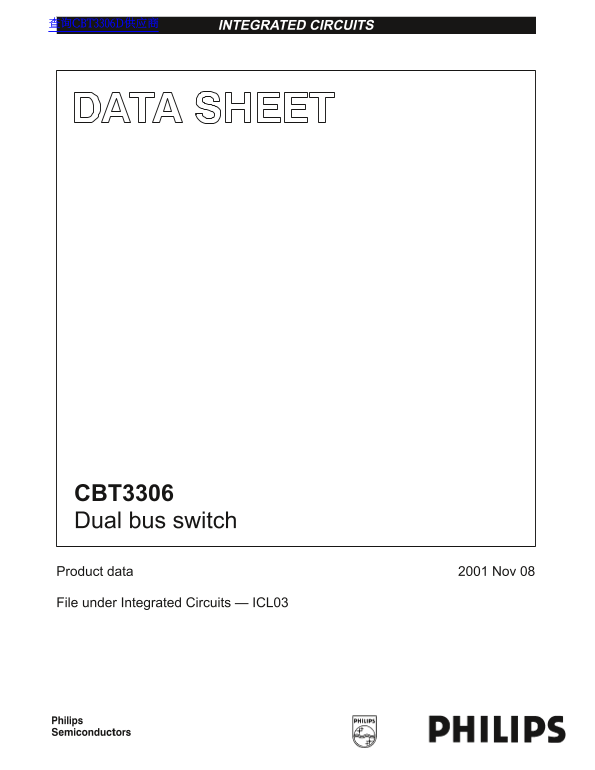

Page 1 Text Content
INTEGRATED CIRCUITS查询CBT3306D供应商
CBT3306 Dual bus switch
Product data 2001 Nov 08
File under Integrated Circuits — ICL03
Page Summary Contents For PHILIPS CBT3306 Dual Bus Switch Data Sheet User Guide
Manual Details
| Brand | Philips |
|---|---|
| Pages | 8 |
| File Size | 70.38 KB |
| Published | June 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the operating temperature range for this bus switch?
The CBT3306 is characterized for operation from –40 to +85 °C.
How do I disable one of the FET switches?
Each switch must be disabled when its associated Output Enable (OE) input is held high.
What voltages should unused control inputs be maintained at for proper function?
All unused control inputs of the device must be held at V or GND.
