The BUK101-50GL is an overload-protected Logic Level TOPFET PowerMOS transistor designed for robust power switching in demanding applications, such as automotive controls, motors, solenoids, and lamps. This device functions as a high-reliability general-purpose switch, featuring low on-state resistance (60 mΩ) and built-in protection circuits against overcurrent, overtemperature, and overvoltage transients. The manual provides comprehensive technical specifications, operating parameters, thermal data, and functional diagrams, making it essential for engineers designing reliable power management and control systems.

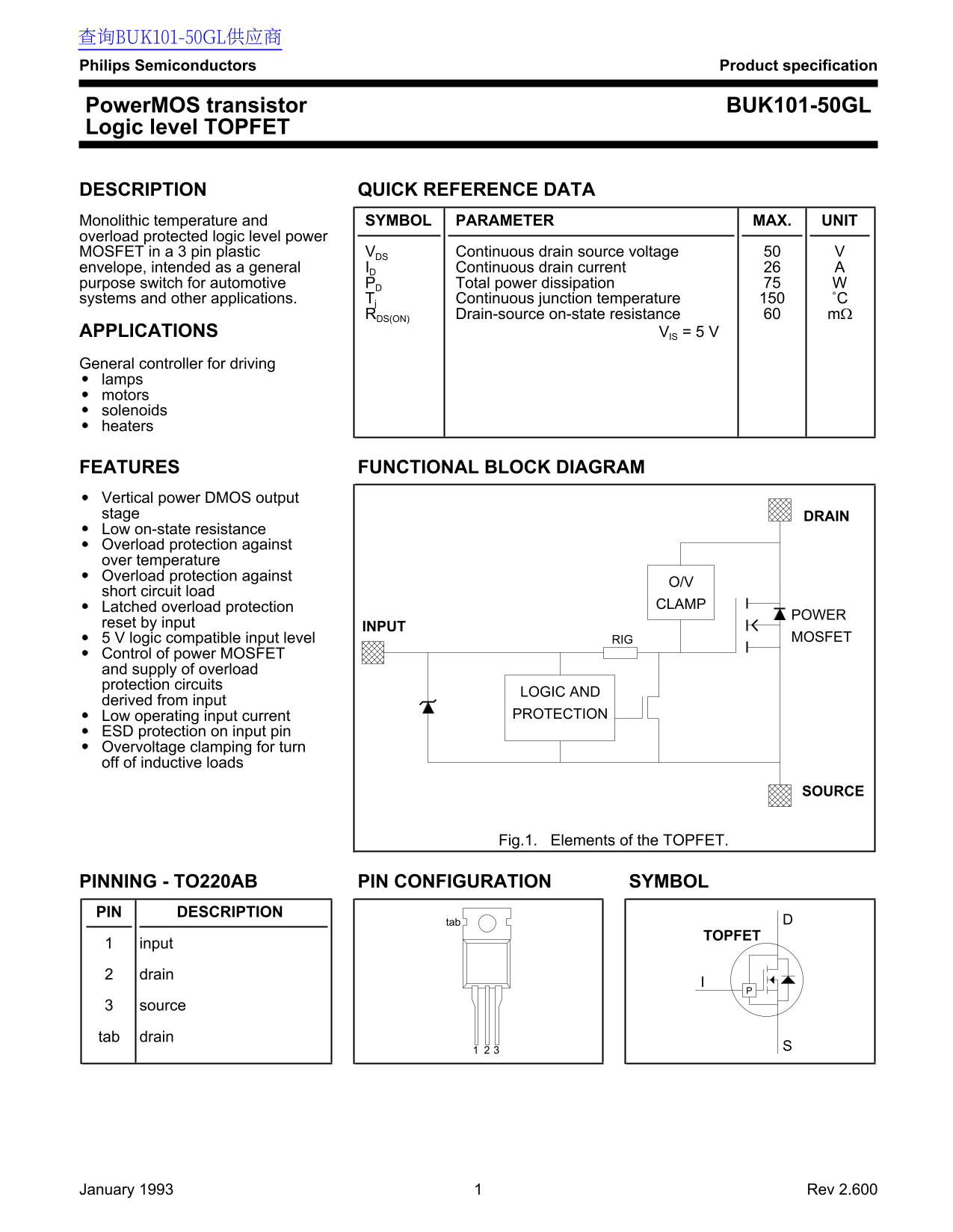

Page 1 Text Content
查询BUK101-50GL供应商 Philips Semiconductors Product specification
Power MOS transistor BUK101-50GL Logic level TOPFET
DESCRIPTION QUICK REFERENCE DATA Monolithic temperature and SYMBOL PARAMETER MAX. UNIT overload protected logic level power
MOSFET in a 3 pin plastic VDS Continuous drain source voltage
envelope, intended as a general ID Continuous drain current purpose switch for automotive PD Total power dissipation systems and other applications. Tj Continuous junction temperature ˚C
RDS(ON) Drain-source on-state resistance mΩ
APPLICATIONS VIS = 5 V General controller for driving lamps motors solenoids heaters
FEATURES FUNCTIONAL BLOCK DIAGRAM Vertical power DMOS output stage DRAIN Low on-state resistance Overload protection against over temperature Overload protection against
short circuit load
Latched overload protection CLAMP
POWER
reset by input
INPUT
5 V logic compatible input level RIG MOSFET
Control of power MOSFET and supply of overload protection circuits
LOGIC AND
derived from input
Low operating input current PROTECTION
ESD protection on input pin Overvoltage clamping for turn off of inductive loads
SOURCE
Fig.1. Elements of the TOPFET.
PINNING - TO220AB PIN CONFIGURATION SYMBOL PIN DESCRIPTION
TOPFET
input drain source
tab drain
January 1993 Rev 2.600
Page Summary Contents For PHILIPS BUK101-50GL Data Manual
Manual Details
| Brand | Philips |
|---|---|
| Pages | 11 |
| File Size | 108.28 KB |
| Published | July 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the continuous drain current limit at standard temperature?
A maximum of 26 A can be handled as the continuous drain current when operating at T ≤ 25 °C.
How does the device prevent damage from overvoltage or short circuits?
It offers latched overload protection, actively clamping overvoltages above 50V and providing self-protection against short circuit loads (up to 3A).
Can this MOSFET be used with standard logic control signals?
Yes, it is designed as a logic level TOPFET, requiring only a 5 V input voltage for control.
Is the BUK101-50GL safe for life support environments?
No, the document explicitly states these products are not designed for use in life support appliances or systems.
