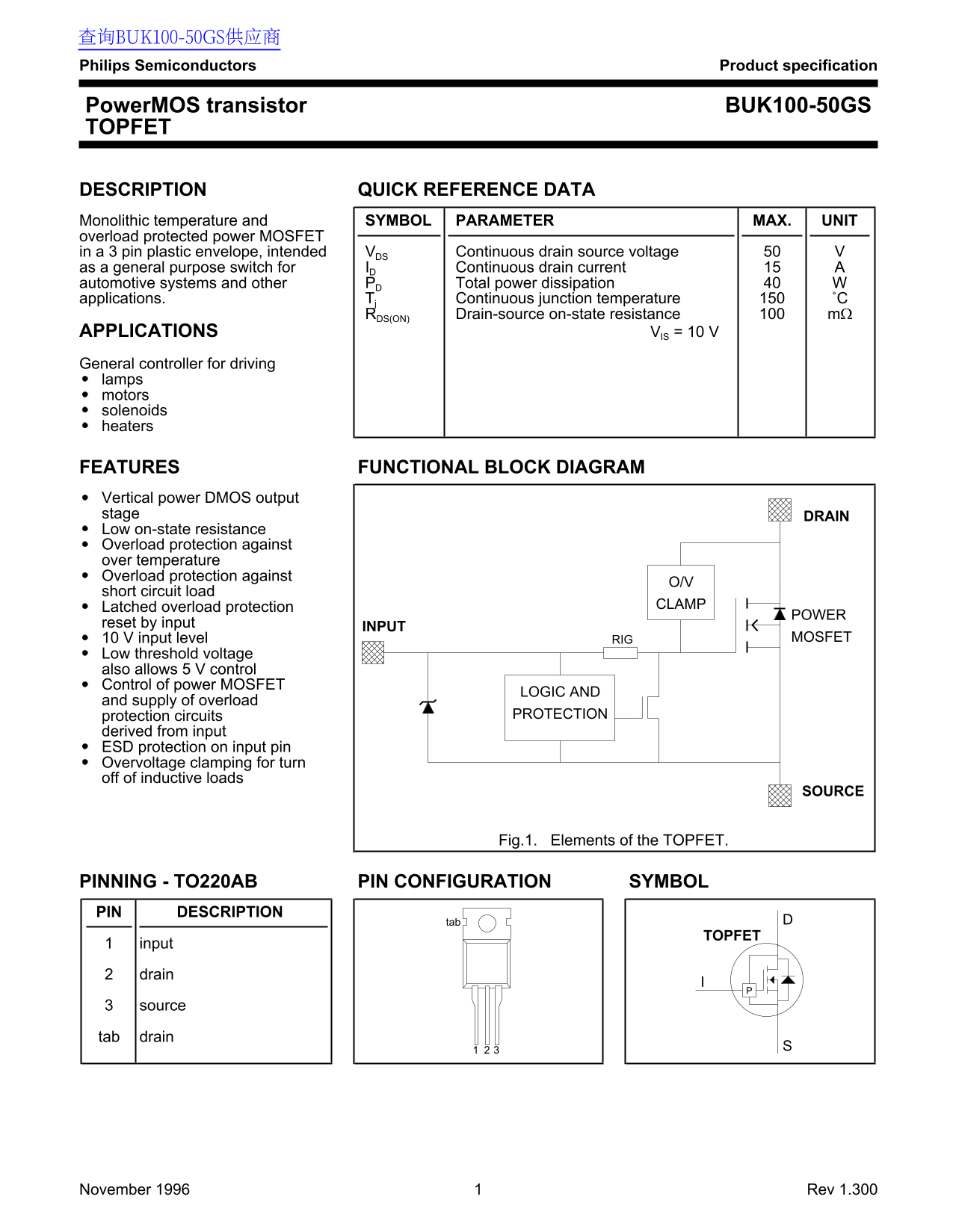

查询BUK100-50GS供应商 Philips Semiconductors Product specification
Power MOS transistor BUK100-50GS TOPFET
DESCRIPTION QUICK REFERENCE DATA Monolithic temperature and SYMBOL PARAMETER MAX. UNIT overload protected power MOSFET
in a 3 pin plastic envelope, intended VDS Continuous drain source voltage
as a general purpose switch for ID Continuous drain current automotive systems and other PD Total power dissipation applications. Tj Continuous junction temperature ˚C
RDS(ON) Drain-source on-state resistance mΩ
APPLICATIONS VIS = 10 V General controller for driving lamps motors solenoids heaters
FEATURES FUNCTIONAL BLOCK DIAGRAM Vertical power DMOS output stage DRAIN Low on-state resistance Overload protection against over temperature Overload protection against
short circuit load
Latched overload protection CLAMP
POWER
reset by input
INPUT
10 V input level RIG MOSFET
Low threshold voltage also allows 5 V control Control of power MOSFET
LOGIC AND
and supply of overload
protection circuits PROTECTION
derived from input ESD protection on input pin Overvoltage clamping for turn off of inductive loads
SOURCE
Fig.1. Elements of the TOPFET.
PINNING - TO220AB PIN CONFIGURATION SYMBOL PIN DESCRIPTION
TOPFET
input drain source
tab drain
November 1996 Rev 1.300
