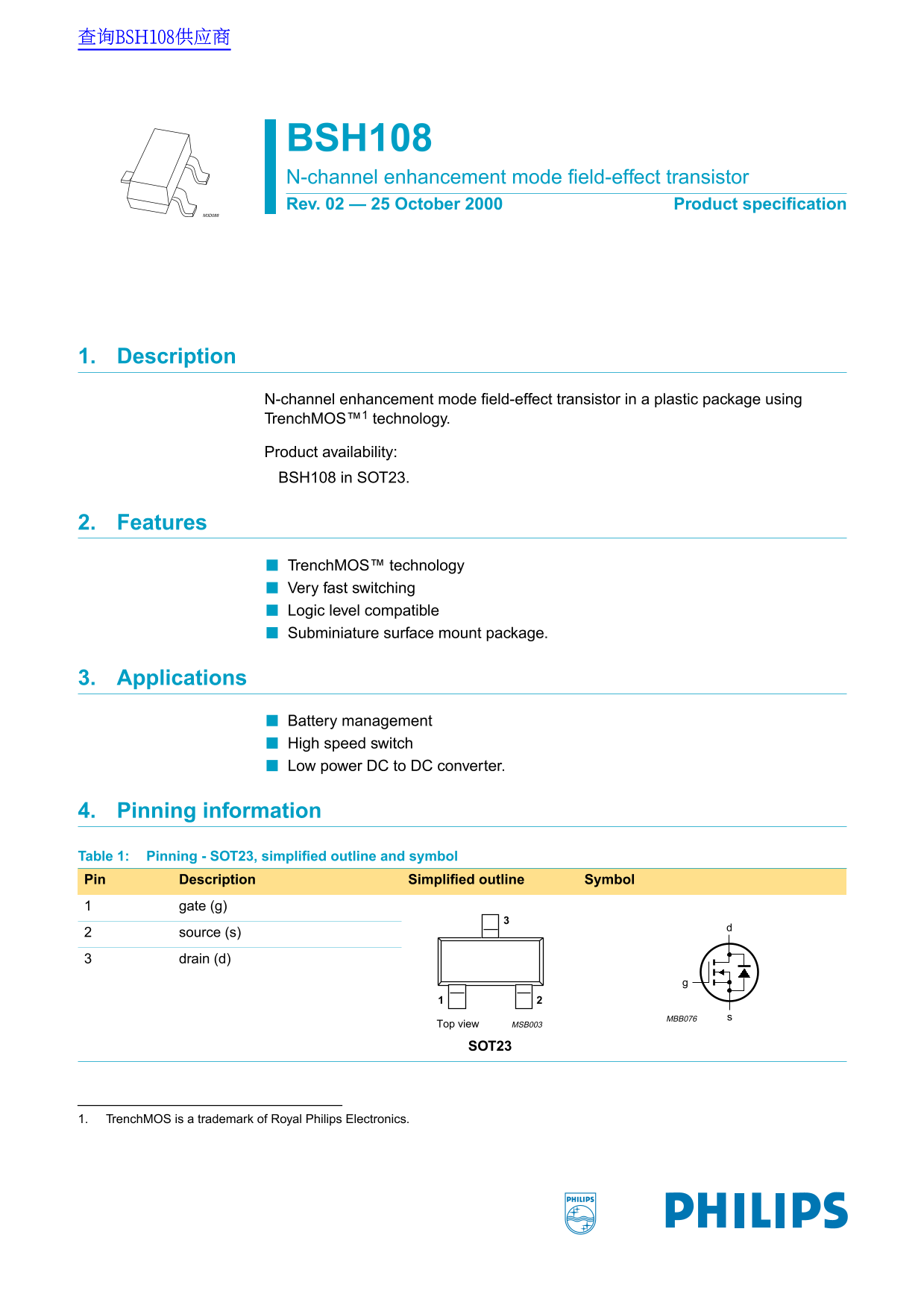

Page 1 Text Content
查询BSH108供应商
BSH108 N-channel enhancement mode field-effect transistor Rev. 02 — 25 October 2000 Product specification M3D088
1. Description
N-channel enhancement mode field-effect transistor in a plastic package using Trench MOS™1 technology.
Product availability: BSH108 in SOT23.
2. Features
Trench MOS™ technology Very fast switching Logic level compatible Subminiature surface mount package.
3. Applications
Battery management High speed switch Low power DC to DC converter.
4. Pinning information Table 1: Pinning - SOT23, simplified outline and symbol Pin Description Simplified outline Symbol
gate (g) source (s) drain (d)
MBB076
MSB003Top view
SOT23
1. Trench MOS is a trademark of Royal Philips Electronics.
