PHILIPS BLF2043 UHF Power LDMOS Transistor Data Sheet
Summary
Objective specification for the Philips BLF2043 UHF power LDMOS transistor in SOT538A flangeless ceramic cap package. Silicon N-channel enhancement mode lateral D-MOS for communication transmitters in UHF range, designed for broadband operation from HF to 2.2 GHz. RF performance at 2000 MHz in class-AB: 10W PEP output, >12dB power gain, >30% drain efficiency, <=-26dBc IM3. 75V drain-source breakdown, 2.2A DC drain current, 200 degrees C junction temperature max. Supplied in anti-static ESD packaging.
Page 1 Text Content
查询BLF2043供应商
DISCRETE SEMICONDUCTORS
DATA SHEET
book, halfpage
BLF2043 UHF power LDMOS transistor Objective specification Feb Supersedes data of 2000 Feb
Page Summary Contents For PHILIPS BLF2043 UHF Power LDMOS Transistor Data Sheet
Page 1

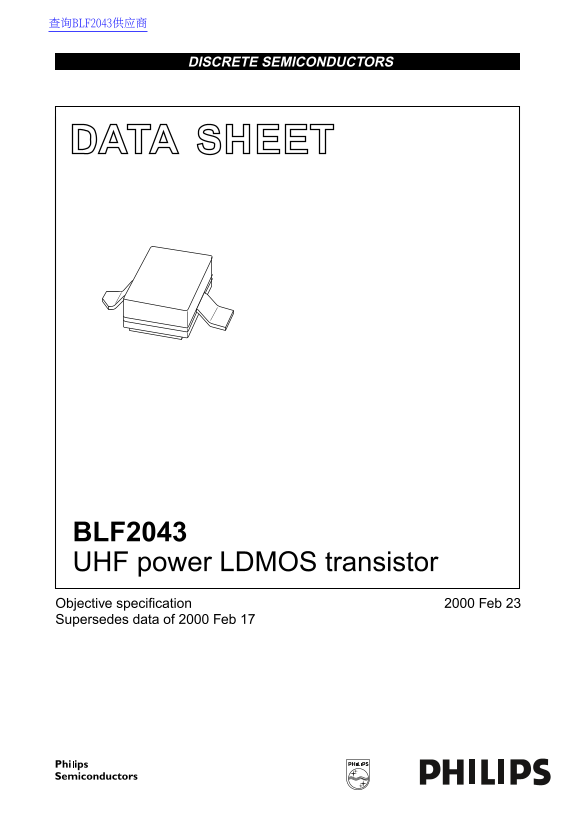

查询BLF2043供应商 DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage BLF2043 UHF power LDMOS transistor Objective specification Feb Supersedes data of 2000 Feb
Page 2
Philips Semiconductors Objective specification UHF power LDMOS transistor BLF2043 FEATURES PINNING - SOT538A High power gain PIN DESCRIPTION Easy power control drain Excellent ruggedness Source on mou...
Page 3
Philips Semiconductors Objective specification UHF power LDMOS transistor BLF2043 THERMAL CHARACTERISTICS SYMBOL PARAMETER CONDITIONS VALUE UNIT Rth j-mb thermal resistance from junction to mounting b...
Page 4
Philips Semiconductors Objective specification UHF power LDMOS transistor BLF2043 MGS999 MGT001 handbook, halfpage handbook, halfpage f (GHz) f (GHz) VDS V; IDQ m A; PL W; Th °C. VDS V; IDQ m A; PL W;...
Page 5
Philips Semiconductors Objective specification UHF power LDMOS transistor BLF2043 PACKAGE OUTLINE Ceramic surface mounted package; 2 leads SOT538A Package under development Philips Semiconductors rese...
Page 6
Philips Semiconductors Objective specification UHF power LDMOS transistor BLF2043 DEFINITIONS Data Sheet Status Objective specification This data sheet contains target or goal specifications for produ...
Page 7
Philips Semiconductors Objective specification UHF power LDMOS transistor BLF2043 NOTES
Page 8
Philips Semiconductors – a worldwide company Argentina: see South America Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB, Tel. +31 82785, Fax. +31 Australia: 3 Figtree Drive, HOMEBUSH, NSW 21...
