PHILIPS BLF202 HF VHF Power MOS Transistor Data Sheet
Summary
This datasheet provides complete specifications for the Philips BLF202 HF/VHF power MOS transistor, an N-channel enhancement mode vertical D-MOS device in an 8-lead SOT409A SMD package designed for communications transmitter applications from 1.6 to 175MHz at 12.5V supply. It details RF performance including 10dB power gain at 2W output, thermal characteristics, and application guidance for HF/VHF radio frequency power amplification.
Page 1 Text Content
查询BLF202供应商
DISCRETE SEMICONDUCTORS
DATA SHEET
BLF202 HF/VHF power MOS transistor Product specification Oct
Page Summary Contents For PHILIPS BLF202 HF VHF Power MOS Transistor Data Sheet
Page 1

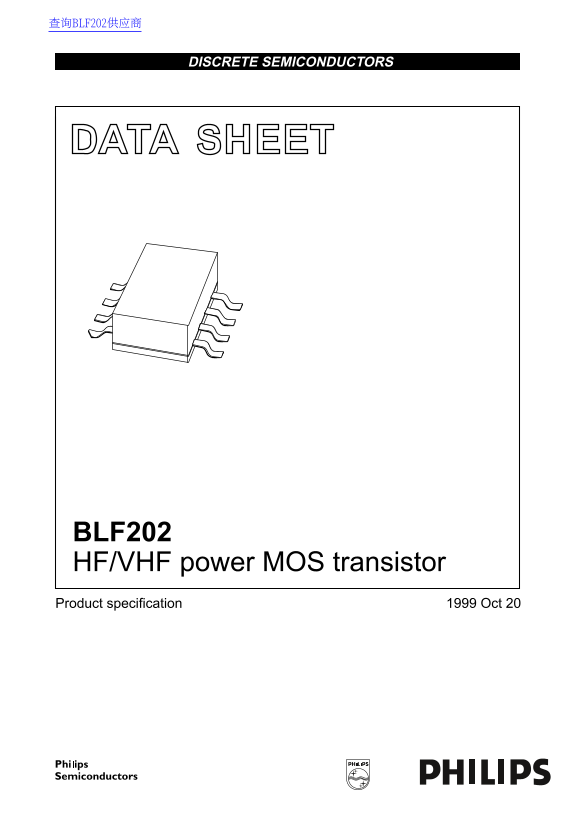

查询BLF202供应商 DISCRETE SEMICONDUCTORS DATA SHEET BLF202 HF/VHF power MOS transistor Product specification Oct
Page 2
Philips Semiconductors Product specification HF/VHF power MOS transistor BLF202 FEATURES PINNING - SOT409A High power gain PIN DESCRIPTION Easy power control 1, 8 source Gold metallization 2, 3 gate G...
Page 3
Philips Semiconductors Product specification HF/VHF power MOS transistor BLF202 LIMITING VALUES In accordance with the Absolute Maximum System (IEC 134). SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VDS...
Page 4
Philips Semiconductors Product specification HF/VHF power MOS transistor BLF202 CHARACTERISTICS Tj °C unless otherwise specified. SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT V(BR)DSS drain-source ...
Page 5
Philips Semiconductors Product specification HF/VHF power MOS transistor BLF202 MGP113 MGP114 handbook, halfpage handbook, halfpage RDSon (Ω) Tj (°C) VDS (V) VGS V; ID 0.3 A. VGS 0; f MHz. Fig.5 Drain...
Page 6
Philips Semiconductors Product specification HF/VHF power MOS transistor BLF202 APPLICATION INFORMATION FOR CLASS-B OPERATION Tmb °C; RGS Ω; unless otherwise specified. RF performance in CW operation ...
Page 7
Philips Semiconductors Product specification HF/VHF power MOS transistor BLF202 handbook, full pagewidth C10 C1 L2 output 50 Ω input R2 +VD R4 MGP118 Fig.10 Test circuit for class-B operation.
Page 8
Philips Semiconductors Product specification HF/VHF power MOS transistor BLF202 List of components (class-B test circuit) COMPONENT DESCRIPTION VALUE DIMENSIONS CATALOGUE NO. C1, C11 film dielectric t...
Page 9
Philips Semiconductors Product specification HF/VHF power MOS transistor BLF202 MGP119 MGP120 handbook, halfpage handbook, halfpage Zi (Ω) (Ω) f (MHz) f (MHz) Class B-operation; VDS 12.5 V; IDQ m A; C...
Page 10
Philips Semiconductors Product specification HF/VHF power MOS transistor BLF202 MOUNTING RECOMMENDATIONS Both the metallized groundplate and leads contribute to the heatflow. It is recommended that th...
Page 11
Philips Semiconductors Product specification HF/VHF power MOS transistor BLF202 PACKAGE OUTLINE Ceramic surface mounted package; 8 leads SOT409A H1 Bw2 2.5 5 mm scale DIMENSIONS (millimetre dimensions...
Page 12
Philips Semiconductors Product specification HF/VHF power MOS transistor BLF202 DEFINITIONS Data sheet status Objective specification This data sheet contains target or goal specifications for product...
Page 13
Philips Semiconductors Product specification HF/VHF power MOS transistor BLF202 NOTES
Page 14
Philips Semiconductors Product specification HF/VHF power MOS transistor BLF202 NOTES
Page 15
Philips Semiconductors Product specification HF/VHF power MOS transistor BLF202 NOTES
Page 16
Philips Semiconductors – a worldwide company Argentina: see South America Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB, Tel. +31 82785, Fax. +31 Australia: 3 Figtree Drive, HOMEBUSH, NSW 21...
