Philips 74F06, 74F06A, 74F07, 74F07A Data Sheet / Manual
Summary
This product specification from Philips Semiconductors (July 1992) documents the 74F06, 74F06A, 74F07, and 74F07A hex inverter and buffer drivers with open-collector outputs. The 74F06 and 74F07 offer 64 mA output drive with 12 V output termination and propagation delays of 3.5 ns and 4.5 ns respectively, while the improved 74F06A and 74F07A provide 48 mA drive with 30 V output termination and delays of 9.0 ns and 10.0 ns as performance upgrade replacements. The document includes pin configurati
Page 1 Text Content
INTEGRATED CIRCUITS查询N74F07D供应商
74F06, 74F06A, 74F07, 74F07A Inverter/buffer drivers
Product specification 1992 Jul 24
IC15 Data Handbook
Page Summary Contents For Philips 74F06, 74F06A, 74F07, 74F07A Data Sheet / Manual

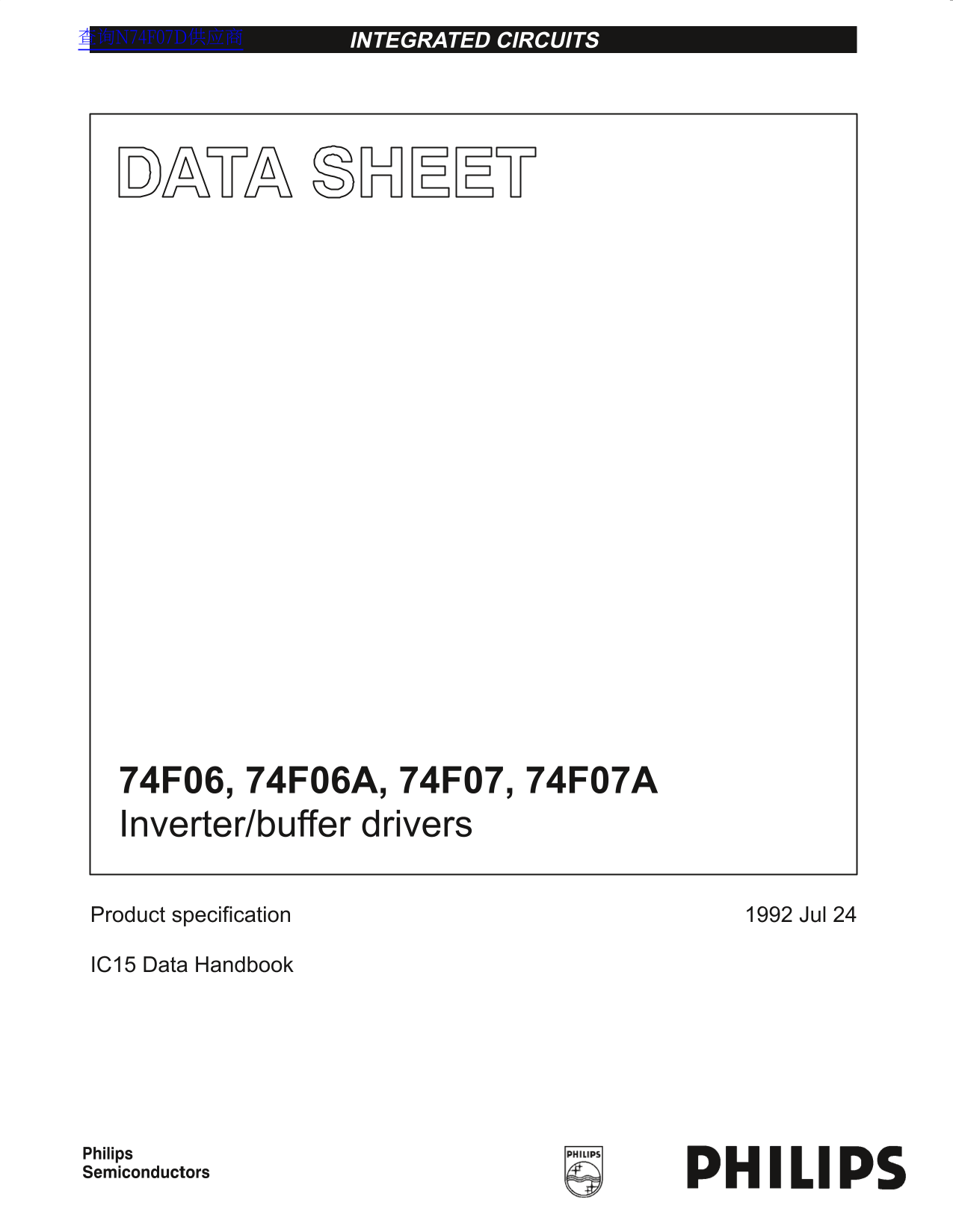

Page 1
INTEGRATED CIRCUITS查询N74F07D供应商 74F06, 74F06A, 74F07, 74F07A Inverter/buffer drivers Product specification 1992 Jul 24 IC15 Data Handbook
Page 2
Philips Semiconductors Product specification Hex inverter/buffer drivers (open-collector) FEATURES OF 74F06, 74F07 TYPICAL TYPICAL SUPPLY TYPE PROPAGATION CURRENT Open Collector output drive 64m A DEL...
Page 3
Philips Semiconductors Product specification Hex inverter/buffer drivers (open-collector) IEC/IEEE SYMBOLS SF00020 SF00021 LOGIC DIAGRAMS VCC = Pin 14 VCC = Pin 14 GND = Pin 7 GND = Pin 7 SF00022 SF00...
Page 4
Philips Semiconductors Product specification Hex inverter/buffer drivers (open-collector) ABSOLUTE MAXIMUM RATINGS (Operation beyond the limit set forth in this table may impair the useful life of the...
Page 5
Philips Semiconductors Product specification Hex inverter/buffer drivers (open-collector) DC ELECTRICAL CHARACTERISTICS (Over recommended operating free-air temperature range unless otherwise noted.) ...
Page 6
Philips Semiconductors Product specification Hex inverter/buffer drivers (open-collector) TYPICAL PROPAGATION DELAYS VERSUS LOAD FOR OPEN COLLECTOR OUTPUTS ro pa ga tio de la (n s) t PLH A versions t ...
Page 7
Philips Semiconductors Product specification Hex inverter/buffer drivers (open-collector) AC WAVEFORMS An An VMVM VMVM t PHL t PLH t PLH t PHL VMVM VMVM Yn Yn SF00025 SF00026 Waveform 1. Propagation d...
Page 8
Philips Semiconductors Product specification Inverter/buffer drivers DIP14: plastic dual in-line package; 14 leads (300 mil) SOT27-1 1992 Jul 24
Page 9
Philips Semiconductors Product specification Inverter/buffer drivers SO14: plastic small outline package; 14 leads; body width 3.9 mm SOT108-1 1992 Jul 24
Page 10
Philips Semiconductors Product specification Inverter/buffer drivers Data sheet status Data sheet Product Definition [1] status status Objective Development This data sheet contains the design target ...
Page 11
WWW.ALLDATASHEET.COM Copyright © Each Manufacturing Company. All Datasheets cannot be modified without permission. This datasheet has been download from : www.All Data Sheet.com 100% Free Data Sheet S...
