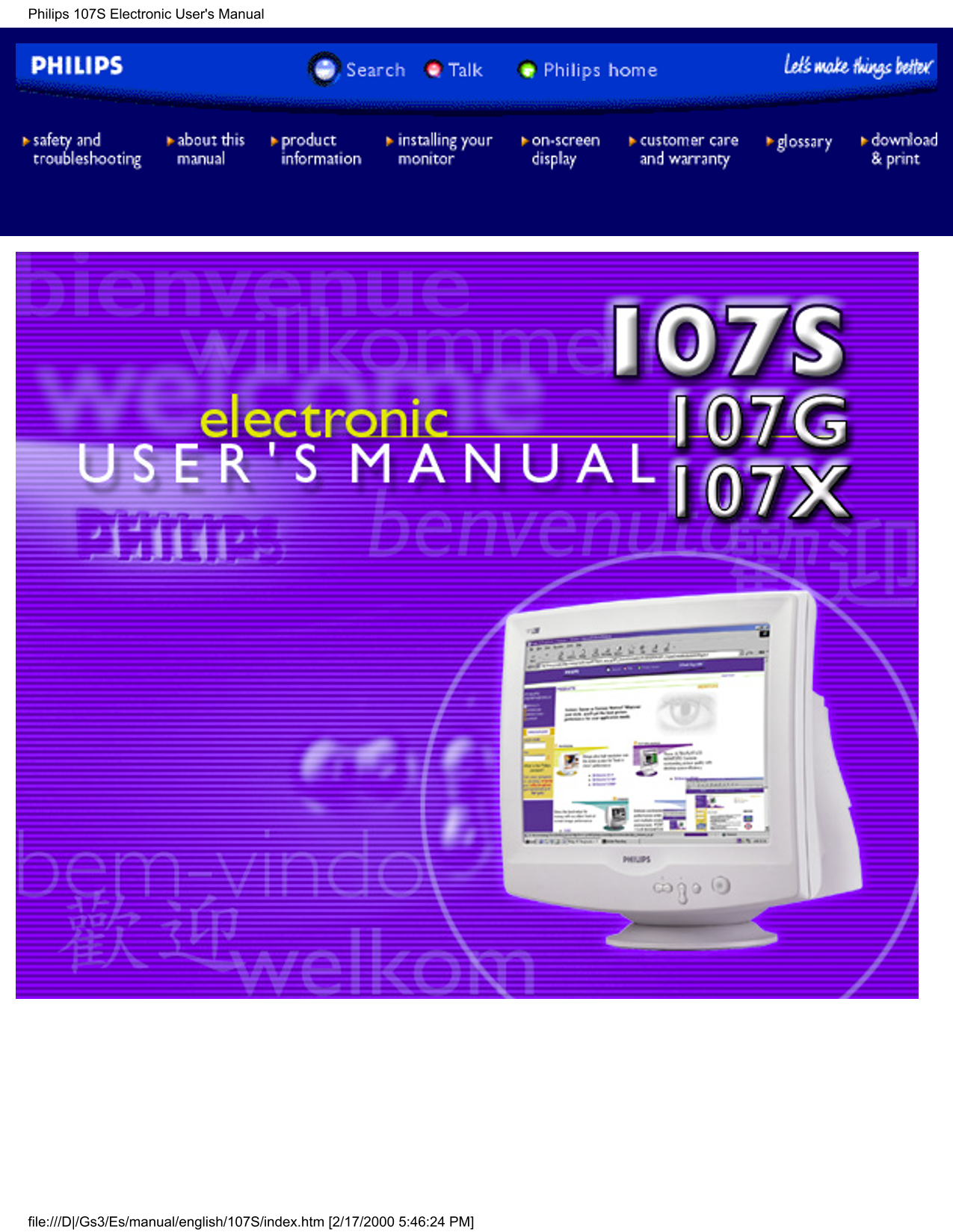

Philips 107S Electronic User's Manual
file:///D|/Gs3/Es/manual/english/107S/index.htm [2/17/2000 5:46:24 PM]
Page Summary Contents For Philips 107S 107G 107X User Guide
Page 1
Philips 107S Electronic User's Manual file:///D|/Gs3/Es/manual/english/107S/index.htm [2/17/2000 5:46:24 PM]
Page 2
Safety & Troubleshooting Safety and Troubleshooting Information Safety Precautions and Maintenance • Troubleshooting • Regulatory Information • Other Related Information Safety precautions and mai...
Page 3
About This Electronic User's Manual About This Electronic User's Manual About This Guide • Other Documents You May Need • Notational Descriptions About This Guide This electronic user's guide is inten...
Page 4
About This Electronic User's Manual Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes...
Page 5
107S Product Information Product Information Product Features • Technical Specifications • Automatic Power Saving • Physical Specification • Pin Assignment • Product Views Product Features 107S10 / 10...
Page 6
107S Product Information Technical Specifications* CRT • Size and deflection 17 inch / 41 cm ; 90° deflection angle • Dot pitch / Grille pitch 0.27 mm • Horizontal pitch 0.23 mm Shadow mask, flat squa...
Page 7
107S Product Information Automatic Power Saving If you have VESA's DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in...
Page 8
107S Product Information * These information are subject to change without notice. RETURN TO TOP OF THE PAGE Pin Assignment The 15-pin D-sub connector (male) of the signal cable (IBM systems): Pin Pin...
Page 9
107S Product Information RETURN TO TOP OF THE PAGE file:///D|/Gs3/Es/manual/english/107S/product/product.htm (5 of 5) [2/17/2000 5:51:02 PM]
Page 10
Installing your Monitor Installing your Monitor Front View • Rear View • 6G3B1X Multimedia Base (option) • PCUH411 USB Hub (option) Front View Power button switches your monitor on. OK button which wh...
Page 11
Installing your Monitor Brightness hotkey. When both the LEFT and RIGHT arrows are pressed at the same time, then the adjustment controls for BRIGHTNESS will show up. LEFT and RIGHT buttons, like the ...
Page 12
Installing your Monitor 1. Power in - attach power cable here. 2. Video In - this is a cable which is already attached to your monitor. Connect the other end of the cable to your PC. RETURN TO TOP OF ...
Page 13
On-Screen Display On-Screen Display Description of the On-Screen Display • The OSD Tree • The OSD Controls Description of the On Screen Display What is the On-Screen Display? This is a feature in all ...
Page 14
On-Screen Display RETURN TO TOP OF THE PAGE The OSD Tree Below is an overall view of the structure of the On-Screen Display. You can use this as reference when you want to later on work your way aroun...
Page 15
On-Screen Display file:///D|/Gs3/Es/manual/english/107S/osd/osddesc.htm (3 of 4) [2/17/2000 5:51:03 PM]
Page 16
On-Screen Display RETURN TO TOP OF THE PAGE file:///D|/Gs3/Es/manual/english/107S/osd/osddesc.htm (4 of 4) [2/17/2000 5:51:03 PM]
Page 17
Customer Care and Warranty Customer Care & Warranty PLEASE SELECT YOUR COUNTRY/AREA TO READ THE WARRANTY COVERED: WESTERN EUROPE: Austria • Belgium • Cyprus • Denmark • France • Germany • Greece •...
Page 18
Glossary Glossary A B C D E F G H I J K L M N O P Q R S T U V W X Y Z Autoscan A microprocessor-based feature of Philips Brilliance monitors is able to detect automatically horizontal and vertical fre...
Page 19
Glossary CE Mark CE mark is displayed on products per EMC and LV ( low Voltage Device ) directives in compliance with European Community safety, EMI and EMS requirements and is compulsory on products ...
Page 20
Glossary Points where convergence error is specified. Convergence-error correction A method of correcting for convergence error to insure that all three beams land simultaneously in the same triad. Th...
Page 21
Glossary DDC is a communication channel for displays and computers. The DDC feature allows the monitor controller to be automatically configured to make optimal use of the display without manual user ...
Page 22
Glossary Dot rate Frequency in MHz of the dot clock. It is a measure of the speed with which data is transferred between the video card and subsequent processing circuitry. Also known as video dot rat...
Page 23
Glossary In 1991, the Swedish Tjänstemannens Central Organization (TCO, Swedish confederation of Professional Employees ) set a standard even more severe than MPR-II, especially for alternating electr...
Page 24
Glossary Also called line frequency and expressed in k Hz, it is the number of video lines written on the screen every second (from left to right). The higher the horizontal scanning frequency, the be...
Page 25
Glossary Linearity The degree to measure the actual location of a pixel on the screen corresponds with its intended location. ( see figure ) Line frequency See Horizontal scanning frequency. Low-emiss...
Page 26
Glossary Moiré effect A fringe pattern arising from the interference between two superimposed line patterns. In a monitor it comes from the interference between the shadow mask pattern and the video i...
Page 27
Glossary screen area, resulting in an image that is smaller (and less legible) than it needs to be. RETURN TO TOP OF THE PAGE Parallelogram Distortion See Geometric distortion. Phosphor Generic name f...
Page 28
Glossary Raster The area on screen that electron beam can reach. Refresh rate See Vertical scanning frequency. Resolution The number of pixels that can be displayed on the screen. The resolution is sp...
Page 29
Glossary Anti-Static coatings Due to bombardment by beam electrons, monitor screens become electrically charged when in use. Electrically charged screens surfaces can attract dust particles. An Anti-S...
Page 30
Glossary The ARAS coating reflects only about 0.5% of the incident light. AGRAS (Anti-Glare anti-Reflection Anti-Static) coating. A combined anti-reflection, anti-glare, anti-static coating. Self-test...
Page 31
Glossary SOG (Synchronization On Green) A properly functioning color monitor requires five kinds of signals: horizontal sync pulse, vertical sync pulse, red color signal, green color signal and blue c...
Page 32
Glossary See rotation function. Trapezoid distortion See Geometrical distortion. TTL signal A TTL (Transistor-transistor-logic) signal is a digital signal level for controlling the screen colors. With...
Page 33
Glossary signaling. A hub consists of two portions: the Hub Controller and Hub Repeater. The repeater is a protocol-controlled switch between the upstream port and downstream ports. It also has hardwa...
Page 34
Glossary Vertical dot pitch See Dot pitch. Vertical scanning frequency Expressed in Hz, this is the number of fields written to the screen every second in interlaced mode. In non-interlaced mode verti...
Page 35
Glossary resolutions from 1280 x 1024 to 1600 x 1280, horizontal line frequencies up to 90 k Hz and bandwidths up to 200 MHz. VIS (Viewable Image Size) The real screen dimensions that users can see me...
Page 36
Download and Print Download and Print This page provides an option to read the manual in .pdf format. PDF files can be downloaded into your hard disk, then viewed and printed with Acrobat Reader or th...
